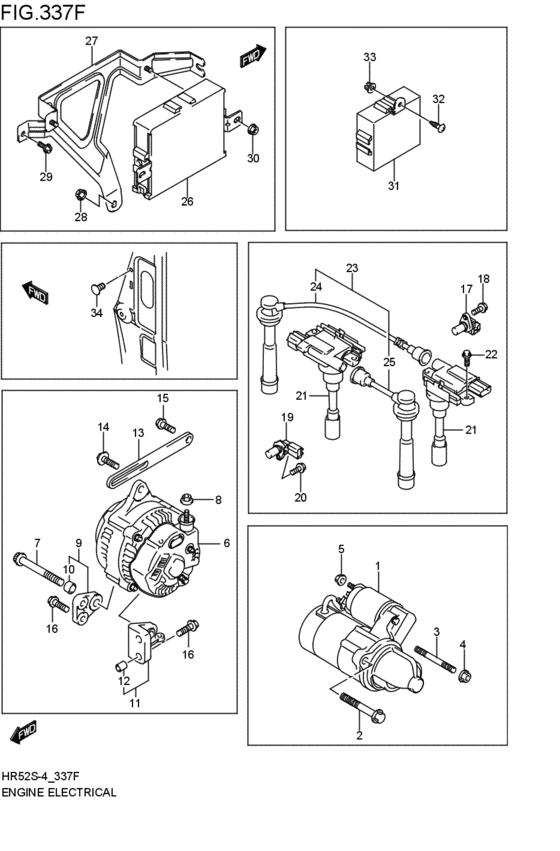

engine electrical (2006-05-01~) Diagram Suzuki OTHER MODELS
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 4WD
- grade
- D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-80G00-000 MOTOR ASSY,STARTING2006-05-01~ |
31100-80G00-000 |
US $732.16 |
||
|
2
|
2
01550-1060A-000 Bolt2006-05-01~ |
01550-1060A-000 |
from US $1.60 |
||
|
3
|
3
01421-1060A-000 BOLT,STUD2006-05-01~ |
01421-1060A-000 |
from US $1.68 |
||
|
4
|
4
08316-1010A-000 NUTNut, kick starter 2006-05-01~ |
08316-1010A-000 |
from US $0.76 |
||
|
5
|
5
08316-1008A-000 NUTNut, idle gear shaft 2006-05-01~ |
08316-1008A-000 |
from US $0.76 |
||
|
6
|
6
31400-80G10-000
Generator assy
2006-05-01~ |
31400-80G10-000 |
— | ||
| replacements | |||||
|
6
|
6
31400-80G11-000
GENERATOR ASSY
2006-05-01~ |
31400-80G11-000 |
— | ||
|
6
|
6
31400-80G12-000 Generator Assy2006-05-01~ |
31400-80G12-000 |
from US $593.30 |
||
|
7
|
7
07120-1085A-000 BOLT2006-05-01~ |
07120-1085A-000 |
US $24.70 |
||
|
8
|
8
08316-1006A-000 NUT2006-05-01~ |
08316-1006A-000 |
from US $0.80 |
||
|
9
|
9
11550-64J01-000 BRACKET,GENERATOR2006-05-01~ |
11550-64J01-000 |
US $20.98 |
||
|
10
|
10
11555-60G01-000 BUSH2006-05-01~ |
11555-60G01-000 |
US $3.68 |
||
|
11
|
11
11550-54G10-000 BRACKET ASSY,GENERATOR NO.22006-05-01~ |
11550-54G10-000 |
US $31.20 |
||
|
12
|
12
04211-11169-000 PINPin, dowel 2006-05-01~ |
04211-11169-000 |
from US $1.06 |
||
|
13
|
13
11561-69G01-000 ARM,GENERATOR ADJUST2006-05-01~ |
11561-69G01-000 |
US $6.59 |
||
|
14
|
14
09118-08107-000 BOLT(8X25)2006-05-01~ |
09118-08107-000 |
US $1.12 |
||
|
15
|
15
01550-0820A-000 BOLTBolt, funnel bracket 2006-05-01~ |
01550-0820A-000 |
from US $0.96 |
||
|
16
|
16
01550-0830A-000 BOLTBolt, mount oil seal cover 2006-05-01~ |
01550-0830A-000 |
from US $1.12 |
||
|
17
|
17
33220-63J10-000 SENSOR ASSY,POSITION2006-05-01~ |
33220-63J10-000 |
US $79.12 |
||
| replacement | |||||
|
17
|
17
33220-50M30-000 SENSOR ASSY,CAM POSITION2006-05-01~ |
33220-50M30-000 |
from US $75.60 |
||
|
18
|
18
09103-06283-000 BOLT(6X16)2006-05-01~ |
09103-06283-000 |
from US $4.37 |
||
|
19
|
19
33220-63J00-000
SENSOR ASSY,POSITION
2006-05-01~ |
33220-63J00-000 |
— | ||
| replacement | |||||
|
19
|
19
33220-64L20-000 SENSOR ASSY, CRANK POSITION2006-05-01~ |
33220-64L20-000 |
from US $73.62 |
||
|
20
|
20
09103-06240-000 BOLT(6X16)2006-05-01~ |
09103-06240-000 |
from US $1.04 |
||
|
21
|
21
33400-65G01-000
Coil assy,ignition
2006-05-01~ |
33400-65G01-000 |
— | ||
| replacement | |||||
|
21
|
21
33400-65G02-000 COIL ASSY,IGNITION DENSO2006-05-01~ |
33400-65G02-000 |
from US $173.68 |
||
|
22
|
22
01550-0620A-000 BOLT2006-05-01~ |
01550-0620A-000 |
from US $0.76 |
||
|
23
|
23
33705-80G00-000 CORD SET,HIGH TENSION2006-05-01~ |
33705-80G00-000 |
from US $42.21 |
||
|
24
|
24
33730-80G00-000 CORD,HIGH TENSION NO.22006-05-01~ |
33730-80G00-000 |
from US $22.10 |
||
|
25
|
25
33740-80G00-000 CORD,HIGH TENSION NO.32006-05-01~ |
33740-80G00-000 |
from US $21.28 |
||
|
26
|
26
33920-70H40-000
コントローラアッシ,インジェクション/エアコン
2006-05-01~ |
33920-70H40-000 |
— | ||
|
27
|
27
33924-70H00-000
BRACKET,EPI CONT
2006-05-01~ |
33924-70H00-000 |
— | ||
|
28
|
28
09159-06076-000 NUT2006-05-01~ |
09159-06076-000 |
from US $1.28 |
||
|
29
|
29
02162-0612A-000 SCREWBolt, bracket 2006-05-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
30
|
30
08316-1006A-000 NUT2006-05-01~ |
08316-1006A-000 |
from US $0.80 |
||
|
31
|
31
38885-70H10-000
コントローラアッシ,EMCD
4WD; 2006-05-01~ |
38885-70H10-000 |
— | ||
|
32
|
32
03241-0616A-000 SCREW4WD; 2006-05-01~ |
03241-0616A-000 |
US $7.70 |
||
|
33
|
33
09148-06007-000 NUT4WD; 2006-05-01~ |
09148-06007-000 |
from US $0.86 |
||
|
34
|
34
09250-05011-5PK CAP(OD:12)Plug ブラック; 2006-05-01~ |
09250-05011-5PK |
from US $2.21 |
||
