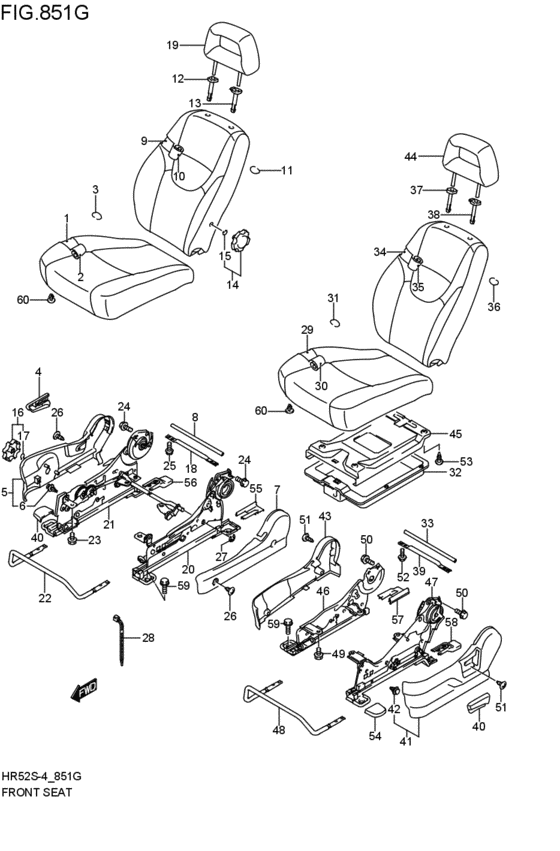

front seat (2006-05-01~) Diagram Suzuki OTHER MODELS
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 4WD
- grade
- D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
85105-70H00-000
CUSHION S/ASSY,FR
2006-05-01~ |
85105-70H00-000 |
— | ||
|
2
|
2
85180-70HD0-EAF
トリム,フロントクッション
レッド/ブラック/グレー; 4WD:D; 2006-05-01~ |
85180-70HD0-EAF |
— | ||
| replacement | |||||
|
2
|
2
85180-70HD1-EAF
トリム,フロントクッション
レッド/ブラック/グレー; 4WD:D; 2006-05-01~ |
85180-70HD1-EAF |
— | ||
|
3
|
3
09387-19001-000 RING2006-05-01~ |
09387-19001-000 |
US $1.76 |
||
|
4
|
4
85211-75H00-P4Z KNOB,RECL,Rグレ-; 2006-05-01~ |
85211-75H00-P4Z |
US $4.23 |
||
|
5
|
5
85220-70H00-P4Z
COVER,RECL OUTSIDE,R
グレ-; 2006-05-01~ |
85220-70H00-P4Z |
— | ||
|
6
|
6
85225-74G00-P4Z CLIP,グレ-; 2006-05-01~ |
85225-74G00-P4Z |
US $2.36 |
||
|
7
|
7
85241-80G00-P4Z COVER,RECL INSIDE,Rグレ-; 2006-05-01~ |
85241-80G00-P4Z |
US $39.01 |
||
|
8
|
8
85250-80G00-000
ROD,FR ADJUSTER
2006-05-01~ |
85250-80G00-000 |
— | ||
|
9
|
9
85305-70H00-000
BACK S/ASSY,FR
2006-05-01~2006-11-01 |
85305-70H00-000 |
— | ||
|
9
|
9
85305-70H50-000
バックアッシ,フロント
2006-11-01~ |
85305-70H50-000 |
— | ||
|
10
|
10
85380-70HA0-EAF
トリム,フロントバック
レッド/ブラック/グレー; D; 2006-05-01~ |
85380-70HA0-EAF |
— | ||
|
11
|
11
09387-19001-000 RING2006-05-01~ |
09387-19001-000 |
US $1.76 |
||
|
12
|
12
85341-81A00-P4Z GUIDE,HEADRESTRAINTグレ-; 2006-05-01~ |
85341-81A00-P4Z |
US $6.04 |
||
|
13
|
13
85840-81A10-P4Z GUIDE,HEADRESTRAINTグレ-; 2006-05-01~ |
85840-81A10-P4Z |
US $11.63 |
||
|
14
|
14
86170-80G00-P4Z KNOBグレ-; 2006-05-01~ |
86170-80G00-P4Z |
US $11.74 |
||
|
15
|
15
86172-80G00-000 SNAP,LUMBER KNOB2006-05-01~ |
86172-80G00-000 |
US $3.31 |
||
|
16
|
16
86170-80G00-P4Z KNOBグレ-; 2006-05-01~ |
86170-80G00-P4Z |
US $11.74 |
||
|
17
|
17
86172-80G00-000 SNAP,LUMBER KNOB2006-05-01~ |
86172-80G00-000 |
US $3.31 |
||
|
18
|
18
85771-78F00-000
MEMBER,FR SEAT
2006-05-01~ |
85771-78F00-000 |
— | ||
|
19
|
19
86401-73H00-U6S
ヘッドレストレイントアッシ(レッド)
レッド; D; 2006-05-01~ |
86401-73H00-U6S |
— | ||
| replacement | |||||
|
19
|
19
86401-73H01-U6S
ヘッドレストレイントアッシ(レッド)
レッド; D; 2006-05-01~ |
86401-73H01-U6S |
— | ||
|
20
|
20
86601-70H50-000 ADJUSTER ASSY,FR INSIDE,R2006-05-01~ |
86601-70H50-000 |
US $288.88 |
||
|
21
|
21
86603-70H50-000
ADJUSTER ASSY,FR OUTSIDE,R
2006-05-01~ |
86603-70H50-000 |
— | ||
|
22
|
22
86691-80G00-000
HANDLE,FR ADJ,R
2006-05-01~ |
86691-80G00-000 |
— | ||
|
23
|
23
01550-0812A-000 BOLT2006-05-01~ |
01550-0812A-000 |
from US $0.91 |
||
|
24
|
24
01550-1020A-000 BOLTBolt, bal sprocket 2006-05-01~ |
01550-1020A-000 |
from US $0.96 |
||
|
25
|
25
01550-0812A-000 BOLT2006-05-01~ |
01550-0812A-000 |
from US $0.91 |
||
|
26
|
26
03242-0512A-000
スクリュ
2006-05-01~ |
03242-0512A-000 |
— | ||
| replacement | |||||
|
26
|
26
03241-0512A-000 SCREW2006-05-01~ |
03241-0512A-000 |
from US $0.68 |
||
|
27
|
27
08332-1112A-000 E RING2006-05-01~ |
08332-1112A-000 |
from US $0.96 |
||
|
28
|
28
09407-11402-000 CLAMP(L:90)4WD; 2006-05-01~ |
09407-11402-000 |
from US $1.75 |
||
| replacement | |||||
|
28
|
28
09407-17402-000 CLAMP4WD; 2006-05-01~ |
09407-17402-000 |
from US $1.98 |
||
|
29
|
29
85105-70H10-000
CUSHION S/ASSY,FR
2006-05-01~ |
85105-70H10-000 |
— | ||
|
30
|
30
85180-70HA0-EAF
トリム,フロントクッション
レッド/ブラック/グレー; D; 2006-05-01~ |
85180-70HA0-EAF |
— | ||
|
31
|
31
09387-19001-000 RING2006-05-01~ |
09387-19001-000 |
US $1.76 |
||
|
32
|
32
85150-80G10-000 TRAY ASSY,FR UNDER2006-05-01~ |
85150-80G10-000 |
US $79.20 |
||
|
33
|
33
85250-80G00-000
ROD,FR ADJUSTER
2006-05-01~ |
85250-80G00-000 |
— | ||
|
34
|
34
85305-70H00-000
BACK S/ASSY,FR
2006-05-01~2006-11-01 |
85305-70H00-000 |
— | ||
|
34
|
34
85305-70H40-000
バックアッシ,フロント
2006-11-01~ |
85305-70H40-000 |
— | ||
|
35
|
35
85380-70HB0-EAF
トリム,フロントバック
レッド/ブラック/グレー; D; 2006-05-01~ |
85380-70HB0-EAF |
— | ||
|
36
|
36
09387-19001-000 RING2006-05-01~ |
09387-19001-000 |
US $1.76 |
||
|
37
|
37
85341-81A00-P4Z GUIDE,HEADRESTRAINTグレ-; 2006-05-01~ |
85341-81A00-P4Z |
US $6.04 |
||
|
38
|
38
85840-81A10-P4Z GUIDE,HEADRESTRAINTグレ-; 2006-05-01~ |
85840-81A10-P4Z |
US $11.63 |
||
|
39
|
39
85771-78F10-000 MEMBER,FR SEAT2006-05-01~ |
85771-78F10-000 |
US $16.23 |
||
|
40
|
40
85711-75H00-P4Z KNOB,RECL,Lグレ-; 2006-05-01~ |
85711-75H00-P4Z |
US $4.23 |
||
|
41
|
41
85720-74G10-P4Z
Cover,recl outside,l
グレ-; 2006-05-01~ |
85720-74G10-P4Z |
— | ||
| replacement | |||||
|
41
|
41
85720-74G11-P4Z COVER,RECL OUTSIDE,Lグレ-; 2006-05-01~ |
85720-74G11-P4Z |
US $42.69 |
||
|
42
|
42
85225-74G00-P4Z CLIP,グレ-; 2006-05-01~ |
85225-74G00-P4Z |
US $2.36 |
||
|
43
|
43
85741-80G00-P4Z COVER,RECL INSIDE,Lグレ-; 2006-05-01~ |
85741-80G00-P4Z |
US $39.01 |
||
|
44
|
44
86401-73H00-U6N
ヘッドレストレイントアッシ(レッド)
レッド; 2006-05-01~ |
86401-73H00-U6N |
— | ||
| replacement | |||||
|
44
|
44
86401-73H01-U6N
ヘッドレストレイントアッシ(レッド)
レッド; 2006-05-01~ |
86401-73H01-U6N |
— | ||
|
44
|
44
86401-73H00-U6S
ヘッドレストレイントアッシ(レッド)
レッド; 2006-05-01~ |
86401-73H00-U6S |
— | ||
| replacement | |||||
|
44
|
44
86401-73H01-U6S
ヘッドレストレイントアッシ(レッド)
レッド; 2006-05-01~ |
86401-73H01-U6S |
— | ||
|
45
|
45
86521-65DA0-000 BRACKET,UNDER TRAY2006-05-01~ |
86521-65DA0-000 |
US $91.20 |
||
|
46
|
46
86602-80G00-000 ADJUSTER ASSY,FR INSIDE,L2006-05-01~ |
86602-80G00-000 |
US $233.68 |
||
|
47
|
47
86604-80G00-000
ADJUSTER ASSY,FR OUTSIDE,L
2006-05-01~ |
86604-80G00-000 |
— | ||
|
48
|
48
86891-80G00-000
HANDLE,FR ADJUSTER,L
2006-05-01~ |
86891-80G00-000 |
— | ||
|
49
|
49
01550-0812A-000 BOLT2006-05-01~ |
01550-0812A-000 |
from US $0.91 |
||
|
50
|
50
01550-1020A-000 BOLTBolt, bal sprocket 2006-05-01~ |
01550-1020A-000 |
from US $0.96 |
||
|
51
|
51
03242-0512A-000
スクリュ
2006-05-01~ |
03242-0512A-000 |
— | ||
| replacement | |||||
|
51
|
51
03241-0512A-000 SCREW2006-05-01~ |
03241-0512A-000 |
from US $0.68 |
||
|
52
|
52
01550-0812A-000 BOLT2006-05-01~ |
01550-0812A-000 |
from US $0.91 |
||
|
53
|
53
03242-0512A-000
スクリュ
2006-05-01~ |
03242-0512A-000 |
— | ||
| replacement | |||||
|
53
|
53
03241-0512A-000 SCREW2006-05-01~ |
03241-0512A-000 |
from US $0.68 |
||
|
54
|
54
85492-76G00-P4Z COVER,FR OUTSIDEグレ-; 2006-05-01~ |
85492-76G00-P4Z |
US $4.75 |
||
|
55
|
55
85495-73H00-P4Z
Cover,rr inside,r
グレ-; 2006-05-01~ |
85495-73H00-P4Z |
— | ||
| replacement | |||||
|
55
|
55
85495-73H10-P4Z COVER,RR INSIDE,Rグレ-; 2006-05-01~ |
85495-73H10-P4Z |
US $7.76 |
||
|
56
|
56
85496-76G00-P4Z COVER,RR OUTSIDEグレ-; 2006-05-01~ |
85496-76G00-P4Z |
US $5.78 |
||
|
57
|
57
85995-73H00-P4Z
Cover,rr inside,l
グレ-; 2006-05-01~ |
85995-73H00-P4Z |
— | ||
| replacement | |||||
|
57
|
57
85995-73H10-P4Z COVER,RR INSIDE,Lグレ-; 2006-05-01~ |
85995-73H10-P4Z |
US $7.76 |
||
|
58
|
58
85496-76G00-P4Z COVER,RR OUTSIDEグレ-; 2006-05-01~ |
85496-76G00-P4Z |
US $5.78 |
||
|
59
|
59
01551-1025A-000 Bolt2006-05-01~ |
01551-1025A-000 |
US $1.12 |
||
|
60
|
60
85189-70H00-000
CLIP,FR CUSHION TRIM
2006-05-01~ |
85189-70H00-000 |
— | ||
