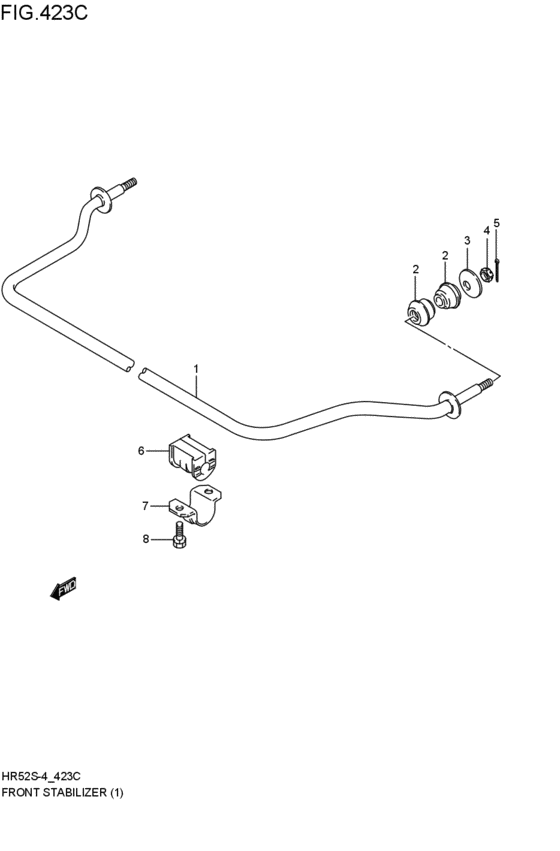

front stabilizer (4WD; 2006-05-01~) Diagram Suzuki OTHER MODELS
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 4WD
- grade
- D
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42310-70H00-000 BAR,FR STABILIZER4WD; 2006-05-01~ |
42310-70H00-000 |
US $220.80 |
||
|
2
|
2
42451-76G00-000 BUSHING,STAB BAR MOUNT4WD; 2006-05-01~ |
42451-76G00-000 |
from US $7.20 |
||
|
3
|
3
09164-12017-000 WASHER4WD; 2006-05-01~ |
09164-12017-000 |
US $1.28 |
||
|
4
|
4
08314-4012A-000 NUT4WD; 2006-05-01~ |
08314-4012A-000 |
from US $0.95 |
||
|
5
|
5
04111-3020A-000 PIN4WD; 2006-05-01~ |
04111-3020A-000 |
from US $0.61 |
||
|
6
|
6
42431-70H00-000 MOUNT,STAB BAR4WD; 2006-05-01~ |
42431-70H00-000 |
from US $7.52 |
||
|
7
|
7
42441-70H00-000 BRACKET,STABILIZER BAR MOUNT4WD; 2006-05-01~ |
42441-70H00-000 |
US $8.35 |
||
|
8
|
8
09112-10003-000 BOLT(10X30)4WD; 2006-05-01~ |
09112-10003-000 |
US $26.50 |
