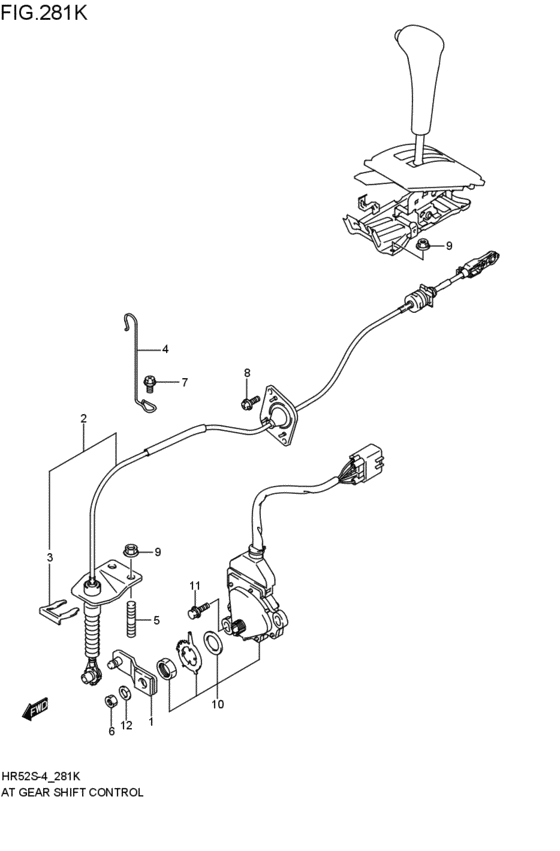

gearlever control (2006-05-01~) Diagram Suzuki OTHER MODELS
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 4WD
- grade
- D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25971-70H10-000 LEVER,MANUAL SEL2006-05-01~ |
25971-70H10-000 |
US $14.72 |
||
|
2
|
2
28210-70H10-000
CABLE ASSY,SELECT
2006-05-01~ |
28210-70H10-000 |
— | ||
|
3
|
3
09383-19001-000 E RINGClip 2006-05-01~ |
09383-19001-000 |
from US $2.72 |
||
|
4
|
4
28225-79C11-000 CLAMP,SELECT CABLE2006-05-01~ |
28225-79C11-000 |
US $2.72 |
||
|
5
|
5
09108-08257-000 BOLT,STUD2006-05-01~ |
09108-08257-000 |
US $18.40 |
||
|
6
|
6
25996-79C10-000
ナット,マニュアルセレクトレバー
2006-05-01~ |
25996-79C10-000 |
— | ||
| replacement | |||||
|
6
|
6
08310-0008A-000 NUTNut, bead stopper 2006-05-01~ |
08310-0008A-000 |
from US $0.76 |
||
|
7
|
7
02162-0612A-000 SCREWBolt, bracket 2006-05-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
8
|
8
02162-0620C-000 SCREW2006-05-01~ |
02162-0620C-000 |
from US $0.80 |
||
|
9
|
9
08316-1008A-000 NUTNut, idle gear shaft 2006-05-01~ |
08316-1008A-000 |
from US $0.76 |
||
|
10
|
10
37720-79C10-000 SWITCH ASSY,SHIFT2006-05-01~ |
37720-79C10-000 |
US $203.20 |
||
|
11
|
11
24896-79C10-000 BOLT,SHIFT SWITCH2006-05-01~ |
24896-79C10-000 |
US $1.73 |
||
|
12
|
12
25997-60G10-000 WASHER,MANUAL SELECT LEVER2006-05-01~ |
25997-60G10-000 |
US $3.20 |
||
