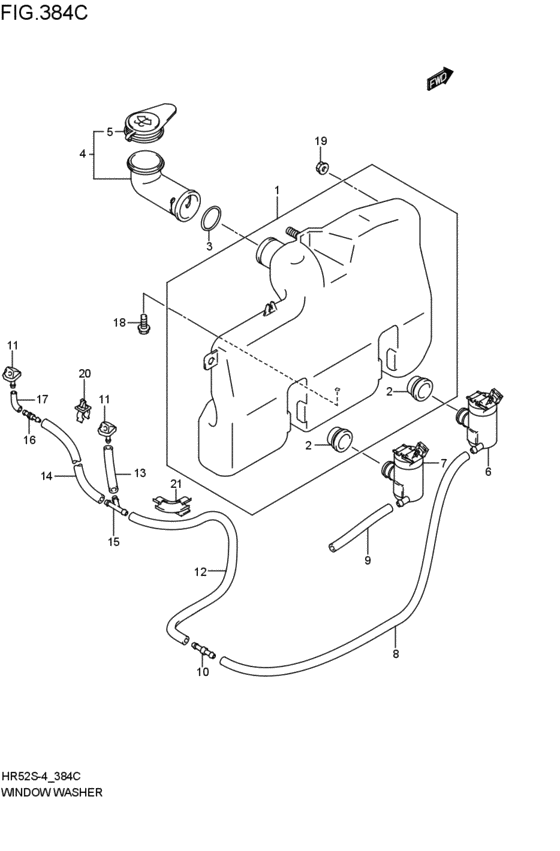

ウインドウオッシャ (2006-05-01~) Diagram Suzuki OTHER MODELS
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 4WD
- grade
- D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38450-80G50-000 TANK ASSY,WASHER2006-05-01~ |
38450-80G50-000 |
US $75.07 |
||
|
2
|
2
38453-75000-000 GROMMET2006-05-01~ |
38453-75000-000 |
US $1.60 |
||
|
3
|
3
38454-80G00-000 O-RING,INLET PIPE2006-05-01~ |
38454-80G00-000 |
US $3.28 |
||
|
4
|
4
38402-80G10-000 INLET&CAP SET,WASHER2006-05-01~ |
38402-80G10-000 |
US $10.05 |
||
|
5
|
5
38452-76G00-000 CAP,WASHER TANK2006-05-01~ |
38452-76G00-000 |
US $2.58 |
||
|
6
|
6
38410-66113-000 PUMP ASSY,WASHERPump assy, washer フロント ウオッシャ; 2006-05-01~ |
38410-66113-000 |
from US $59.20 |
||
|
7
|
7
38410-66113-000 PUMP ASSY,WASHERPump assy, washer リヤ ウオッシャ; 2006-05-01~ |
38410-66113-000 |
from US $59.20 |
||
|
8
|
8
38491-61A00-000 HOSE,WASHER L:1300Hose, washer (l:1300->80) フロント,L:1300>400; 2006-05-01~ |
38491-61A00-000 |
US $5.12 |
||
|
9
|
9
38491-61A00-000 HOSE,WASHER L:1300Hose, washer (l:1300->80) リヤ,L:1300>70; 2006-05-01~ |
38491-61A00-000 |
US $5.12 |
||
|
10
|
10
38496-56B00-000 CONNECTOR2006-05-01~ |
38496-56B00-000 |
from US $1.60 |
||
|
11
|
11
38480-80G10-000 NOZZLE,WASHER2006-05-01~ |
38480-80G10-000 |
from US $11.56 |
||
|
12
|
12
38459-50J00-000 HOSE,WASHER L:810L:810>640; 2006-05-01~ |
38459-50J00-000 |
US $14.40 |
||
|
13
|
13
38459-50J00-000 HOSE,WASHER L:810L:810>80; 2006-05-01~ |
38459-50J00-000 |
US $14.40 |
||
|
14
|
14
38459-50J00-000 HOSE,WASHER L:810L:810>620; 2006-05-01~ |
38459-50J00-000 |
US $14.40 |
||
|
15
|
15
38496-71311-000 CONNECTOR,THREE WAY2006-05-01~ |
38496-71311-000 |
US $4.16 |
||
|
16
|
16
38833-79501-000 VALVE,WASHER HOSE2006-05-01~ |
38833-79501-000 |
from US $3.17 |
||
|
17
|
17
38454-71B10-000 JOINT,ELBOW2006-05-01~ |
38454-71B10-000 |
from US $3.94 |
||
|
18
|
18
02162-0612A-000 SCREWBolt, bracket 2006-05-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
19
|
19
08316-1006A-000 NUT2006-05-01~ |
08316-1006A-000 |
from US $0.80 |
||
|
20
|
20
09403-07330-000 CLAMP2006-05-01~ |
09403-07330-000 |
US $14.40 |
||
|
21
|
21
34935-75F10-000 CLAMP,WASHER HOSE2006-05-01~ |
34935-75F10-000 |
US $1.68 |
