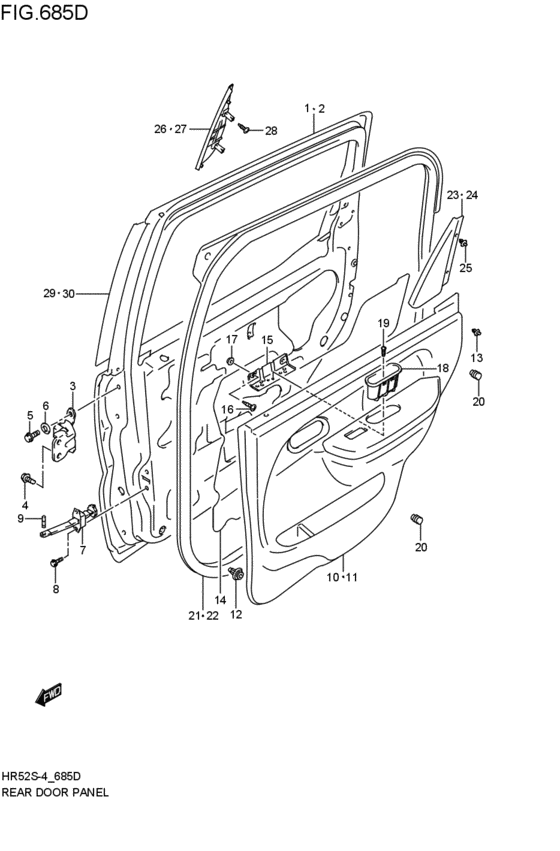

rear door panel (2006-05-01~) Diagram Suzuki OTHER MODELS
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 4WD
- grade
- D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
68003-83G00-000 PANEL ASSY,REAR DOOR,R2006-05-01~ |
68003-83G00-000 |
US $542.08 |
||
|
2
|
2
68004-81G01-000 PANEL ASSY,REAR DOOR,L2006-05-01~ |
68004-81G01-000 |
US $542.08 |
||
|
3
|
3
69410-76F00-000 HINGE,RR DOOR2006-05-01~ |
69410-76F00-000 |
US $40.11 |
||
|
4
|
4
01551-0820A-000 BOLT2006-05-01~ |
01551-0820A-000 |
from US $0.96 |
||
|
5
|
5
09103-08389-000 BOLT(8X24)2006-05-01~ |
09103-08389-000 |
US $17.30 |
||
|
6
|
6
69480-65D00-000
Washer
2006-05-01~ |
69480-65D00-000 |
— | ||
|
7
|
7
81830-75G00-000 STOP,REAR DOOR OPEN2006-05-01~ |
81830-75G00-000 |
from US $28.70 |
||
|
8
|
8
09122-86004-000 SCREW(6X20)2006-05-01~ |
09122-86004-000 |
US $11.80 |
||
|
9
|
9
81831-70B00-000 PIN,DOOR OPEN STOPPER BODY2006-05-01~ |
81831-70B00-000 |
US $1.60 |
||
|
10
|
10
83730-83G10-DVK
TRIM,REAR DOOR,R(RED)
レッド/グレー; D; 2006-05-01~ |
83730-83G10-DVK |
— | ||
|
11
|
11
83740-83G10-DVK
TRIM,REAR DOOR,L(RED)
レッド/グレー; D; 2006-05-01~ |
83740-83G10-DVK |
— | ||
|
12
|
12
09409-08320-000 CLIP2006-05-01~ |
09409-08320-000 |
from US $1.15 |
||
|
13
|
13
09409-06314-P4Z CLIP(GRAY)グレ-; 2006-05-01~ |
09409-06314-P4Z |
US $1.60 |
||
|
14
|
14
83911-60X51-000
Cover, door sealing (600x1200)
2006-05-01~ |
83911-60X51-000 |
— | ||
| replacement | |||||
|
14
|
14
83911-60X52-000 COVER,DR SEALING2006-05-01~ |
83911-60X52-000 |
US $6.06 |
||
|
15
|
15
83751-70G50-000
Bracket, door trim
2006-05-01~ |
83751-70G50-000 |
— | ||
| replacement | |||||
|
15
|
15
83751-70G5V-000 BRACKET,DR TRIM2006-05-01~ |
83751-70G5V-000 |
US $6.73 |
||
|
16
|
16
03241-0612A-000 SCREW2006-05-01~ |
03241-0612A-000 |
US $0.80 |
||
|
17
|
17
09148-06007-000 NUT2006-05-01~ |
09148-06007-000 |
from US $0.86 |
||
|
18
|
18
83799-75H00-P4Z HANDLE,SIDE DOOR TRIMグレ-; 2006-05-01~ |
83799-75H00-P4Z |
US $9.64 |
||
|
19
|
19
09132-05051-000
スクリュ,5X12
2006-05-01~ |
09132-05051-000 |
— | ||
| replacement | |||||
|
19
|
19
09132-05058-000 SCREW(5X12)2006-05-01~ |
09132-05058-000 |
US $12.50 |
||
|
20
|
20
82711-56B00-000 STOPPER,FR DOORStopper, fr dr lower 2006-05-01~ |
82711-56B00-000 |
US $2.88 |
||
|
21
|
21
84661-75G01-000 WEATHERSTRIP,RR DR OPNG,R2006-05-01~ |
84661-75G01-000 |
US $73.97 |
||
|
22
|
22
84671-75G01-000 WEATHERSTRIP,RR DR OPNG,L2006-05-01~ |
84671-75G01-000 |
US $73.97 |
||
|
23
|
23
83955-75G00-5PK GARNISH,RR DR RR INR,RGarnish, rr dr rr inner rh (black) ブラック; 2006-05-01~ |
83955-75G00-5PK |
US $10.78 |
||
|
24
|
24
83965-75G00-5PK GARNISH,RR DR RR INR,LGarnish, rr dr rr inner lh (black) ブラック; 2006-05-01~ |
83965-75G00-5PK |
US $10.78 |
||
|
25
|
25
09409-06314-5PK CLIP(BLACK)ブラック; 2006-05-01~ |
09409-06314-5PK |
from US $1.46 |
||
|
26
|
26
83971-75G00-000 GARNISH,RR DR RR OTR,R2006-05-01~ |
83971-75G00-000 |
US $16.38 |
||
|
27
|
27
83972-75G00-000 GARNISH,RR DR RR OTR,L2006-05-01~ |
83972-75G00-000 |
US $39.20 |
||
|
28
|
28
03541-0512A-000 SCREW2006-05-01~ |
03541-0512A-000 |
from US $0.65 |
||
|
29
|
29
83931-75G00-0CB TAPE,RR DOOR OUTER,Rブラック; 2006-05-01~ |
83931-75G00-0CB |
US $24.84 |
||
|
30
|
30
83932-75G00-0CB TAPE,RR DOOR OUTER,Lブラック; 2006-05-01~ |
83932-75G00-0CB |
US $24.84 |
||
