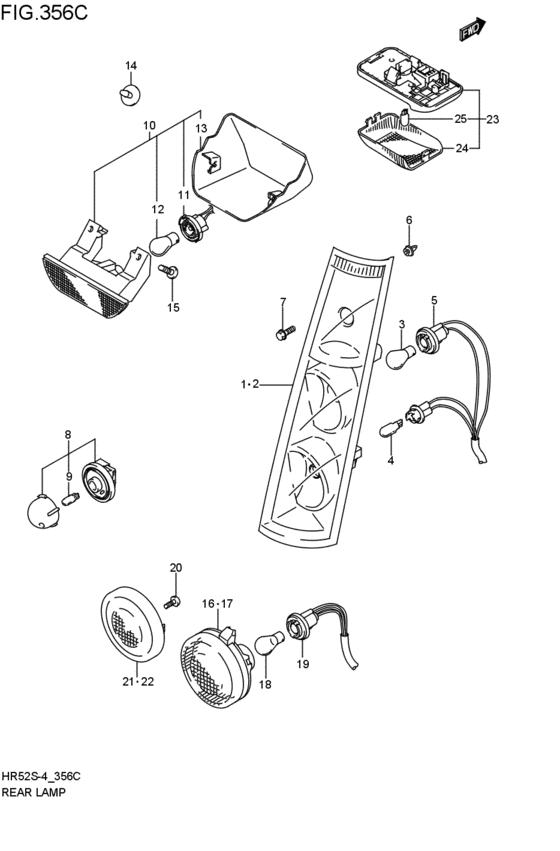

rear lamp (2006-05-01~) Diagram Suzuki OTHER MODELS
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 4WD
- grade
- D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35650-70H10-000 LAMP UNIT,RR COMB,R2006-05-01~ |
35650-70H10-000 |
US $276 |
||
|
2
|
2
35670-70H10-000 LAMP UNIT,RR COMB,L2006-05-01~ |
35670-70H10-000 |
US $543.09 |
||
|
3
|
3
09471-12186-000 BULB(12V21W,AMBER)アンバー; 2006-05-01~ |
09471-12186-000 |
from US $5.65 |
||
|
4
|
4
09471-12146-000 BULB(12V16W)Bulb (12v18w) 2006-05-01~ |
09471-12146-000 |
from US $3.36 |
||
|
5
|
5
35658-70H00-000 SOCKET&CORD ASSY2006-05-01~ |
35658-70H00-000 |
US $35.33 |
||
|
6
|
6
71812-78F00-000 CLIP2006-05-01~ |
71812-78F00-000 |
from US $1.53 |
||
|
7
|
7
02162-0616C-000 SCREW2006-05-01~ |
02162-0616C-000 |
US $0.80 |
||
| replacement | |||||
|
7
|
7
02162-0616B-000 SCREWBolt, adjust 2006-05-01~ |
02162-0616B-000 |
from US $0.80 |
||
|
8
|
8
35910-75F30-000
Lamp assy,license
2006-05-01~ |
35910-75F30-000 |
— | ||
| replacement | |||||
|
8
|
8
35910-75F31-000 Lamp assy,license2006-05-01~ |
35910-75F31-000 |
US $14.65 |
||
|
9
|
9
09471-12081-000
Bulb (12v,5w)
TOKAI DENSO; 2006-05-01~ |
09471-12081-000 |
— | ||
| replacement | |||||
|
9
|
9
09471-12216-000 BULB(12V5W)Bulb (12v5w) TOKAI DENSO; 2006-05-01~ |
09471-12216-000 |
from US $2.84 |
||
|
10
|
10
35820-82H10-000
ランプユニット,ハイマウントストップ
D; 2006-05-01~ |
35820-82H10-000 |
— | ||
| replacement | |||||
|
10
|
10
35820-82H12-000
New Genuine Part
D; 2006-05-01~ |
35820-82H12-000 |
— | ||
|
11
|
11
35818-73H10-000
Socket& cord assy
2006-05-01~ |
35818-73H10-000 |
— | ||
| replacement | |||||
|
11
|
11
35818-73H11-000 SOCKET&CORD ASSY2006-05-01~ |
35818-73H11-000 |
US $11.52 |
||
|
12
|
12
09471-12045-000 BULB(12V21W)STANLEY,A4957E; 2006-05-01~ |
09471-12045-000 |
from US $2.54 |
||
|
13
|
13
35821-73H01-P4Z COVER,HIGH MOUNT STOP LAMPグレ-; 2006-05-01~ |
35821-73H01-P4Z |
US $37.54 |
||
|
14
|
14
09250-05011-5PK CAP(OD:12)Plug ブラック; 2006-05-01~ |
09250-05011-5PK |
from US $2.21 |
||
|
15
|
15
09122-66003-000
スクリュ,6X16
2006-05-01~ |
09122-66003-000 |
— | ||
| replacement | |||||
|
15
|
15
02142-0616A-000 SCREW2006-05-01~ |
02142-0616A-000 |
from US $0.76 |
||
|
16
|
16
35710-70H10-000 LAMP UNIT,RR TAIL/STOP,R2006-05-01~ |
35710-70H10-000 |
US $86.11 |
||
|
17
|
17
35750-70H10-000 LAMP UNIT,RR TAIL/STOP,L2006-05-01~ |
35750-70H10-000 |
US $86.11 |
||
|
18
|
18
09471-12083-000 BULB(12V21/5W)STANLEY,49641A; 2006-05-01~ |
09471-12083-000 |
from US $4.75 |
||
| replacement | |||||
|
18
|
18
09471-12128-000 BULB(12V21/5W,BF141-49642A)STANLEY,49641A; 2006-05-01~ |
09471-12128-000 |
from US $7.20 |
||
|
19
|
19
35718-70H00-000
ソケット/コードアッシ
2006-05-01~ |
35718-70H00-000 |
— | ||
| replacement | |||||
|
19
|
19
35718-70H02-000 SOCKET&CORD ASSY2006-05-01~ |
35718-70H02-000 |
US $34.78 |
||
|
20
|
20
03541-0512A-000 SCREW2006-05-01~ |
03541-0512A-000 |
from US $0.65 |
||
|
21
|
21
35950-70H01-000 REFLECTOR ASSY,REAR R2006-05-01~ |
35950-70H01-000 |
US $72.13 |
||
|
22
|
22
35970-70H01-000 REFLECTOR ASSY,REAR,L2006-05-01~ |
35970-70H01-000 |
US $72.13 |
||
|
23
|
23
36210-74F02-6GS LAMP ASSY,RR ROOMグレ-; 2006-05-01~ |
36210-74F02-6GS |
from US $20.97 |
||
|
24
|
24
36212-74F00-000 LENS,ROOM LAMP2006-05-01~ |
36212-74F00-000 |
US $4.05 |
||
|
25
|
25
09471-12081-000
Bulb (12v,5w)
TOKAI DENSO; 2006-05-01~ |
09471-12081-000 |
— | ||
| replacement | |||||
|
25
|
25
09471-12216-000 BULB(12V5W)Bulb (12v5w) TOKAI DENSO; 2006-05-01~ |
09471-12216-000 |
from US $2.84 |
||
