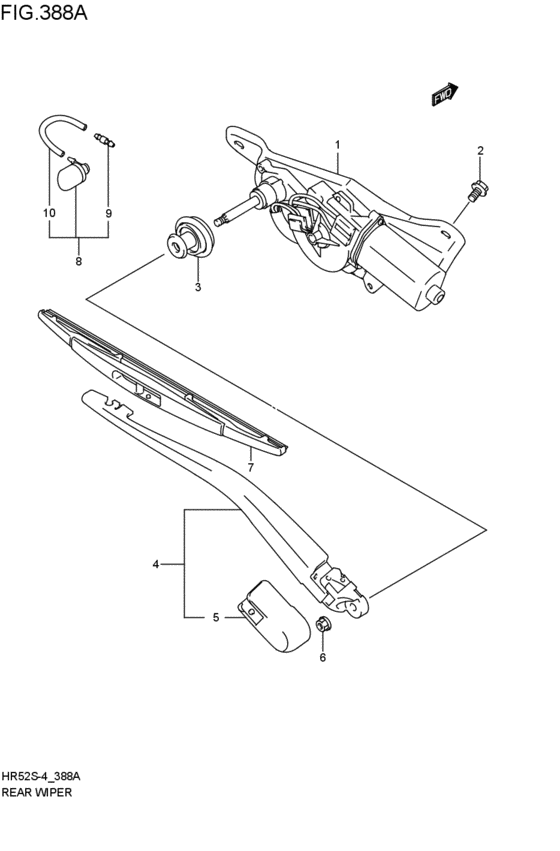

rear wind windshield wiper / washer (2006-05-01~) Diagram Suzuki OTHER MODELS
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 4WD
- grade
- D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38810-80G00-000 WIPER ASSY,RR WINDOW2006-05-01~ |
38810-80G00-000 |
US $264.96 |
||
|
2
|
2
02162-06123-000
Bolt (6x12)
2006-05-01~ |
02162-06123-000 |
— | ||
| replacements | |||||
|
2
|
2
02162-0612B-000 SCREWBolt 2006-05-01~ |
02162-0612B-000 |
from US $0.80 |
||
|
2
|
2
02162-0612A-000 SCREWBolt, bracket 2006-05-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
3
|
3
38274-81A00-000 CAP,WIPER PIVOT2006-05-01~ |
38274-81A00-000 |
from US $3.67 |
||
|
4
|
4
38821-80G10-000 ARM ASSY,RR WIPER2006-05-01~ |
38821-80G10-000 |
US $41.95 |
||
|
5
|
5
38315-80G10-000 COVER,ARM HEAD2006-05-01~ |
38315-80G10-000 |
US $4.86 |
||
|
6
|
6
08316-1006A-000 NUT2006-05-01~ |
08316-1006A-000 |
from US $0.80 |
||
|
7
|
7
38340-80GA0-000 BLADE ASSY,RR WIPER2006-05-01~ |
38340-80GA0-000 |
US $19.20 |
||
|
8
|
8
38840-76G00-000 NOZZLE ASSY,RR WASHER2006-05-01~ |
38840-76G00-000 |
US $12.44 |
||
|
9
|
9
38496-61A00-000 VALVE,CHECK2006-05-01~ |
38496-61A00-000 |
from US $1.71 |
||
|
10
|
10
38459-50J00-000 HOSE,WASHER L:810L:810>130; 2006-05-01~ |
38459-50J00-000 |
US $14.40 |
||
