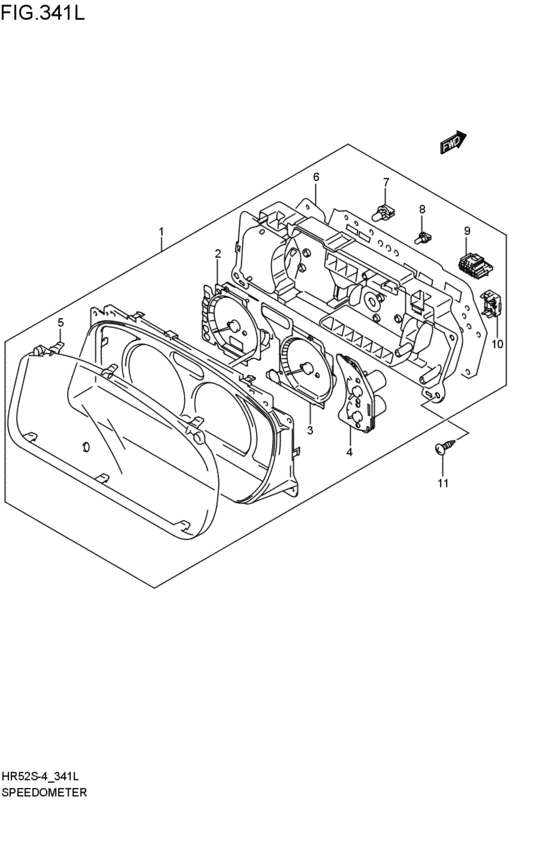

speed meter (2006-05-01~) Diagram Suzuki OTHER MODELS
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 4WD
- grade
- D
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34100-70HH0-000
スピードメータアッシ,コンビネーション
4WD; 2006-05-01~ |
34100-70HH0-000 |
— | ||
|
2
|
2
34120-60J60-000
ボディアッシ,スピードメータ
2006-05-01~ |
34120-60J60-000 |
— | ||
|
3
|
3
34220-60J60-000
ボディアッシ,タコメータ
2006-05-01~ |
34220-60J60-000 |
— | ||
|
4
|
4
34320-60J50-000
ボディアッシ,フューエル/テンパレチャメータ
2006-05-01~ |
34320-60J50-000 |
— | ||
|
5
|
5
34112-81A00-000 GLASS,METER WINDOW2006-05-01~ |
34112-81A00-000 |
US $37.60 |
||
|
6
|
6
34152-60J70-000
プレート,プリンテッド
2006-05-01~ |
34152-60J70-000 |
— | ||
|
7
|
7
34171-70G00-000 BULB,14V 3.4W G202006-05-01~ |
34171-70G00-000 |
US $6.59 |
||
|
8
|
8
34171-70G10-000 BULB,14V 1.4W2006-05-01~ |
34171-70G10-000 |
from US $2.59 |
||
|
9
|
9
34191-65D00-000 BUZZER ASSY,WARNING2006-05-01~ |
34191-65D00-000 |
US $60.35 |
||
|
10
|
10
34155-82DG0-000 CIRCUIT,ABS WARNING2006-05-01~ |
34155-82DG0-000 |
US $30.54 |
||
|
11
|
11
03541-0516A-000 SCREW2006-05-01~ |
03541-0516A-000 |
from US $0.68 |
