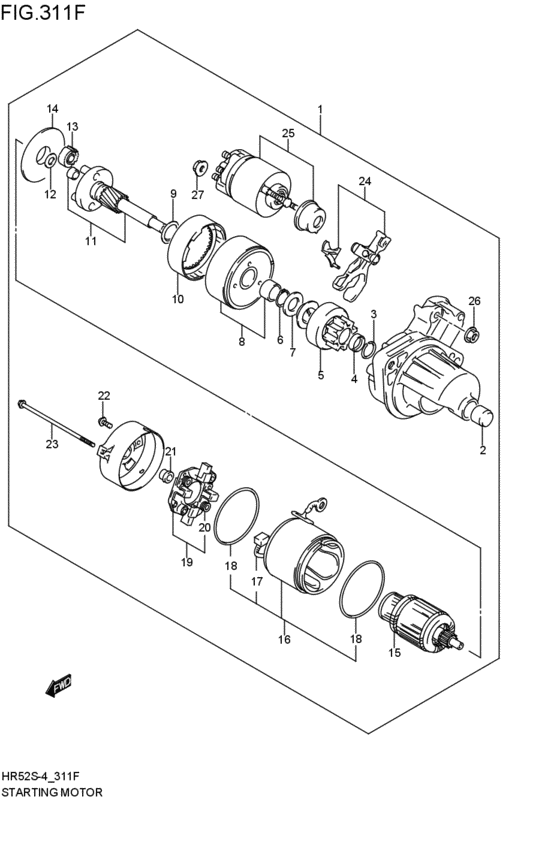

starting motor (2006-05-01~) Diagram Suzuki OTHER MODELS
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 4WD
- grade
- D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-80G00-000 MOTOR ASSY,STARTING2006-05-01~ |
31100-80G00-000 |
US $732.16 |
||
|
2
|
2
31152-52A50-000 BEARING2006-05-01~ |
31152-52A50-000 |
US $18.95 |
||
|
3
|
3
31312-51A10-000 RING,SNAP2006-05-01~ |
31312-51A10-000 |
US $2.94 |
||
|
4
|
4
31313-79010-000 COLLAR,PINION STOP2006-05-01~ |
31313-79010-000 |
US $3.72 |
||
|
5
|
5
31320-60B50-000 CLUTCH,STARTER2006-05-01~ |
31320-60B50-000 |
US $124.38 |
||
|
6
|
6
31361-10200-000 RING,SNAPRing 2006-05-01~ |
31361-10200-000 |
from US $1.62 |
||
|
7
|
7
31155-60B50-000 WASHER2006-05-01~ |
31155-60B50-000 |
US $2.02 |
||
|
8
|
8
31348-60B50-000 SHOCK ABSORBER2006-05-01~ |
31348-60B50-000 |
US $40.11 |
||
|
9
|
9
31154-60B50-000 WASHER2006-05-01~ |
31154-60B50-000 |
US $2.02 |
||
|
10
|
10
31343-60B50-000 GEAR,INTERNAL2006-05-01~ |
31343-60B50-000 |
US $27.60 |
||
|
11
|
11
31341-60B50-000 SHAFT,PLANETARY CARRIER2006-05-01~ |
31341-60B50-000 |
US $23.92 |
||
|
12
|
12
31153-60B50-000 WASHER2006-05-01~ |
31153-60B50-000 |
US $1.14 |
||
|
13
|
13
31344-60B50-000 GEAR,PLNTY2006-05-01~ |
31344-60B50-000 |
US $27.60 |
||
|
14
|
14
31349-60B50-000 PLATE2006-05-01~ |
31349-60B50-000 |
US $10.82 |
||
|
15
|
15
31311-60B51-000 ARMATURE ASSY,STARTER2006-05-01~ |
31311-60B51-000 |
US $255.76 |
||
|
16
|
16
31110-60B51-000 YOKE ASSY2006-05-01~ |
31110-60B51-000 |
US $252.08 |
||
|
17
|
17
31131-60B50-000 STARTER KIT2006-05-01~ |
31131-60B50-000 |
US $2.90 |
||
|
18
|
18
31125-60B50-000 O-RING2006-05-01~ |
31125-60B50-000 |
US $10.52 |
||
|
19
|
19
31173-60B50-000 HOLDER ASSY,BRUSH2006-05-01~ |
31173-60B50-000 |
US $40.11 |
||
|
20
|
20
31135-60B50-000 SPRING,BRUSH2006-05-01~ |
31135-60B50-000 |
US $5.08 |
||
|
21
|
21
31172-60B50-000 BEARING2006-05-01~ |
31172-60B50-000 |
US $4.31 |
||
|
22
|
22
31136-64G00-000 SCREW2006-05-01~ |
31136-64G00-000 |
US $3.28 |
||
|
23
|
23
31281-24B10-000
Bolt
2006-05-01~ |
31281-24B10-000 |
— | ||
| replacement | |||||
|
23
|
23
31281-31D00-000 BoltScrew 2006-05-01~ |
31281-31D00-000 |
from US $4.31 |
||
|
24
|
24
31191-60B50-000 LEVER,STARTER DRIVE2006-05-01~ |
31191-60B50-000 |
US $16.04 |
||
|
25
|
25
31220-51A10-000 SWITCH ASSY2006-05-01~ |
31220-51A10-000 |
US $119.23 |
||
|
26
|
26
08316-1006A-000 NUT2006-05-01~ |
08316-1006A-000 |
from US $0.80 |
||
|
27
|
27
08316-1008A-000 NUTNut, idle gear shaft 2006-05-01~ |
08316-1008A-000 |
from US $0.76 |
||
