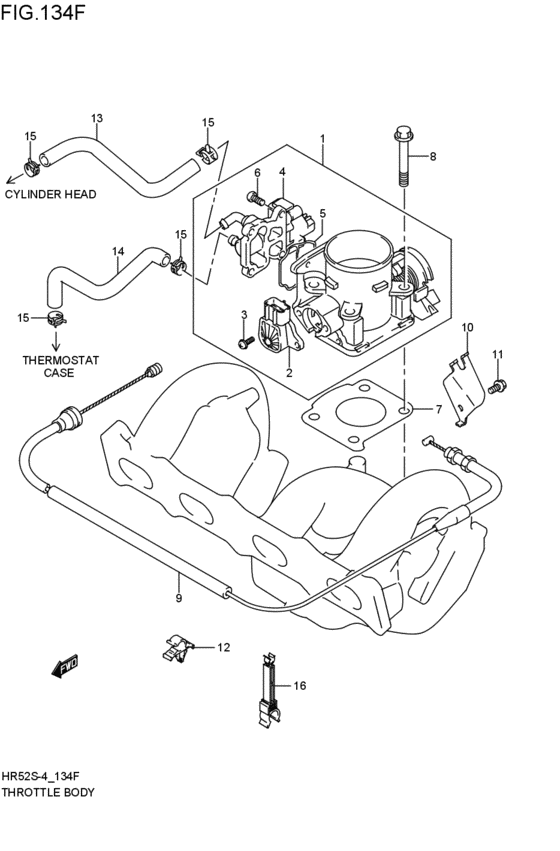

throttle body (2006-05-01~) Diagram Suzuki OTHER MODELS
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 4WD
- grade
- D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13400-69G02-000 BODY ASSY,THROTTLE2006-05-01~ |
13400-69G02-000 |
US $1,099.20 |
||
|
2
|
2
13420-65D00-000
センサ,スロットルポジション
2006-05-01~ |
13420-65D00-000 |
— | ||
| replacement | |||||
|
2
|
2
13420-65D01-000 SENSOR,THROTTLE POSITION2006-05-01~ |
13420-65D01-000 |
from US $196.11 |
||
|
3
|
3
13428-77G10-000
Screw
2006-05-01~ |
13428-77G10-000 |
— | ||
| replacement | |||||
|
3
|
3
13428-77G1V-000 SCREW,4X122006-05-01~ |
13428-77G1V-000 |
US $1.52 |
||
|
4
|
4
18117-78F11-000 VALVE,ISC2006-05-01~ |
18117-78F11-000 |
from US $267.44 |
||
|
5
|
5
14139-70G30-000 GASKET,ISC VALVE2006-05-01~ |
14139-70G30-000 |
from US $2.43 |
||
|
6
|
6
13601-05148-000 SCREW(5X14)2006-05-01~ |
13601-05148-000 |
from US $2.08 |
||
| replacement | |||||
|
6
|
6
13601-05148-XC0 SCREW(5X14)2006-05-01~ |
13601-05148-XC0 |
from US $1.98 |
||
|
7
|
7
13421-54G10-000 GASKET,THROTTLE BODY2006-05-01~ |
13421-54G10-000 |
US $4.32 |
||
|
8
|
8
01550-0855A-000 BOLTBolt, gear holder 2006-05-01~ |
01550-0855A-000 |
from US $1.22 |
||
|
9
|
9
15910-80GA1-000 CABLE ASSY,ACCEL2006-05-01~ |
15910-80GA1-000 |
from US $29.81 |
||
|
10
|
10
15919-80GA1-000 GUIDE,CABLE2006-05-01~ |
15919-80GA1-000 |
US $4.75 |
||
|
11
|
11
01550-0612A-000 BOLT2006-05-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
12
|
12
09403-05317-000 CLAMP2006-05-01~ |
09403-05317-000 |
US $15.80 |
||
|
13
|
13
13491-80GA0-000 HOSE,WTR THROT BODY INLET2006-05-01~ |
13491-80GA0-000 |
US $7.30 |
||
|
14
|
14
13492-80GA0-000 HOSE,WTR THROT BODY OUTLET2006-05-01~ |
13492-80GA0-000 |
US $7.14 |
||
|
15
|
15
09401-12410-000 CLIPClip, filter outlet 2006-05-01~ |
09401-12410-000 |
from US $1.19 |
||
|
16
|
16
09408-00240-000 CLAMP2006-05-01~ |
09408-00240-000 |
US $25.80 |
||
