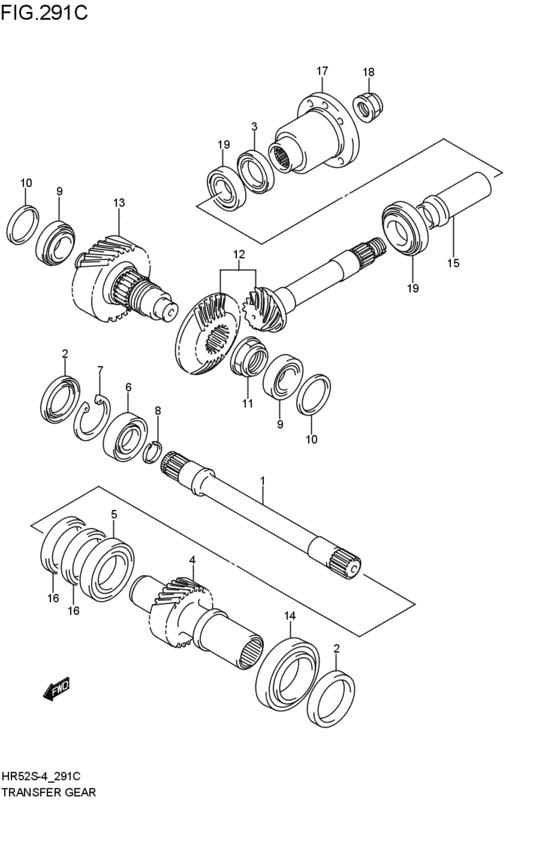

transfer gear (4WD; 2006-05-01~) Diagram Suzuki OTHER MODELS
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 4WD
- grade
- D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27811-79C30-000
シャフト,ドライブインタメジェート
4WD; 2006-05-01~ |
27811-79C30-000 |
— | ||
| replacements | |||||
|
1
|
1
09381-22014-000 RING,SNAP4WD; 2006-05-01~ |
09381-22014-000 |
US $1.07 |
||
|
1
|
1
27811-79C32-000 SHAFT,DRIVE INTERMEDIATE4WD; 2006-05-01~ |
27811-79C32-000 |
US $156.77 |
||
|
2
|
2
09283-40028-000 SEAL,OIL(40X58X9.6)4WD; 2006-05-01~ |
09283-40028-000 |
from US $10.08 |
||
|
3
|
3
09283-35052-000 SEAL,OIL(35X62X14.8)4WD; 2006-05-01~ |
09283-35052-000 |
from US $10.34 |
||
|
4
|
4
29111-75F90-000
Gear, reduction drive
4WD; 2006-05-01~ |
29111-75F90-000 |
— | ||
| replacement | |||||
|
4
|
4
29111-75F91-000 GEAR,REDUCTION DRIVE4WD; 2006-05-01~ |
29111-75F91-000 |
US $338.56 |
||
|
5
|
5
09262-35071-000 BEARING(35X72X17)4WD; 2006-05-01~ |
09262-35071-000 |
US $48.58 |
||
|
6
|
6
09262-28041-000 BEARING(28X58X16)4WD; 2006-05-01~ |
09262-28041-000 |
from US $29.57 |
||
|
7
|
7
08331-41586-000
Circlip
4WD; 2006-05-01~ |
08331-41586-000 |
— | ||
| replacement | |||||
|
7
|
7
08331-4158A-000 CIRCLIP4WD; 2006-05-01~ |
08331-4158A-000 |
from US $2.56 |
||
|
8
|
8
09381-24001-000 RING,SNAPRing (od:24,d:1.6) 4WD; 2006-05-01~ |
09381-24001-000 |
from US $1.60 |
||
|
9
|
9
27380-70H00-000 BEARING ASSY,T/F INPUT4WD; 2006-05-01~ |
27380-70H00-000 |
US $47.47 |
||
|
10
|
10
09181-40004-000 SHIM(40X46.8X0.6)4WD; 2006-05-01~ |
09181-40004-000 |
US $1.46 |
||
|
10
|
10
09181-40005-000 SHIM(40X46.8X0.65)4WD; 2006-05-01~ |
09181-40005-000 |
US $1.46 |
||
|
10
|
10
09181-40006-000 SHIM(40X46.8X0.7)4WD; 2006-05-01~ |
09181-40006-000 |
US $1.46 |
||
|
10
|
10
09181-40007-000 SHIM(40X46.8X0.75)4WD; 2006-05-01~ |
09181-40007-000 |
US $1.46 |
||
|
10
|
10
09181-40008-000 SHIM(40X46.8X0.8)4WD; 2006-05-01~ |
09181-40008-000 |
US $1.46 |
||
|
10
|
10
09181-40009-000 SHIM(40X46.8X085)4WD; 2006-05-01~ |
09181-40009-000 |
US $1.46 |
||
|
10
|
10
09181-40010-000 SHIM(40X46.8X0.9)4WD; 2006-05-01~ |
09181-40010-000 |
US $1.46 |
||
|
10
|
10
09181-40011-000 SHIM(40X46.8X0.95)4WD; 2006-05-01~ |
09181-40011-000 |
US $1.46 |
||
|
10
|
10
09181-40012-000 SHIM(40X46.8X1)4WD; 2006-05-01~ |
09181-40012-000 |
US $1.46 |
||
|
10
|
10
09181-40013-000 SHIM(40X46.8X1.05)4WD; 2006-05-01~ |
09181-40013-000 |
US $1.46 |
||
|
11
|
11
29161-75F90-000 NUT,DRIVE INPUT BEVEL GEAR4WD; 2006-05-01~ |
29161-75F90-000 |
US $18.95 |
||
|
12
|
12
27300-75840-000
BEVEL PINION&GEAR SET
4WD; 2006-05-01~ |
27300-75840-000 |
— | ||
| replacement | |||||
|
12
|
12
27300-75841-000 BEVEL PINION&GEAR SET4WD; 2006-05-01~ |
27300-75841-000 |
US $627.20 |
||
|
13
|
13
29131-75F90-000
Gear, reduction driven
4WD; 2006-05-01~ |
29131-75F90-000 |
— | ||
| replacements | |||||
|
13
|
13
29131-58J00-000 GEAR,REDUCTION DRIVEN4WD; 2006-05-01~ |
29131-58J00-000 |
US $292.56 |
||
|
13
|
13
29161-58J00-000 SPACER,T/F BEVEL GEAR4WD; 2006-05-01~ |
29161-58J00-000 |
US $19.14 |
||
|
14
|
14
08153-60087-000 BEARING4WD; 2006-05-01~ |
08153-60087-000 |
US $29.07 |
||
|
15
|
15
27315-75F90-000 SPACER,T/F OUTPUT PINION4WD; 2006-05-01~ |
27315-75F90-000 |
US $39.20 |
||
|
16
|
16
27431-73B20-000 OIL SEAL,DIFF SIDESeal, defferential side oil 4WD; 2006-05-01~ |
27431-73B20-000 |
US $11.63 |
||
| replacement | |||||
|
16
|
16
27431-73H30-000 SEAL,OIL4WD; 2006-05-01~ |
27431-73H30-000 |
from US $12.67 |
||
|
17
|
17
29291-80G00-000
フランジ,トランスファ,アウトプツト
4WD; 2006-05-01~ |
29291-80G00-000 |
— | ||
| replacement | |||||
|
17
|
17
29291-80G02-000 FLANGE,T/F OUTPUT4WD; 2006-05-01~ |
29291-80G02-000 |
US $132.48 |
||
|
18
|
18
09159-20012-000 NUT4WD; 2006-05-01~ |
09159-20012-000 |
US $89.10 |
||
|
19
|
19
27390-70H01-000 BEARING ASSY,T/F OUTPUT4WD; 2006-05-01~ |
27390-70H01-000 |
US $66.40 |
||
