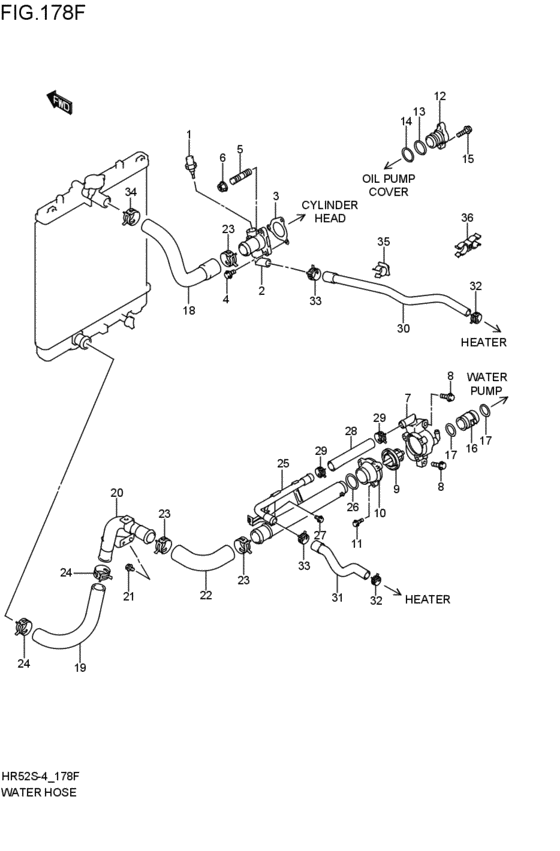

water hose (2006-05-01~) Diagram Suzuki OTHER MODELS
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 4WD
- grade
- D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13650-50F10-000 Sensor,water Temp2006-05-01~ |
13650-50F10-000 |
from US $65.93 |
||
|
2
|
2
17570-69G00-000 CAP,WATER OUTLET2006-05-01~ |
17570-69G00-000 |
US $60.05 |
||
|
3
|
3
17699-69G00-000 GASKET,WATER OUTLET CAP2006-05-01~ |
17699-69G00-000 |
US $5.60 |
||
|
4
|
4
01550-0825A-000 BOLT2006-05-01~ |
01550-0825A-000 |
from US $1.06 |
||
|
5
|
5
01421-0825A-000 BOLT,STUD2006-05-01~ |
01421-0825A-000 |
from US $1.12 |
||
|
6
|
6
08316-1008A-000 NUTNut, idle gear shaft 2006-05-01~ |
08316-1008A-000 |
from US $0.76 |
||
|
7
|
7
17690-69G00-000 CASE,THERMOSTAT2006-05-01~ |
17690-69G00-000 |
from US $68.22 |
||
|
8
|
8
01550-0835A-000 BOLT2006-05-01~ |
01550-0835A-000 |
from US $1.06 |
||
|
9
|
9
17670-65D00-000 THERMOSTAT,WATER 82 DEG2006-05-01~ |
17670-65D00-000 |
from US $21.12 |
||
|
10
|
10
17561-69G00-000 CAP,WATER THERMOSTAT2006-05-01~ |
17561-69G00-000 |
US $20.42 |
||
|
11
|
11
01550-0625A-000 BOLTBolt 2006-05-01~ |
01550-0625A-000 |
from US $0.96 |
||
|
12
|
12
17581-69G00-000 CAP,WATER OUTLET2006-05-01~ |
17581-69G00-000 |
from US $36.54 |
||
|
13
|
13
17582-54D00-000 O-RING,NO.1 D:3.5 ID:30.72006-05-01~ |
17582-54D00-000 |
from US $2.24 |
||
|
14
|
14
17583-54D00-000 O-RING,NO.2 D:3.8 ID:27.72006-05-01~ |
17583-54D00-000 |
from US $2.72 |
||
|
15
|
15
01550-0845A-000 BOLTBolt, oil pump (s) 2006-05-01~ |
01550-0845A-000 |
US $5.03 |
||
|
16
|
16
17831-69G00-000 PIPE,THERMO CASE WATER OUTLET2006-05-01~ |
17831-69G00-000 |
from US $12.20 |
||
|
17
|
17
09280-28008-000 O RING(D:3.5,ID:27.7)2006-05-01~ |
09280-28008-000 |
from US $0.63 |
||
|
18
|
18
17852-80GA0-000 HOSE,RADIATOR INLET2006-05-01~ |
17852-80GA0-000 |
from US $23.18 |
||
|
19
|
19
17854-79C00-000 HOSE,RADIATOR OUTLET2006-05-01~ |
17854-79C00-000 |
from US $14.87 |
||
|
20
|
20
17860-80GA0-000 PIPE,WATER INLET NO.22006-05-01~ |
17860-80GA0-000 |
US $67.20 |
||
|
21
|
21
01550-0612A-000 BOLT2006-05-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
22
|
22
17853-69G00-000 HOSE,WATER INLET2006-05-01~ |
17853-69G00-000 |
from US $12.58 |
||
|
23
|
23
09401-35403-000 CLIP2006-05-01~ |
09401-35403-000 |
from US $2.56 |
||
|
24
|
24
09401-30405-000 CLIP2006-05-01~ |
09401-30405-000 |
from US $3.04 |
||
|
25
|
25
17840-69G00-000 PIPE,WATER INLET NO.12006-05-01~ |
17840-69G00-000 |
US $60.05 |
||
|
26
|
26
09280-28008-000 O RING(D:3.5,ID:27.7)2006-05-01~ |
09280-28008-000 |
from US $0.63 |
||
|
27
|
27
01550-0612A-000 BOLT2006-05-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
28
|
28
17873-69G00-000 HOSE,WATER BYPASS2006-05-01~ |
17873-69G00-000 |
US $10.40 |
||
|
29
|
29
09401-21405-000 CLIP2006-05-01~ |
09401-21405-000 |
US $1.60 |
||
|
30
|
30
17871-80GA0-000 HOSE,HEATER INLET2006-05-01~ |
17871-80GA0-000 |
US $41.60 |
||
|
31
|
31
17872-80GA0-000 HOSE,HEATER OUTLET2006-05-01~ |
17872-80GA0-000 |
US $35.20 |
||
|
32
|
32
09401-18403-000 CLIPClip, heater hose 2006-05-01~ |
09401-18403-000 |
US $1.92 |
||
|
33
|
33
09401-21405-000 CLIP2006-05-01~ |
09401-21405-000 |
US $1.60 |
||
|
34
|
34
09401-30405-000 CLIP2006-05-01~ |
09401-30405-000 |
from US $3.04 |
||
|
35
|
35
09403-18305-000 CLAMP2006-05-01~ |
09403-18305-000 |
US $13.60 |
||
|
36
|
36
09408-00166-000 CLAMP2006-05-01~ |
09408-00166-000 |
US $33.50 |
