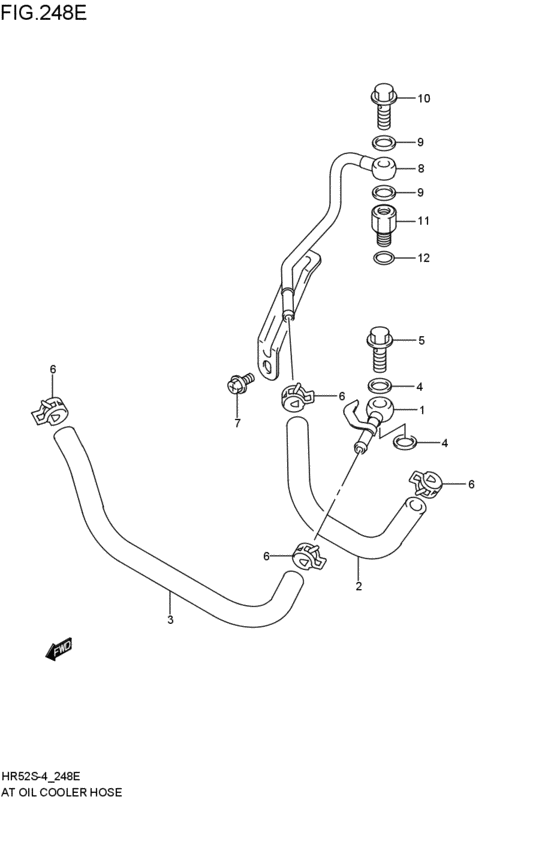

at - oil hose (2006-05-01~) Diagram Suzuki OTHER MODELS
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 2WD
- grade
- E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22921-70H10-000 PIPE,OIL COOLER OUTLET2006-05-01~ |
22921-70H10-000 |
US $32.94 |
||
|
2
|
2
22931-70H10-000 HOSE,OIL COOLER INLET2006-05-01~ |
22931-70H10-000 |
from US $17.26 |
||
|
3
|
3
22932-70H10-000 HOSE,OIL COOLER OUTLET2006-05-01~ |
22932-70H10-000 |
from US $18.95 |
||
|
4
|
4
22913-60H10-000
GASKET
2006-05-01~ |
22913-60H10-000 |
— | ||
| replacement | |||||
|
4
|
4
22913-63J10-000 GASKET,OIL PIPE UNION BOLT2006-05-01~ |
22913-63J10-000 |
from US $1.15 |
||
|
5
|
5
09360-10055-000 UNIONBolt, oil pipe union 2006-05-01~ |
09360-10055-000 |
from US $2.45 |
||
|
6
|
6
09401-13419-000 CLIP2006-05-01~ |
09401-13419-000 |
from US $1.76 |
||
|
7
|
7
02162-0612A-000 SCREWBolt, bracket 2006-05-01~ |
02162-0612A-000 |
from US $0.79 |
||
|
8
|
8
22911-70H11-000 PIPE,OIL COOLER INLET2006-05-01~ |
22911-70H11-000 |
US $30.73 |
||
|
9
|
9
22913-60H10-000
GASKET
2006-05-01~ |
22913-60H10-000 |
— | ||
| replacement | |||||
|
9
|
9
22913-63J10-000 GASKET,OIL PIPE UNION BOLT2006-05-01~ |
22913-63J10-000 |
from US $1.15 |
||
|
10
|
10
09360-10055-000 UNIONBolt, oil pipe union 2006-05-01~ |
09360-10055-000 |
from US $2.45 |
||
|
11
|
11
24743-55G10-000 UNION,OIL PIPE2006-05-01~ |
24743-55G10-000 |
from US $13.57 |
||
|
12
|
12
29737-57B00-000 O-RING,OIL PIPE2006-05-01~ |
29737-57B00-000 |
from US $2.28 |
||
