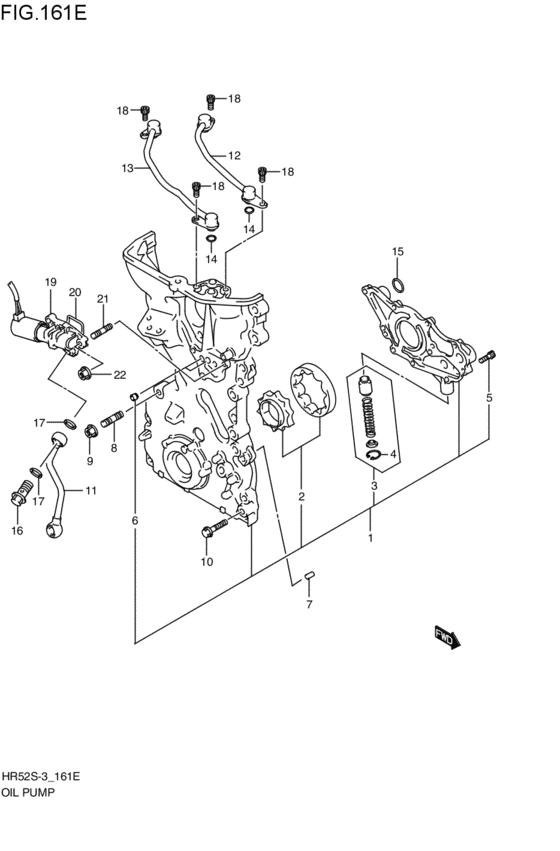

Oil pump (2005-04-01~2005-11-01) Diagram Suzuki OTHER MODELS
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 2WD
- grade
- L
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16100-69GE8-000
Pump assy,oil
2005-04-01~2005-11-01 |
16100-69GE8-000 |
— | ||
| replacement | |||||
|
1
|
1
16100-69GF0-000 PUMP ASSY,OIL2005-04-01~2005-11-01 |
16100-69GF0-000 |
from US $274.34 |
||
|
2
|
2
16130-69GE0-000 ROTOR SET,OIL PUMP2005-04-01~2005-11-01 |
16130-69GE0-000 |
US $93.60 |
||
|
3
|
3
16150-60A10-000
Valve set, oil pump relief
2005-04-01~2005-11-01 |
16150-60A10-000 |
— | ||
| replacement | |||||
|
3
|
3
16150-60A20-000 VALVE SET,OIL PUMP RELIEF2005-04-01~2005-11-01 |
16150-60A20-000 |
US $9.12 |
||
|
4
|
4
08331-41156-000
Circlip
2005-04-01~2005-11-01 |
08331-41156-000 |
— | ||
| replacement | |||||
|
4
|
4
08331-4115A-000 CIRCLIP2005-04-01~2005-11-01 |
08331-4115A-000 |
US $1.60 |
||
|
5
|
5
07130-06253-000
Bolt
2005-04-01~2005-11-01 |
07130-06253-000 |
— | ||
| replacement | |||||
|
5
|
5
07130-0625B-000 BOLT2005-04-01~2005-11-01 |
07130-0625B-000 |
from US $0.91 |
||
|
6
|
6
16116-69GE0-000 FILTER,OIL GALLERY2005-04-01~2005-11-01 |
16116-69GE0-000 |
from US $6.14 |
||
|
7
|
7
09206-06005-000 PIN(4X6X11)2005-04-01~2005-11-01 |
09206-06005-000 |
from US $1.04 |
||
|
8
|
8
09108-08090-000
Bolt, stud 8x25
2005-04-01~2005-07-01 |
09108-08090-000 |
— | ||
| replacement | |||||
|
8
|
8
09108-08276-000 BOLT,STUD2005-04-01~2005-07-01 |
09108-08276-000 |
US $1.60 |
||
|
8
|
8
09108-08276-000 BOLT,STUD2005-07-01~2005-11-01 |
09108-08276-000 |
US $1.60 |
||
|
9
|
9
08316-10083-000
Nut
2005-04-01~2005-11-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
9
|
9
08316-1008B-000 NUT2005-04-01~2005-11-01 |
08316-1008B-000 |
from US $0.76 |
||
|
10
|
10
01550-08353-000
Bolt, rear
2005-04-01~2005-11-01 |
01550-08353-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0835B-000 BOLT2005-04-01~2005-11-01 |
01550-0835B-000 |
from US $1.12 |
||
|
10
|
10
01550-0835A-000 BOLT2005-04-01~2005-11-01 |
01550-0835A-000 |
from US $1.06 |
||
|
11
|
11
16140-69GE1-000
Pipe,oil gallery no.1
2005-04-01~2005-11-01 |
16140-69GE1-000 |
— | ||
| replacement | |||||
|
11
|
11
16140-69GE2-000 PIPE,OIL GALLERY NO.12005-04-01~2005-11-01 |
16140-69GE2-000 |
from US $18.09 |
||
|
12
|
12
16170-69GE0-000 PIPE,OIL GALLERY NO.22005-04-01~2005-11-01 |
16170-69GE0-000 |
US $32.02 |
||
|
13
|
13
16180-69GE0-000 PIPE,OIL GALLERY NO.32005-04-01~2005-11-01 |
16180-69GE0-000 |
US $32.94 |
||
|
14
|
14
16147-78G70-000 O-RING,OIL PIPE D:1.9 ID:7.82005-04-01~2005-11-01 |
16147-78G70-000 |
from US $1.49 |
||
|
15
|
15
09280-17002-000 O RING(D:2.4,ID:16.8)O ring (d:2.4,id:16.8) 2005-04-01~2005-11-01 |
09280-17002-000 |
from US $2.56 |
||
|
16
|
16
09360-12005-000 UNIONBolt,union 2005-04-01~2005-11-01 |
09360-12005-000 |
from US $3.78 |
||
|
17
|
17
09168-12017-000 GASKET(12X17X1)Gasket, drain plug 2005-04-01~2005-11-01 |
09168-12017-000 |
from US $1.06 |
||
|
18
|
18
07130-06123-000
Bolt
2005-04-01~2005-11-01 |
07130-06123-000 |
— | ||
| replacement | |||||
|
18
|
18
07130-0612A-000 BOLT2005-04-01~2005-11-01 |
07130-0612A-000 |
from US $0.96 |
||
|
19
|
19
16550-69GE3-000 VALVE,OIL CONTROL2005-04-01~2005-11-01 |
16550-69GE3-000 |
from US $112.12 |
||
|
20
|
20
16559-69GE0-000 GASKET,OCV2005-04-01~2005-11-01 |
16559-69GE0-000 |
from US $3.60 |
||
|
21
|
21
09108-06118-000
Bolt, stud (l:20)
2005-04-01~2005-11-01 |
09108-06118-000 |
— | ||
| replacement | |||||
|
21
|
21
09108-06134-000 BOLT,STUD2005-04-01~2005-11-01 |
09108-06134-000 |
US $1.68 |
||
|
22
|
22
08316-10063-000
Nut
2005-04-01~2005-11-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
22
|
22
08316-1006B-000 NUT2005-04-01~2005-11-01 |
08316-1006B-000 |
from US $0.76 |
||
