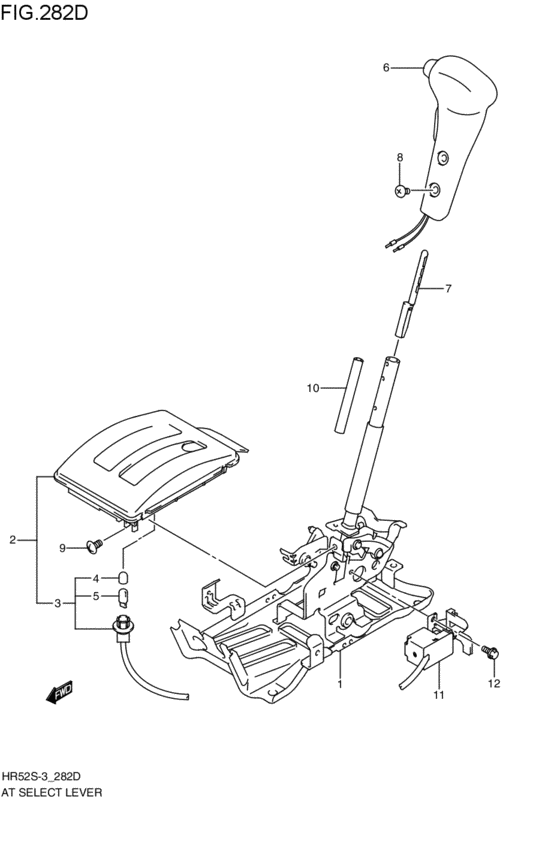

select lever (2005-04-01~2005-11-01) Diagram Suzuki OTHER MODELS
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 2WD
- grade
- L
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28110-70H30-000 LEVER ASSY,SELECT2005-04-01~2005-11-01 |
28110-70H30-000 |
US $193.20 |
||
|
2
|
2
28150-78F10-000 INDICATOR ASSY,SELECT2005-04-01~2005-11-01 |
28150-78F10-000 |
US $58.51 |
||
|
3
|
3
28159-78F10-000 LAMP ASSY,INDICATOR2005-04-01~2005-11-01 |
28159-78F10-000 |
US $14.32 |
||
|
4
|
4
28182-61A00-000 FILTER,BULB2005-04-01~2005-11-01 |
28182-61A00-000 |
US $2.58 |
||
|
5
|
5
09471-12077-000 BULB(12V1.7W,T10,WB121)STANLEY,WB121; 2005-04-01~2005-11-01 |
09471-12077-000 |
from US $1.52 |
||
|
6
|
6
28160-78FK0-5PK
ノブアッシ,セレクトレバー(ブラック)
ブラック; EX,L; 2005-04-01~2005-11-01 |
28160-78FK0-5PK |
— | ||
|
7
|
7
28164-76G11-000 GUIDE,DETENT RELEASE ROD2005-04-01~2005-11-01 |
28164-76G11-000 |
US $6.96 |
||
|
8
|
8
09125-05117-000 SCREW(5X6)Screw (5x6) 2005-04-01~2005-11-01 |
09125-05117-000 |
from US $0.96 |
||
|
9
|
9
02142-05103-000
Screw 5x10
2005-04-01~2005-11-01 |
02142-05103-000 |
— | ||
| replacement | |||||
|
9
|
9
02142-0510B-000 SCREWBolt 2005-04-01~2005-11-01 |
02142-0510B-000 |
from US $0.76 |
||
|
10
|
10
28118-64B61-000 TUBE,SWITCH WIRE HARNESS2005-04-01~2005-11-01 |
28118-64B61-000 |
US $1.88 |
||
|
11
|
11
28610-78F10-000 SOLENOID,SHIFT LOCK2005-04-01~2005-11-01 |
28610-78F10-000 |
US $75.81 |
||
|
12
|
12
09118-05006-000 BOLT(5X8)2005-04-01~2005-11-01 |
09118-05006-000 |
US $19.90 |
||
