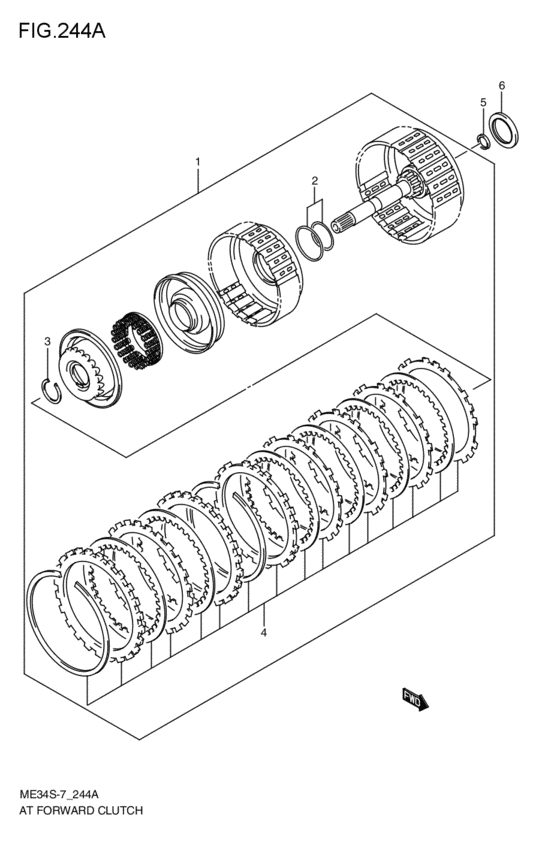

at - forward clutch (2009-06-01~) Diagram Suzuki OTHER MODELS
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 2WD
- grade
- XG
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24200-79C10-000 CLUTCH ASSY,FORWARD2009-06-01~ |
24200-79C10-000 |
US $668.80 |
||
|
2
|
2
26614-79CT0-000
O-ring set,forward clutch
2009-06-01~ |
26614-79CT0-000 |
— | ||
| replacement | |||||
|
2
|
2
26614-77MT0-000 O-RING SET,FORWARD CLUTCH2009-06-01~ |
26614-77MT0-000 |
US $3.31 |
||
|
3
|
3
26617-79C10-000 RING,BALANCER SNAP2009-06-01~ |
26617-79C10-000 |
US $2.43 |
||
|
4
|
4
26618-79CT0-000
DISC SET,FWD&REV CLUTCH
2009-06-01~ |
26618-79CT0-000 |
— | ||
|
5
|
5
24271-79C10-000
Ring,intermediate shaf
2009-06-01~ |
24271-79C10-000 |
— | ||
| replacement | |||||
|
5
|
5
24271-77M10-000 RING,INTERMEDIATE SHAFT SEAL2009-06-01~ |
24271-77M10-000 |
US $3.75 |
||
|
6
|
6
24975-79C10-000 BEARING,REVERSE CL DRUM2009-06-01~ |
24975-79C10-000 |
US $15.38 |
||
