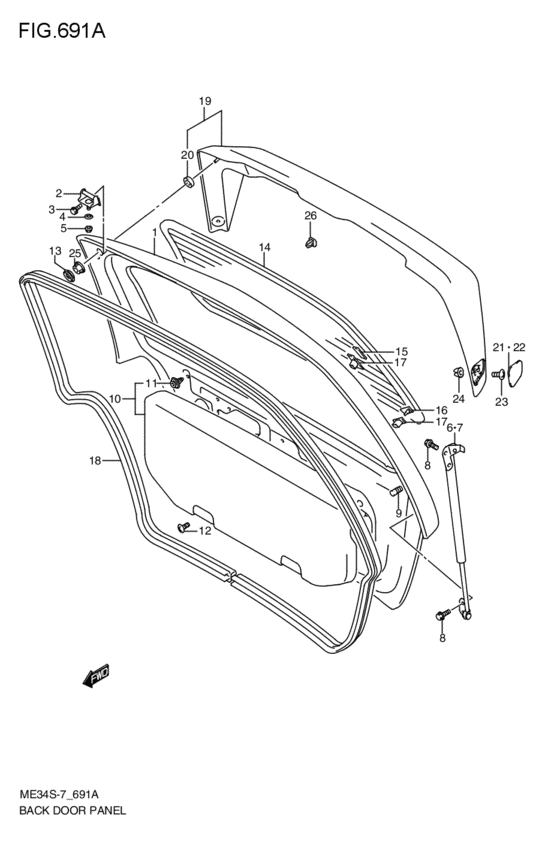

back door panel (2009-06-01~) Diagram Suzuki OTHER MODELS
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 2WD
- grade
- XG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
69100-78FG0-000 PANEL ASSY,BACK DOOR2009-06-01~ |
69100-78FG0-000 |
US $718.08 |
||
|
2
|
2
69510-76G00-000 HINGE,BACK DOOR2009-06-01~ |
69510-76G00-000 |
US $25.39 |
||
|
3
|
3
01550-0612A-000 BOLT2009-06-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
4
|
4
69571-76G00-000 PACKING,BACK DR HNG2009-06-01~ |
69571-76G00-000 |
US $2.24 |
||
|
5
|
5
08361-2508A-000 NUT2009-06-01~ |
08361-2508A-000 |
from US $0.80 |
||
|
6
|
6
81850-78F00-000 BALANCER,BACK DR,R2009-06-01~ |
81850-78F00-000 |
US $103.04 |
||
|
7
|
7
81860-78F00-000 BALANCER,BACK DR,L2009-06-01~ |
81860-78F00-000 |
US $103.04 |
||
|
8
|
8
09128-06091-000 SCREW(6X12)2009-06-01~ |
09128-06091-000 |
US $11.80 |
||
|
9
|
9
82683-70K00-000 CUSHION,BACK DR SIDE2009-06-01~ |
82683-70K00-000 |
US $2.61 |
||
|
10
|
10
83770-78F01-R8R TRIM,BACK DOOR2009-06-01~ |
83770-78F01-R8R |
US $113.34 |
||
|
11
|
11
76216-76F20-000 CLIP,QTR TRIM2009-06-01~ |
76216-76F20-000 |
US $2.39 |
||
|
12
|
12
02142-0616A-000 SCREW2009-06-01~ |
02142-0616A-000 |
from US $0.76 |
||
|
13
|
13
09250-20023-000 CAP(OD:25.8)2009-06-01~ |
09250-20023-000 |
US $10.30 |
||
|
14
|
14
84570-78F10-000 GLASS,BACK DR WINDOW(CENTRAL); 2009-06-01~ |
84570-78F10-000 |
US $443.52 |
||
|
15
|
15
84513-76F00-000 MALE,GLASS FASTENER NO.22009-06-01~ |
84513-76F00-000 |
US $1.60 |
||
|
16
|
16
84572-74G00-000 MALE,GLASS FASTENER NO.12009-06-01~ |
84572-74G00-000 |
US $3.79 |
||
|
17
|
17
84515-65D00-000 FEMALE,GLASS FASTENER NO.22009-06-01~ |
84515-65D00-000 |
US $3.75 |
||
|
18
|
18
84681-78F00-000 WEATHERSTRIP,BACK DR OPNG2009-06-01~ |
84681-78F00-000 |
US $90.53 |
||
|
19
|
19
83900-78F50-ZED
エアスポイラアッシ,バックドア(バイオレット)
XMA,XV,XG; 2009-06-01~ |
83900-78F50-ZED |
— | ||
|
19
|
19
83900-78F50-ZJP
エアスポイラアッシ,バックドア(バイオレット)
XG; 2009-06-01~ |
83900-78F50-ZJP |
— | ||
|
19
|
19
83900-78F50-ZJ3 SPOILER ASSY,BACK DOORXV,XG; 2009-06-01~ |
83900-78F50-ZJ3 |
US $644.16 |
||
|
19
|
19
83900-78F50-Z7T SPOILER ASSY,BACK DOORXMA,XV,XG; 2009-06-01~ |
83900-78F50-Z7T |
US $732.16 |
||
|
20
|
20
83956-78F50-000 SEAL,BACK DOOR SPOILER SIDE2009-06-01~ |
83956-78F50-000 |
US $3.09 |
||
|
21
|
21
83951-76F00-ZED
キャップ,バックドアスポイラ,ライト(バイオレット
XMA,XV,XG; 2009-06-01~ |
83951-76F00-ZED |
— | ||
|
21
|
21
83951-76F00-ZJP
キャップ,バックドアスポイラ,ライト(バイオレット
XG; 2009-06-01~ |
83951-76F00-ZJP |
— | ||
|
21
|
21
83951-76F00-ZJ3
CAP,BACK DR SPOILER,R
XV,XG; 2009-06-01~ |
83951-76F00-ZJ3 |
— | ||
| replacement | |||||
|
21
|
21
83951-76F00-000 New Genuine PartXV,XG; 2009-06-01~ |
83951-76F00-000 |
US $10.93 |
||
|
21
|
21
83951-76F00-Z7T CAP,BACK DR SPOILER,RXMA,XV,XG; 2009-06-01~ |
83951-76F00-Z7T |
US $23.37 |
||
|
22
|
22
83952-76F00-ZED
キャップ,バックドアスポイラ,レフト(バイオレット
XMA,XV,XG; 2009-06-01~ |
83952-76F00-ZED |
— | ||
|
22
|
22
83952-76F00-ZJP
キャップ,バックドアスポイラ,レフト(バイオレット
XG; 2009-06-01~ |
83952-76F00-ZJP |
— | ||
|
22
|
22
83952-76F00-ZJ3 CAP,BACK DR SPOILER,LXV,XG; 2009-06-01~ |
83952-76F00-ZJ3 |
US $18.95 |
||
|
22
|
22
83952-76F00-Z7T CAP,BACK DR SPOILER,LXMA,XV,XG; 2009-06-01~ |
83952-76F00-Z7T |
US $23.37 |
||
|
23
|
23
09132-06010-000 SCREW(6X16)2009-06-01~ |
09132-06010-000 |
US $12.90 |
||
|
24
|
24
09148-06007-000 NUT2009-06-01~ |
09148-06007-000 |
US $0.91 |
||
|
25
|
25
09159-06076-000 NUT2009-06-01~ |
09159-06076-000 |
from US $1.28 |
||
|
26
|
26
09410-00076-000 CLIP2009-06-01~ |
09410-00076-000 |
US $2.24 |
||
