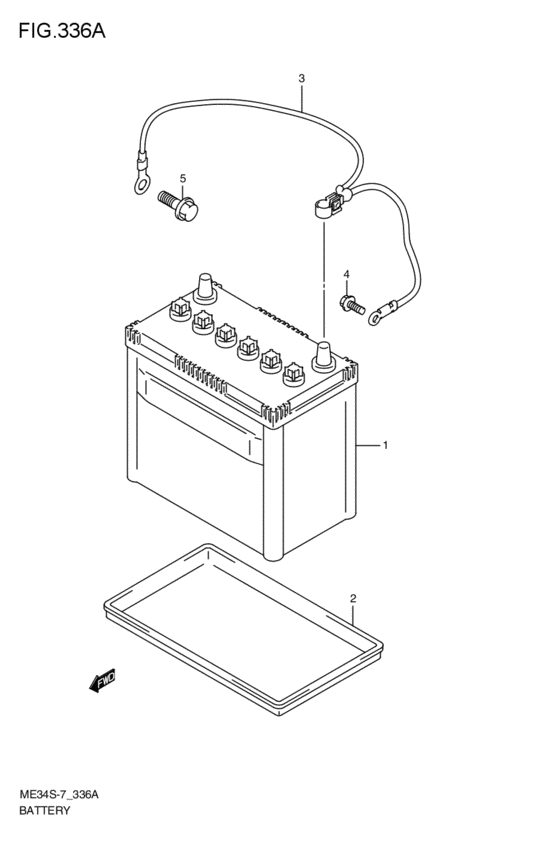

battery (2009-06-01~) Diagram Suzuki OTHER MODELS
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 2WD
- grade
- XG
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33610-80G00-000
Battery,46b24l,12v38ah/5hr(fb)
2009-06-01~ |
33610-80G00-000 |
— | ||
| replacement | |||||
|
1
|
1
33610-60GV1-000
BATTERY ASSY,55B24L [Cannot be supplied]
2009-06-01~ |
33610-60GV1-000 |
— | ||
|
2
|
2
33660-73010-000
Tray, battery
2009-06-01~ |
33660-73010-000 |
— | ||
| replacement | |||||
|
2
|
2
33660-71L10-000 TRAY,BATTERY2009-06-01~ |
33660-71L10-000 |
US $10.88 |
||
|
3
|
3
33850-78F80-000 CABLE ASSY,BATTERY GND2009-06-01~ |
33850-78F80-000 |
US $44.16 |
||
|
4
|
4
09115-06005-000 BOLT(6X16)2009-06-01~ |
09115-06005-000 |
US $1.28 |
||
|
5
|
5
01550-0812A-000 BOLT2009-06-01~ |
01550-0812A-000 |
from US $0.91 |
||
