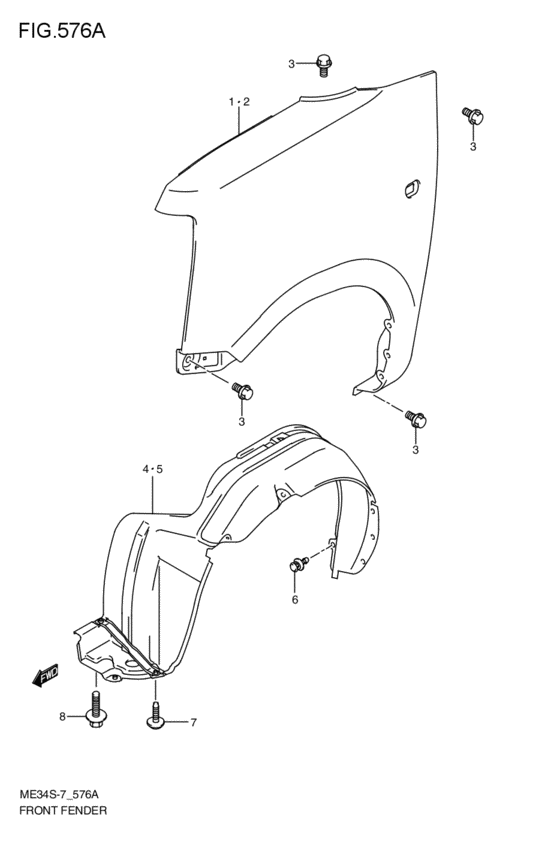

front fender (2009-06-01~) Diagram Suzuki OTHER MODELS
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 2WD
- grade
- XG
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57611-78F50-000 PANEL,FR FENDER,R2009-06-01~ |
57611-78F50-000 |
US $202.40 |
||
|
2
|
2
57711-78F50-000 PANEL,FR FENDER,L2009-06-01~ |
57711-78F50-000 |
US $202.40 |
||
|
3
|
3
01550-0612A-000 BOLT2009-06-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
4
|
4
72430-78F00-000 LINING,FR FENDER,R2009-06-01~ |
72430-78F00-000 |
US $64.77 |
||
|
5
|
5
72440-78F00-000 LINING,FR FENDER,L2009-06-01~ |
72440-78F00-000 |
US $64.77 |
||
|
6
|
6
09409-07340-000 CLIP2009-06-01~ |
09409-07340-000 |
US $1.22 |
||
|
7
|
7
09136-05034-000 SCREW(5X16)2009-06-01~ |
09136-05034-000 |
from US $1.28 |
||
|
8
|
8
09116-06115-000 BOLT(6X20)Bolt (6x20) 2009-06-01~ |
09116-06115-000 |
from US $1.37 |
