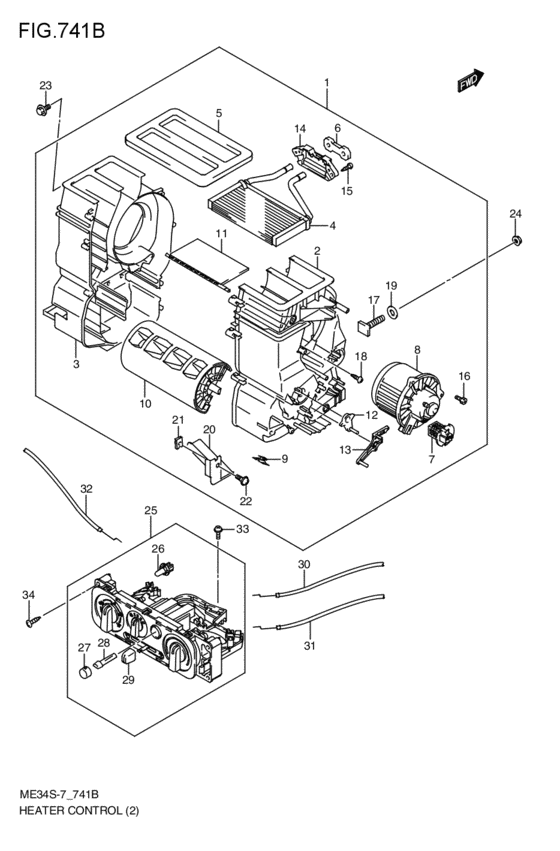

heater control (XV,XG; 2009-06-01~) Diagram Suzuki OTHER MODELS
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 2WD
- grade
- XG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
74100-78F04-000 HEATER UNITXV,XG; 2009-06-01~ |
74100-78F04-000 |
US $844.80 |
||
|
2
|
2
74111-78F05-000 CASE,HTR,LXV,XG; 2009-06-01~ |
74111-78F05-000 |
US $71.39 |
||
|
3
|
3
74112-78F03-000
CASE,HTR,R
XV,XG; 2009-06-01~ |
74112-78F03-000 |
— | ||
|
4
|
4
74120-80G00-000 CORE,HEATERXV,XG; 2009-06-01~ |
74120-80G00-000 |
US $404.80 |
||
|
5
|
5
74116-78F10-000 PACKINGXV,XG; 2009-06-01~ |
74116-78F10-000 |
US $12.48 |
||
|
6
|
6
74118-80G00-000 PACKINGXV,XG; 2009-06-01~ |
74118-80G00-000 |
US $6.96 |
||
|
7
|
7
74140-78F00-000 RESISTOR,BLOWERXV,XG; 2009-06-01~ |
74140-78F00-000 |
US $37.17 |
||
|
8
|
8
74150-78F00-000 MOTOR ASSY,FANXV,XG; 2009-06-01~ |
74150-78F00-000 |
US $345.92 |
||
|
9
|
9
74151-50F00-000 CABLEXV,XG; 2009-06-01~ |
74151-50F00-000 |
US $3.09 |
||
|
10
|
10
74171-78F00-000 DOOR ASSY,MODEXV,XG; 2009-06-01~ |
74171-78F00-000 |
US $38.27 |
||
|
11
|
11
74172-78F00-000 DOOR ASSY,AIR MIXTUREXV,XG; 2009-06-01~ |
74172-78F00-000 |
US $23.55 |
||
|
12
|
12
74182-78F00-000 LEVER,MODEXV,XG; 2009-06-01~ |
74182-78F00-000 |
US $9.90 |
||
|
13
|
13
74181-78F00-000 LEVER,AIR MXTXV,XG; 2009-06-01~ |
74181-78F00-000 |
US $9.90 |
||
|
14
|
14
74191-78F00-000 BRACKETXV,XG; 2009-06-01~ |
74191-78F00-000 |
US $8.24 |
||
|
15
|
15
03511-0416A-000 SCREWXV,XG; 2009-06-01~ |
03511-0416A-000 |
from US $2.45 |
||
|
16
|
16
74135-82000-000 SCREW,MOTORXV,XG; 2009-06-01~ |
74135-82000-000 |
US $1.73 |
||
|
17
|
17
74115-65D00-000 BoltXV,XG; 2009-06-01~ |
74115-65D00-000 |
US $3.61 |
||
|
18
|
18
03511-0416A-000 SCREWXV,XG; 2009-06-01~ |
03511-0416A-000 |
from US $2.45 |
||
|
19
|
19
74119-78F00-000 WASHER,RBRXV,XG; 2009-06-01~ |
74119-78F00-000 |
US $3.53 |
||
|
20
|
20
74910-78F00-000
ADAPTER,HTR,R
XV,XG; 2009-06-01~ |
74910-78F00-000 |
— | ||
|
21
|
21
09148-06021-000 NUTNut, air cleaner XV,XG; 2009-06-01~ |
09148-06021-000 |
from US $1.31 |
||
|
22
|
22
02112-7616A-000 SCREWXV,XG; 2009-06-01~ |
02112-7616A-000 |
from US $0.96 |
||
|
23
|
23
09113-06006-000 BOLT(6X20)XV,XG; 2009-06-01~ |
09113-06006-000 |
US $12.50 |
||
| replacement | |||||
|
23
|
23
09113-06014-000 BOLT(6X20)XV,XG; 2009-06-01~ |
09113-06014-000 |
US $14.40 |
||
|
24
|
24
09159-06081-000 NUTXV,XG; 2009-06-01~ |
09159-06081-000 |
US $12.50 |
||
|
25
|
25
74400-70JA1-5PK LEVER ASSY,HTR CONTXV,XG; 2009-06-01~ |
74400-70JA1-5PK |
US $166.34 |
||
|
26
|
26
74531-84G00-000 BULB,HTR CONT PNLXV,XG; 2009-06-01~ |
74531-84G00-000 |
US $7.90 |
||
|
27
|
27
95521-84G00-000 KNOB,A/C SWXV,XG; 2009-06-01~ |
95521-84G00-000 |
US $2.43 |
||
|
28
|
28
95522-84G00-000 INDICATOR,A/C SWXV,XG; 2009-06-01~ |
95522-84G00-000 |
US $1.52 |
||
|
29
|
29
74463-84G00-000 KNOB,FRESH AIRXV,XG; 2009-06-01~ |
74463-84G00-000 |
US $2.43 |
||
|
30
|
30
74451-73H00-000 CABLE,MODE CONTROL L:430ナチユラル; XV,XG; 2009-06-01~ |
74451-73H00-000 |
US $8.72 |
||
|
31
|
31
74452-78F21-000 CABLE,TEMP CONTROLブルー; XV,XG; 2009-06-01~ |
74452-78F21-000 |
US $8.50 |
||
|
32
|
32
74453-70H00-000 CABLE,FRESH AIR CONTROL L:555ブラツク; XV,XG; 2009-06-01~ |
74453-70H00-000 |
US $11 |
||
|
33
|
33
09136-05060-000 SCREW(5X16)XV,XG; 2009-06-01~ |
09136-05060-000 |
US $14 |
||
|
34
|
34
03541-0512A-000 SCREWXV,XG; 2009-06-01~ |
03541-0512A-000 |
from US $0.76 |
||
