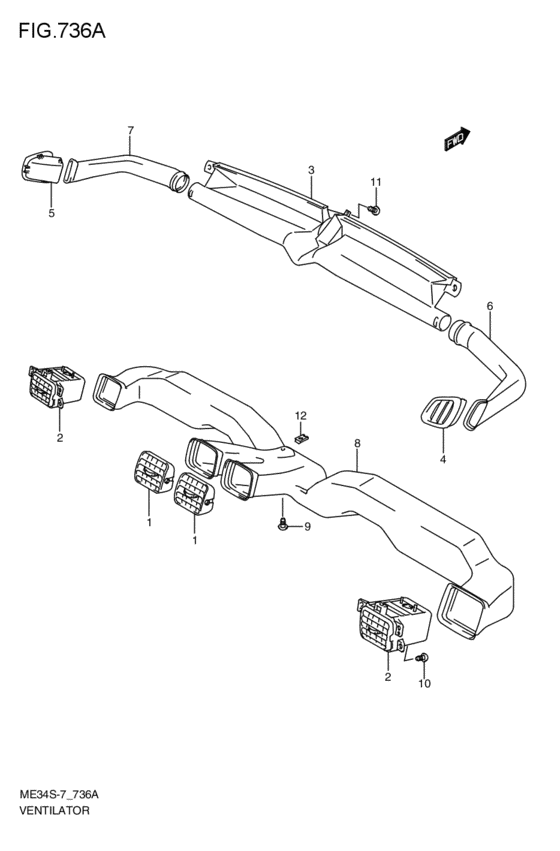

ventilator (2009-06-01~) Diagram Suzuki OTHER MODELS
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 2WD
- grade
- XG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
73631-81A11-5PK LOUVER,SIDE VENT2009-06-01~ |
73631-81A11-5PK |
US $38 |
||
|
2
|
2
73630-78F11-R8R LOUVER,SIDE VENT2009-06-01~ |
73630-78F11-R8R |
US $29.26 |
||
|
3
|
3
73661-78F00-000
NOZZLE,DFR
2009-06-01~ |
73661-78F00-000 |
— | ||
|
4
|
4
73651-78F00-R8R
NOZZLE,SIDE DEMISTER,R
2009-06-01~ |
73651-78F00-R8R |
— | ||
|
5
|
5
73652-78F00-R8R
NOZZLE,SIDE DEMISTER,L
2009-06-01~ |
73652-78F00-R8R |
— | ||
|
6
|
6
73681-78F00-000
DUCT,DEMISTER,R
2009-06-01~ |
73681-78F00-000 |
— | ||
|
7
|
7
73691-78F00-000
DUCT,DEMISTER,L
2009-06-01~ |
73691-78F00-000 |
— | ||
|
8
|
8
74621-78F01-000 DUCT,VENT2009-06-01~ |
74621-78F01-000 |
US $79.49 |
||
|
9
|
9
03141-0512A-000 SCREWScrew, belt cooling duct 2009-06-01~ |
03141-0512A-000 |
from US $0.76 |
||
|
10
|
10
03541-0516A-000 SCREW2009-06-01~ |
03541-0516A-000 |
from US $0.76 |
||
|
11
|
11
03541-0516A-000 SCREW2009-06-01~ |
03541-0516A-000 |
from US $0.76 |
||
|
12
|
12
09148-05045-000 NUT2009-06-01~ |
09148-05045-000 |
from US $0.81 |
