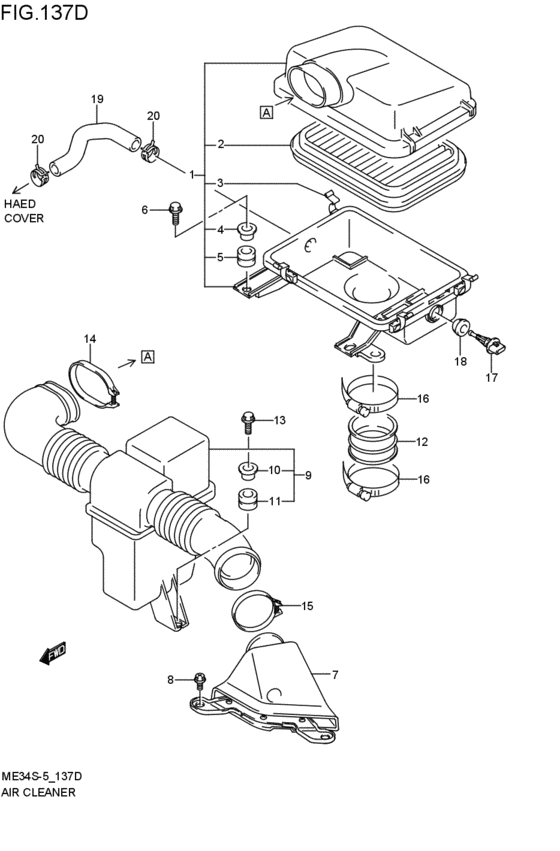

air cleaner (2005-12-01~2007-07-01) Diagram Suzuki OTHER MODELS
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 2WD
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13700-80GA1-000 CLEANER ASSY,AIR2005-12-01~2007-07-01 |
13700-80GA1-000 |
US $151.62 |
||
|
2
|
2
13780-80GA0-000 ELEMENT,AIR CLEANER2005-12-01~2007-07-01 |
13780-80GA0-000 |
from US $22.25 |
||
|
3
|
3
13755-80GA0-000 CLIP,AIR CLEANER CASE2005-12-01~2007-07-01 |
13755-80GA0-000 |
US $4.32 |
||
|
4
|
4
09169-09008-000 WASHER2005-12-01~2007-07-01 |
09169-09008-000 |
US $11 |
||
|
5
|
5
09320-11017-000 CUSHION2005-12-01~2007-07-01 |
09320-11017-000 |
from US $10.06 |
||
|
6
|
6
09136-06141-000 SCREW(6X25)2005-12-01~2007-07-01 |
09136-06141-000 |
from US $0.86 |
||
|
7
|
7
13765-79C00-000 PIPE,AIR CLNR SUCTION2005-12-01~2007-07-01 |
13765-79C00-000 |
US $21.71 |
||
|
8
|
8
02162-0612A-000 SCREWBolt, bracket 2005-12-01~2007-07-01 |
02162-0612A-000 |
from US $0.80 |
||
|
9
|
9
13870-80GA0-000 PIPE,AIR INTAKE2005-12-01~2007-07-01 |
13870-80GA0-000 |
US $116.66 |
||
|
10
|
10
09169-09008-000 WASHER2005-12-01~2007-07-01 |
09169-09008-000 |
US $11 |
||
|
11
|
11
09320-11017-000 CUSHION2005-12-01~2007-07-01 |
09320-11017-000 |
from US $10.06 |
||
|
12
|
12
13881-80G00-000 HOSE,AIR CLEANER OUTLET2005-12-01~2007-07-01 |
13881-80G00-000 |
US $7.03 |
||
|
13
|
13
02162-0620C-000 SCREW2005-12-01~2007-07-01 |
02162-0620C-000 |
from US $0.80 |
||
|
14
|
14
13875-80G00-000 CLAMP,AIR CLEANER HOSE2005-12-01~2007-07-01 |
13875-80G00-000 |
US $6.59 |
||
|
15
|
15
09402-58208-000 CLAMP2005-12-01~2007-07-01 |
09402-58208-000 |
from US $2.29 |
||
|
16
|
16
09402-70503-000 CLAMPClamp,tank 2005-12-01~2007-07-01 |
09402-70503-000 |
from US $12.64 |
||
|
17
|
17
13650-52G00-000 SENSOR,INLET AIR TEMPSensor, inlet air temp 2005-12-01~2007-07-01 |
13650-52G00-000 |
from US $50.92 |
||
|
18
|
18
13655-77E00-000
GROMMET,AIR TEMP SENSOR
2005-12-01~2007-07-01 |
13655-77E00-000 |
— | ||
| replacement | |||||
|
18
|
18
13655-77E10-000 Grommet,air Temp Sensor2005-12-01~2007-07-01 |
13655-77E10-000 |
from US $2.88 |
||
|
19
|
19
11191-80GA0-000 HOSE,BREATHER2005-12-01~2007-07-01 |
11191-80GA0-000 |
US $16.80 |
||
|
20
|
20
09401-18404-000 CLIP2005-12-01~2007-07-01 |
09401-18404-000 |
from US $1.33 |
||
