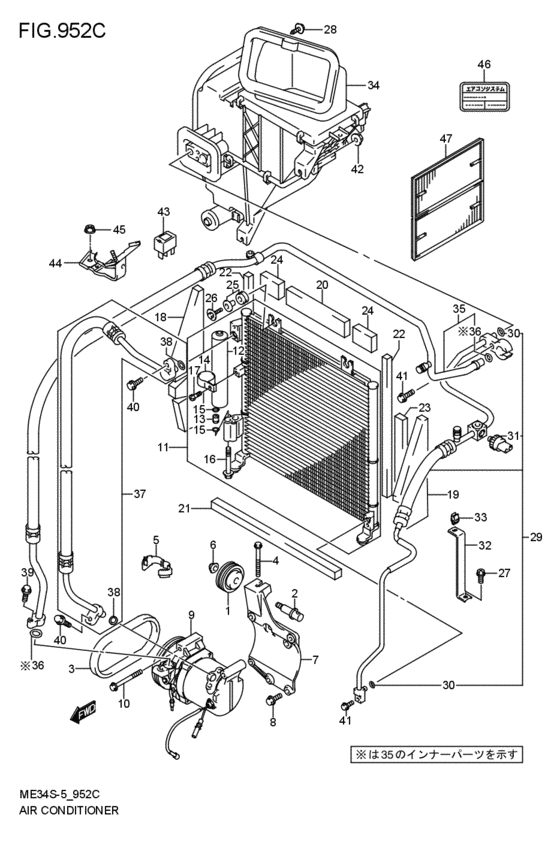

air-conditioner (2005-12-01~2007-07-01) Diagram Suzuki OTHER MODELS
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 2WD
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
49160-70AA0-000 PULLEY ASSY,BELT TENSION2005-12-01~2007-07-01 |
49160-70AA0-000 |
from US $75.71 |
||
|
2
|
2
49161-60B10-000 BOLT,BELT TENSION PULLEY2005-12-01~2007-07-01 |
49161-60B10-000 |
from US $7.84 |
||
|
3
|
3
49181-56B10-000 BELT,4PK8102005-12-01~2007-07-01 |
49181-56B10-000 |
US $32.02 |
||
|
4
|
4
09103-08352-000 BOLT(8X75)2005-12-01~2007-07-01 |
09103-08352-000 |
US $19.50 |
||
|
5
|
5
09408-00184-000 CLAMP2005-12-01~2007-07-01 |
09408-00184-000 |
from US $4.64 |
||
|
6
|
6
08316-1010A-000 NUTNut, kick starter 2005-12-01~2007-07-01 |
08316-1010A-000 |
from US $0.76 |
||
|
7
|
7
95111-80G01-000 BRACKET,CPRSR2005-12-01~2007-07-01 |
95111-80G01-000 |
US $93.10 |
||
|
8
|
8
01550-0830A-000 BOLTBolt, mount oil seal cover 2005-12-01~2007-07-01 |
01550-0830A-000 |
from US $1.12 |
||
|
9
|
9
95200-69GB0-000
コンプレッサアッシ
2005-12-01~2007-07-01 |
95200-69GB0-000 |
— | ||
| replacement | |||||
|
9
|
9
95200-69GB2-000 COMPRESSOR ASSY2005-12-01~2007-07-01 |
95200-69GB2-000 |
US $1,234.96 |
||
|
10
|
10
01550-0875A-000 BOLT2005-12-01~2007-07-01 |
01550-0875A-000 |
from US $1.60 |
||
|
11
|
11
95311-78F30-000 CONDENSER2005-12-01~2007-07-01 |
95311-78F30-000 |
US $471.68 |
||
|
12
|
12
95330-78F11-000 RECEIVER DRYER2005-12-01~2007-07-01 |
95330-78F11-000 |
US $95.31 |
||
|
13
|
13
95331-78F10-000 JOINT2005-12-01~2007-07-01 |
95331-78F10-000 |
US $8.87 |
||
|
14
|
14
95351-78F10-000 CLAMP2005-12-01~2007-07-01 |
95351-78F10-000 |
US $8.35 |
||
|
15
|
15
95891-50G00-000 O-RING,D:1.8 ID:6.72005-12-01~2007-07-01 |
95891-50G00-000 |
from US $0.96 |
||
|
16
|
16
01500-06503-000
New Genuine Part
2005-12-01~2007-07-01 |
01500-06503-000 |
— | ||
| replacement | |||||
|
16
|
16
01500-0650A-000 Bolt2005-12-01~2007-07-01 |
01500-0650A-000 |
US $0.80 |
||
|
17
|
17
01580-0612A-000 Bolt2005-12-01~2007-07-01 |
01580-0612A-000 |
from US $0.91 |
||
|
18
|
18
95811-78F20-000 PACKING,CONDENSER2005-12-01~2007-07-01 |
95811-78F20-000 |
US $12.29 |
||
|
19
|
19
95812-78F01-000 PACKING,CONDENSER2005-12-01~2007-07-01 |
95812-78F01-000 |
US $11.74 |
||
|
20
|
20
95813-78F01-000 PACKING,CONDENSER2005-12-01~2007-07-01 |
95813-78F01-000 |
US $4.71 |
||
|
21
|
21
95814-78F00-000 PACKING,CONDENSER2005-12-01~2007-07-01 |
95814-78F00-000 |
US $4.97 |
||
|
22
|
22
95815-78F00-000 PACKING,CONDENSER2005-12-01~2007-07-01 |
95815-78F00-000 |
US $4.97 |
||
|
23
|
23
95816-78F00-000 PACKING2005-12-01~2007-07-01 |
95816-78F00-000 |
US $4.97 |
||
|
24
|
24
95817-78F00-000 PACKING2005-12-01~2007-07-01 |
95817-78F00-000 |
US $4.45 |
||
|
25
|
25
95851-77A00-000 BUSH,COND2005-12-01~2007-07-01 |
95851-77A00-000 |
US $4.49 |
||
|
26
|
26
09136-06141-000 SCREW(6X25)2005-12-01~2007-07-01 |
09136-06141-000 |
from US $0.86 |
||
|
27
|
27
02162-0612A-000 SCREWBolt, bracket 2005-12-01~2007-07-01 |
02162-0612A-000 |
from US $0.80 |
||
|
28
|
28
09136-06140-000 SCREW(6X25)2005-12-01~2007-07-01 |
09136-06140-000 |
US $18.80 |
||
|
29
|
29
95731-78F20-000 HOSE,LIQUID2005-12-01~2007-07-01 |
95731-78F20-000 |
US $217.12 |
||
|
30
|
30
95891-50G00-000 O-RING,D:1.8 ID:6.72005-12-01~2007-07-01 |
95891-50G00-000 |
from US $0.96 |
||
|
31
|
31
95526-78F00-000 SWITCH,TRIPLE PRESSURE2005-12-01~2007-07-01 |
95526-78F00-000 |
US $58.51 |
||
|
32
|
32
95781-78F00-000 STAY,LIQUID HOSE2005-12-01~2007-07-01 |
95781-78F00-000 |
US $7.62 |
||
|
33
|
33
09403-08321-000 CLAMP2005-12-01~2007-07-01 |
09403-08321-000 |
US $1.76 |
||
|
34
|
34
95400-78F10-000 COOLING UNIT2005-12-01~2007-07-01 |
95400-78F10-000 |
US $647.68 |
||
|
35
|
35
95710-78F21-000
Hose,suction
2005-12-01~2007-07-01 |
95710-78F21-000 |
— | ||
| replacement | |||||
|
35
|
35
95710-78F22-000 HOSE,SUCTION2005-12-01~2007-07-01 |
95710-78F22-000 |
US $145.36 |
||
|
36
|
36
95896-50G00-000 O-RING,D:2.4 ID:13.4O ring (d:2.5,id:13.4) 2005-12-01~2007-07-01 |
95896-50G00-000 |
US $1.28 |
||
|
37
|
37
95720-78F22-000 HOSE,DISCHARGE2005-12-01~2007-07-01 |
95720-78F22-000 |
US $112.61 |
||
|
38
|
38
95895-50G00-000 O-RING,D:2.4 ID:10.82005-12-01~2007-07-01 |
95895-50G00-000 |
US $1.28 |
||
|
39
|
39
01550-0620A-000 BOLT2005-12-01~2007-07-01 |
01550-0620A-000 |
from US $0.76 |
||
|
40
|
40
01550-0620A-000 BOLT2005-12-01~2007-07-01 |
01550-0620A-000 |
from US $0.76 |
||
|
41
|
41
01550-0620A-000 BOLT2005-12-01~2007-07-01 |
01550-0620A-000 |
from US $0.76 |
||
|
42
|
42
09159-06081-000 NUT2005-12-01~2007-07-01 |
09159-06081-000 |
US $12.50 |
||
|
43
|
43
38860-76F01-000 RELAY ASSYRelay, starting motor 2005-12-01~2007-07-01 |
38860-76F01-000 |
from US $24.91 |
||
|
44
|
44
95782-78F00-000 BRACKET,SUCTION HOSE2005-12-01~2007-07-01 |
95782-78F00-000 |
US $13.21 |
||
|
45
|
45
09159-06077-000 NUT2005-12-01~2007-07-01 |
09159-06077-000 |
US $1.28 |
||
|
46
|
46
95956-84G10-000
ラベル,レフリジェラント
2005-12-01~2007-07-01 |
95956-84G10-000 |
— | ||
|
47
|
47
95860-78F10-000 FILTER2005-12-01~2007-07-01 |
95860-78F10-000 |
from US $39.06 |
||
