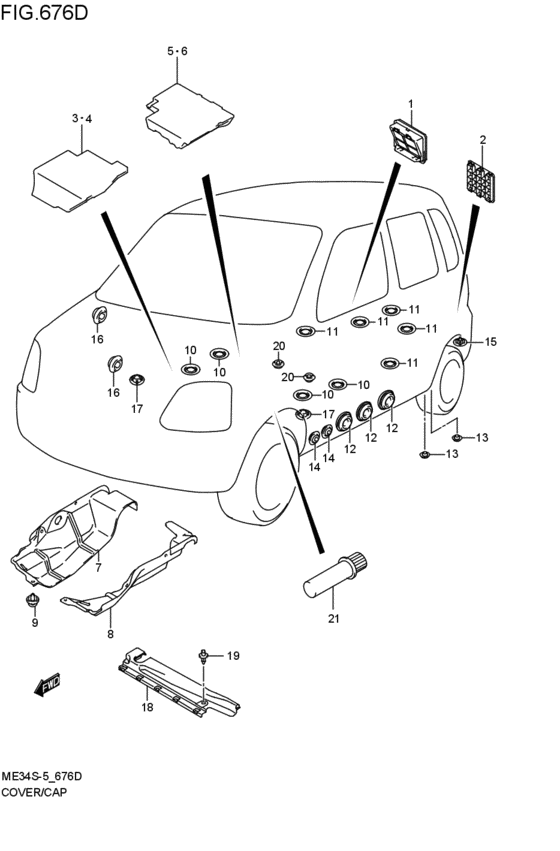

cover / cap (2005-12-01~2007-07-01) Diagram Suzuki OTHER MODELS
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 2WD
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77330-60E00-000 OUTLET,VENTILATOR2005-12-01~2007-07-01 |
77330-60E00-000 |
US $19.14 |
||
|
2
|
2
75432-75H00-000
キャップ,テールエンド
2005-12-01~2007-07-01 |
75432-75H00-000 |
— | ||
| replacement | |||||
|
2
|
2
75432-58J01-000 CAP,TAIL END2005-12-01~2007-07-01 |
75432-58J01-000 |
US $4.20 |
||
|
3
|
3
75511-78F00-000 PAD,MAIN FLOOR UPR FR,R2005-12-01~2007-07-01 |
75511-78F00-000 |
US $64.03 |
||
|
4
|
4
75521-78F00-000 PAD,MAIN FLOOR UPR FR,L2005-12-01~2007-07-01 |
75521-78F00-000 |
US $64.03 |
||
|
5
|
5
75530-82H00-000 PAD,MAIN FLOOR UPR RR,R2005-12-01~2007-07-01 |
75530-82H00-000 |
US $73.97 |
||
|
6
|
6
75540-82H00-000 PAD,MAIN FLOOR UPR RR,L2005-12-01~2007-07-01 |
75540-82H00-000 |
US $73.97 |
||
|
7
|
7
72381-78F01-000 COVER,SPLASH,R2005-12-01~2007-07-01 |
72381-78F01-000 |
US $24.10 |
||
|
8
|
8
72382-78F01-000 COVER,SPLASH,L2005-12-01~2007-07-01 |
72382-78F01-000 |
US $24.10 |
||
|
9
|
9
09409-07332-000 CLIP2005-12-01~2007-07-01 |
09409-07332-000 |
from US $1.26 |
||
|
10
|
10
75431-73H01-000 CAP,FL DRAIN2005-12-01~2007-07-01 |
75431-73H01-000 |
US $2.94 |
||
|
11
|
11
75431-73H01-000 CAP,FL DRAINリヤ フロア; 2005-12-01~2007-07-01 |
75431-73H01-000 |
US $2.94 |
||
|
12
|
12
72999-67H00-000 CAP,OD:402005-12-01~2007-07-01 |
72999-67H00-000 |
from US $4.32 |
||
|
13
|
13
09250-10016-000 CAP(OD:16.2)2005-12-01~2007-07-01 |
09250-10016-000 |
US $9.90 |
||
|
14
|
14
77111-63J00-000 CAP2005-12-01~2007-07-01 |
77111-63J00-000 |
US $1.60 |
||
|
15
|
15
09250-16013-000 CAP(OD:25)2005-12-01~2007-07-01 |
09250-16013-000 |
US $11.80 |
||
|
16
|
16
09250-25007-000 CAP(OD:25.0)2005-12-01~2007-07-01 |
09250-25007-000 |
from US $0.97 |
||
|
17
|
17
09250-25008-000 CAP(OD:31)2005-12-01~2007-07-01 |
09250-25008-000 |
US $13.20 |
||
|
18
|
18
72395-82H00-000 COVER,FR LOWER X MBR2005-12-01~2007-07-01 |
72395-82H00-000 |
US $15.24 |
||
|
19
|
19
09409-07308-5PK CLIP(BLACK)ブラック; 2005-12-01~2007-07-01 |
09409-07308-5PK |
from US $0.95 |
||
|
20
|
20
77111-63J00-000 CAP2005-12-01~2007-07-01 |
77111-63J00-000 |
US $1.60 |
||
|
21
|
21
76470-70G01-000
シグナルアッシ,フレヤ(KARRIT)
2005-12-01~2007-07-01 |
76470-70G01-000 |
— | ||
| replacement | |||||
|
21
|
21
76470-72M00-000
New Genuine Part
2005-12-01~2007-07-01 |
76470-72M00-000 |
— | ||
