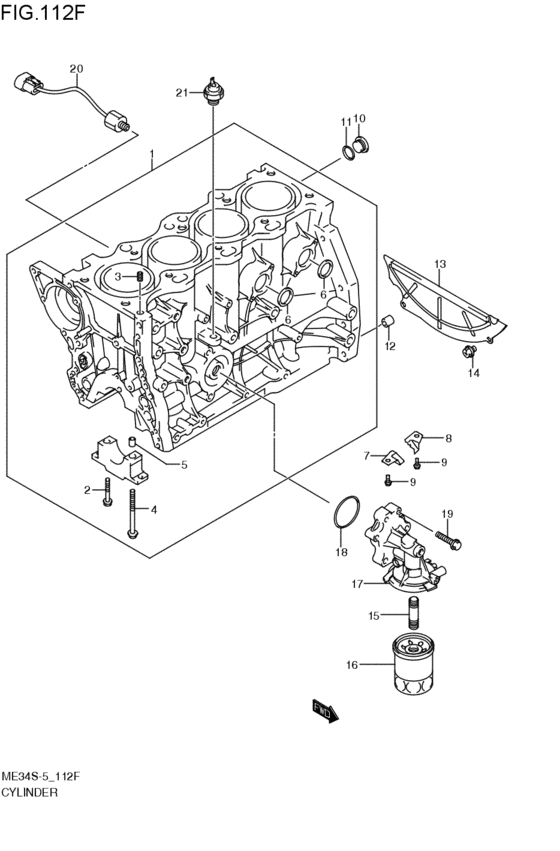

Cylinder (2005-12-01~2007-07-01) Diagram Suzuki OTHER MODELS
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 2WD
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11200-69G06-000
Block assy,cylinder
2005-12-01~2007-07-01 |
11200-69G06-000 |
— | ||
| replacements | |||||
|
1
|
1
11200-69G08-X12
BLOCK ASSY,CYLINDER M13A
2005-12-01~2007-07-01 |
11200-69G08-X12 |
— | ||
|
1
|
1
11200-69G09-X12 BLOCK ASSY,CYLINDER M13A2005-12-01~2007-07-01 |
11200-69G09-X12 |
US $1,575.52 |
||
|
2
|
2
01550-0840A-000 BOLT2005-12-01~2007-07-01 |
01550-0840A-000 |
from US $1.12 |
||
|
3
|
3
11112-73010-000 PLUG,OIL VENTURI2005-12-01~2007-07-01 |
11112-73010-000 |
US $1.60 |
||
|
4
|
4
11260-69G00-000
Bolt,crank bearing cap,10x97
2005-12-01~2007-07-01 |
11260-69G00-000 |
— | ||
| replacement | |||||
|
4
|
4
11260-69G01-000 BOLT,CRANK BEARING CAP2005-12-01~2007-07-01 |
11260-69G01-000 |
US $3.79 |
||
|
5
|
5
04211-13189-000 PIN2005-12-01~2007-07-01 |
04211-13189-000 |
from US $1.22 |
||
|
6
|
6
09241-30010-000 PLUG2005-12-01~2007-07-01 |
09241-30010-000 |
from US $1.28 |
||
|
7
|
7
11213-69G00-000 PLATE,BREATHER FRONT2005-12-01~2007-07-01 |
11213-69G00-000 |
US $2.24 |
||
|
8
|
8
11214-69G00-000 PLATE,BREATHER REAR2005-12-01~2007-07-01 |
11214-69G00-000 |
US $2.24 |
||
|
9
|
9
01550-0612A-000 BOLT2005-12-01~2007-07-01 |
01550-0612A-000 |
from US $0.76 |
||
|
10
|
10
09248-18011-000 PLUG(18X8)Plug, oil gallery 2005-12-01~2007-07-01 |
09248-18011-000 |
from US $2.63 |
||
|
11
|
11
11216-77E00-000 GASKET,M18 PLUG2005-12-01~2007-07-01 |
11216-77E00-000 |
from US $1.60 |
||
|
12
|
12
09202-08004-000 PIN(8X23)2005-12-01~2007-07-01 |
09202-08004-000 |
from US $1.51 |
||
|
13
|
13
11320-69G00-000 PLATE,CLUTCH HSG LWR2005-12-01~2007-07-01 |
11320-69G00-000 |
US $15.84 |
||
|
14
|
14
02162-0610A-000 SCREW2005-12-01~2007-07-01 |
02162-0610A-000 |
from US $0.64 |
||
|
15
|
15
11241-86FA0-000 STAND,OIL FILTER2005-12-01~2007-07-01 |
11241-86FA0-000 |
from US $5.45 |
||
|
16
|
16
16510-61A02-000
フィルタアッシ,オイル(TOKYO ROKI)
TOKYO ROKI; 2005-12-01~2007-07-01 |
16510-61A02-000 |
— | ||
| replacement | |||||
|
16
|
16
16510-61A31-000
FILTER ASSY,OIL WAKO
TOKYO ROKI; 2005-12-01~2007-07-01 |
16510-61A31-000 |
— | ||
|
16
|
16
16510-61A30-000
Filter assy,oil
WAKO; 2005-12-01~2007-07-01 |
16510-61A30-000 |
— | ||
| replacement | |||||
|
16
|
16
16510-61A31-000
FILTER ASSY,OIL WAKO
WAKO; 2005-12-01~2007-07-01 |
16510-61A31-000 |
— | ||
|
17
|
17
16531-69G10-000
Case,oil filter adapter
2005-12-01~2007-07-01 |
16531-69G10-000 |
— | ||
| replacements | |||||
|
17
|
17
16531-69G20-000 CASE,OIL FILTER ADAPTER2005-12-01~2007-07-01 |
16531-69G20-000 |
from US $44.21 |
||
|
17
|
17
16539-69G00-000 GASKET,OIL ADAPTER CASE2005-12-01~2007-07-01 |
16539-69G00-000 |
from US $3.98 |
||
|
18
|
18
09280-62003-000 O RING(D:3.5,ID:60.7)2005-12-01~2007-07-01 |
09280-62003-000 |
US $5.76 |
||
|
19
|
19
01550-0830A-000 BOLTBolt, mount oil seal cover 2005-12-01~2007-07-01 |
01550-0830A-000 |
from US $1.12 |
||
|
20
|
20
18640-78G00-000 SENSOR ASSY,KNOCK2005-12-01~2007-07-01 |
18640-78G00-000 |
from US $87.55 |
||
|
21
|
21
37820-80G01-000
Switch assy,oil press
2005-12-01~2007-07-01 |
37820-80G01-000 |
— | ||
| replacement | |||||
|
21
|
21
37820-80GP0-000 SWITCH ASSY,OIL PRESSURE2005-12-01~2007-07-01 |
37820-80GP0-000 |
from US $9.11 |
||
