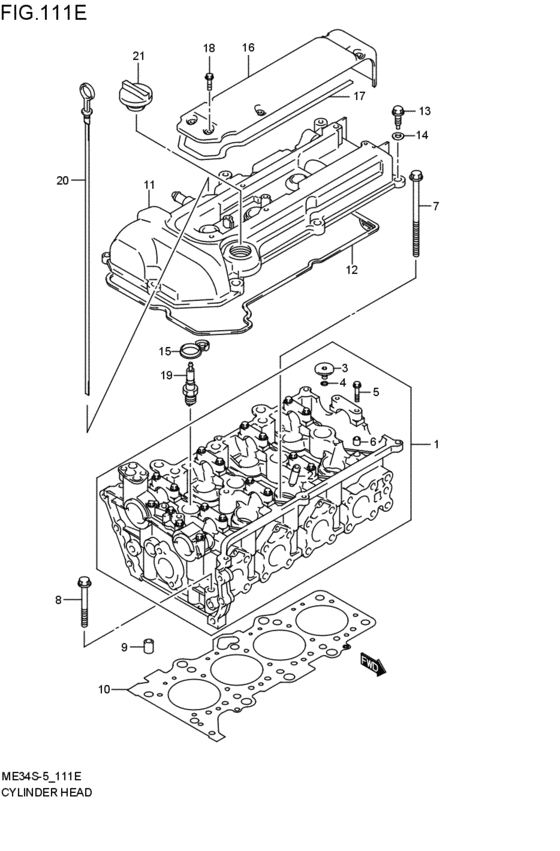

Cylinder head (2005-12-01~2007-07-01) Diagram Suzuki OTHER MODELS
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 2WD
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11100-54GE2-000
ヘッドアッシ,シリンダ
2005-12-01~2007-07-01 |
11100-54GE2-000 |
— | ||
| replacement | |||||
|
1
|
1
11100-54GE3-000 HEAD ASSY,CYLINDER2005-12-01~2007-07-01 |
11100-54GE3-000 |
US $2,772 |
||
|
2
|
2
11115-54G00-001 GUIDE,VALVE2005-12-01~2007-07-01 |
11115-54G00-001 |
from US $15.84 |
||
|
3
|
3
09248-18011-000 PLUG(18X8)Plug, oil gallery 2005-12-01~2007-07-01 |
09248-18011-000 |
from US $2.88 |
||
|
4
|
4
11216-77E00-000 GASKET,M18 PLUG2005-12-01~2007-07-01 |
11216-77E00-000 |
from US $1.74 |
||
|
5
|
5
11128-69G01-000 BOLT,CAMSHAFT HOUSING 6X392005-12-01~2007-07-01 |
11128-69G01-000 |
US $1.60 |
||
|
6
|
6
09206-08001-000 PIN(8X11)2005-12-01~2007-07-01 |
09206-08001-000 |
from US $1.26 |
||
|
7
|
7
11117-69G00-000 BOLT,CYLINDER HEAD2005-12-01~2007-07-01 |
11117-69G00-000 |
from US $4.82 |
||
|
8
|
8
01550-0880A-000 BOLT2005-12-01~2007-07-01 |
01550-0880A-000 |
from US $1.76 |
||
|
9
|
9
04211-13189-000 PIN2005-12-01~2007-07-01 |
04211-13189-000 |
from US $1.19 |
||
|
10
|
10
11141-69G03-000 GASKET,CYL HEAD2005-12-01~2007-07-01 |
11141-69G03-000 |
from US $64.96 |
||
|
11
|
11
11170-69GE3-000 Cover,cylinder head2005-12-01~2007-07-01 |
11170-69GE3-000 |
US $347.76 |
||
|
12
|
12
11189-54GE0-000 GASKET,CYL HEAD COVER2005-12-01~2007-07-01 |
11189-54GE0-000 |
from US $15.75 |
||
|
13
|
13
11178-69G01-000 BOLT,CYL HEAD COVER2005-12-01~2007-07-01 |
11178-69G01-000 |
from US $1.40 |
||
|
14
|
14
11180-69G00-000 WASHER,CYL HEAD COVER SEAL2005-12-01~2007-07-01 |
11180-69G00-000 |
from US $2.72 |
||
|
15
|
15
11179-69G01-000 GASKET,SPARK PLUG HOLE2006-01-01~2007-07-01 |
11179-69G01-000 |
from US $7.76 |
||
|
16
|
16
11181-69G03-000 COVER,CYL HEAD UPR2005-12-01~2007-07-01 |
11181-69G03-000 |
US $60 |
||
|
17
|
17
11184-69G00-000 SEAL,CYL HEAD UPPER COVER2005-12-01~2007-07-01 |
11184-69G00-000 |
from US $4.41 |
||
|
18
|
18
09103-06232-000 BOLT(6X16)2005-12-01~2007-07-01 |
09103-06232-000 |
from US $0.96 |
||
|
19
|
19
09482-00549-000 SPARK PLUG (NGK IFR5J11)NGK; 2005-12-01~2007-07-01 |
09482-00549-000 |
from US $27.20 |
||
|
20
|
20
16910-69G01-000 GAUGE,OIL LEVEL2005-12-01~2007-07-01 |
16910-69G01-000 |
from US $11.63 |
||
|
21
|
21
16920-83G10-000
Cap comp,oil filler
2005-12-01~2007-07-01 |
16920-83G10-000 |
— | ||
| replacements | |||||
|
21
|
21
16920-83G00-000
Cap,oil filler
2005-12-01~2007-07-01 |
16920-83G00-000 |
— | ||
|
21
|
21
16920-83G01-000
CAP OIL FILLER
2005-12-01~2007-07-01 |
16920-83G01-000 |
— | ||
