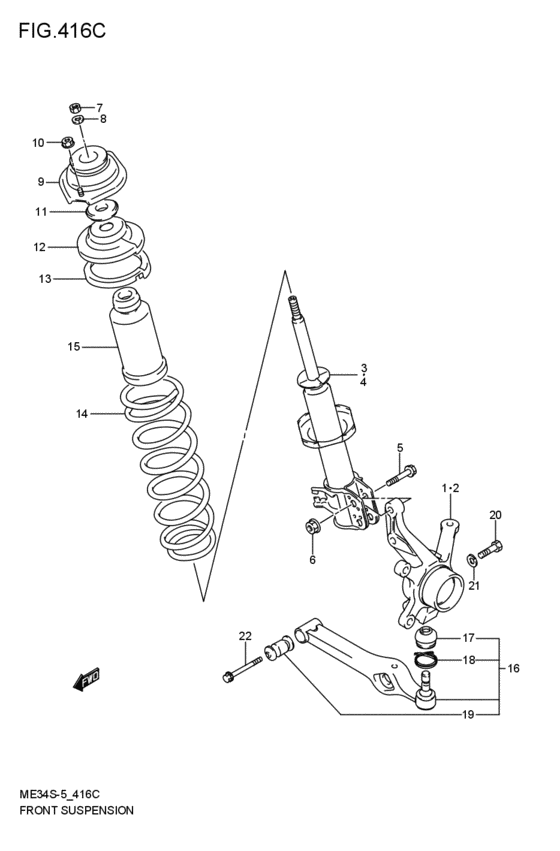

front suspension (2005-12-01~2007-07-01) Diagram Suzuki OTHER MODELS
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 2WD
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45110-78820-000 KNUCKLE SET,STEERING,R2005-12-01~2007-07-01 |
45110-78820-000 |
US $257.60 |
||
|
2
|
2
45150-78820-000 KNUCKLE SET,STRG,L2005-12-01~2007-07-01 |
45150-78820-000 |
US $560.88 |
||
|
3
|
3
41601-78F81-000 STRUT ASSY,FR SUSPENSION,R2005-12-01~2007-07-01 |
41601-78F81-000 |
US $576 |
||
|
4
|
4
41602-78F81-000 STRUT ASSY,FR SUSPENSION,L2005-12-01~2007-07-01 |
41602-78F81-000 |
US $576 |
||
|
5
|
5
09103-12051-000 BOLT(12X50)2005-12-01~2007-07-01 |
09103-12051-000 |
from US $2.40 |
||
|
6
|
6
08316-1012A-000 NUT2005-12-01~2007-07-01 |
08316-1012A-000 |
from US $0.96 |
||
|
7
|
7
08310-0012A-000 NUT2005-12-01~2007-07-01 |
08310-0012A-000 |
from US $0.76 |
||
|
8
|
8
08321-0112A-000 WASHER,LOCK2005-12-01~2007-07-01 |
08321-0112A-000 |
from US $0.76 |
||
|
9
|
9
41710-80G10-000 SUPPORT,FRONT STRUT2005-12-01~2007-07-01 |
41710-80G10-000 |
from US $63.81 |
||
|
10
|
10
09159-08123-000 NUT2005-12-01~2007-07-01 |
09159-08123-000 |
US $14.40 |
||
|
11
|
11
41741-50E00-000 BEARING,FR STRUTBearing, front strut 2005-12-01~2007-07-01 |
41741-50E00-000 |
from US $21.80 |
||
|
12
|
12
41230-50E00-000 SEAT,FRONT SPRING UPPER2005-12-01~2007-07-01 |
41230-50E00-000 |
from US $26.62 |
||
|
13
|
13
41211-70B00-000 SEAT,FRONT COIL SPRING2005-12-01~2007-07-01 |
41211-70B00-000 |
US $29.60 |
||
|
14
|
14
41111-78FB1-000 SPRING,FRONT COIL2WD; 2005-12-01~2007-07-01 |
41111-78FB1-000 |
US $105.62 |
||
|
15
|
15
42111-78F00-000 STOPPER,FR BUMP2005-12-01~2007-07-01 |
42111-78F00-000 |
US $19.14 |
||
|
16
|
16
45200-76G21-000
Arm assy,front spnsn control
2005-12-01~2007-07-01 |
45200-76G21-000 |
— | ||
| replacement | |||||
|
16
|
16
45200-76G22-000 ARM ASSY,FR SPNSN CONTROL2005-12-01~2007-07-01 |
45200-76G22-000 |
US $197.60 |
||
|
17
|
17
45723-70B00-000
SEAL SET,DUST
2005-12-01~2007-07-01 |
45723-70B00-000 |
— | ||
| replacements | |||||
|
17
|
17
45723-70B01-000
Seal Set,dust
2005-12-01~2007-07-01 |
45723-70B01-000 |
— | ||
|
17
|
17
45700-70810-000 Seal Set,dust2005-12-01~2007-07-01 |
45700-70810-000 |
US $40.80 |
||
|
18
|
18
09401-27402-000 CLIP2005-12-01~2007-07-01 |
09401-27402-000 |
US $1.28 |
||
|
19
|
19
45261-77A10-000 BUSH,FR SUSPENSION CONTROL2005-12-01~2007-07-01 |
45261-77A10-000 |
from US $15.77 |
||
|
20
|
20
09100-10169-000 BOLT(10X40)2005-12-01~2007-07-01 |
09100-10169-000 |
US $1.92 |
||
|
21
|
21
08321-0110A-000 WASHER,LOCK2005-12-01~2007-07-01 |
08321-0110A-000 |
from US $0.80 |
||
|
22
|
22
09117-10025-000
Bolt (10x89.5)
2005-12-01~2007-07-01 |
09117-10025-000 |
— | ||
| replacement | |||||
|
22
|
22
45215-72J10-000 BOLT,SPNSN ARM FR BUSHING2005-12-01~2007-07-01 |
45215-72J10-000 |
from US $2.93 |
||
