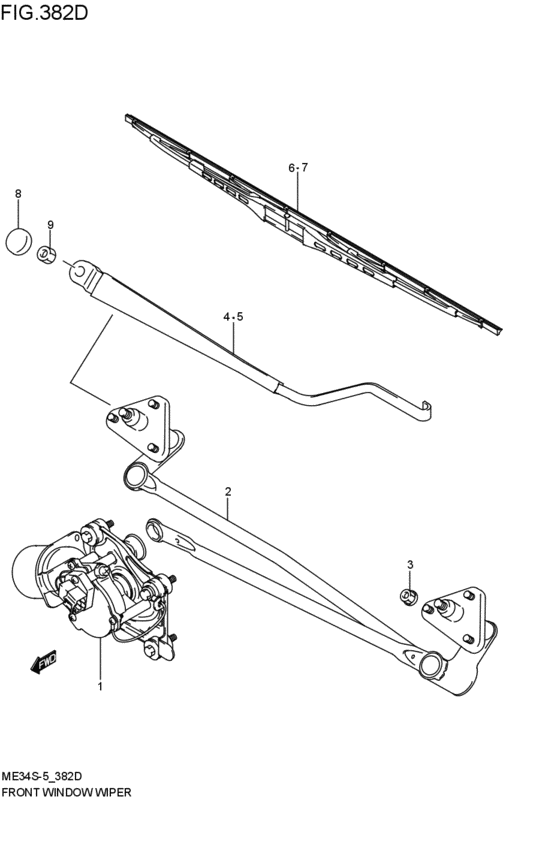

front wind windshield wiper (2005-12-01~2007-07-01) Diagram Suzuki OTHER MODELS
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 2WD
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38101-78F10-000 MOTOR&BRACKET ASSY,WIPER2005-12-01~2007-07-01 |
38101-78F10-000 |
US $345.92 |
||
|
2
|
2
38102-78F00-000 LINK ASSY,WIPER2005-12-01~2007-07-01 |
38102-78F00-000 |
US $110.03 |
||
|
3
|
3
09159-06077-000 NUT2005-12-01~2007-07-01 |
09159-06077-000 |
US $1.28 |
||
|
4
|
4
38310-78F00-000 ARM ASSY,WIPER,R2005-12-01~2007-07-01 |
38310-78F00-000 |
US $46 |
||
|
5
|
5
38330-78F00-000 ARM ASSY,WIPER,L2005-12-01~2007-07-01 |
38330-78F00-000 |
US $48.58 |
||
|
6
|
6
38340-78F00-000 BLADE ASSY,WIPER,R2005-12-01~2007-07-01 |
38340-78F00-000 |
US $20.42 |
||
|
7
|
7
38340-78F10-000 BLADE ASSY,WIPER,L2005-12-01~2007-07-01 |
38340-78F10-000 |
US $18.58 |
||
|
8
|
8
38315-60B10-000
Cap
2005-12-01~2007-07-01 |
38315-60B10-000 |
— | ||
| replacement | |||||
|
8
|
8
38315-60B11-000 CAP,WIPER PIVOT2005-12-01~2007-07-01 |
38315-60B11-000 |
US $1.60 |
||
|
9
|
9
08310-0008A-000 NUTNut, bead stopper 2005-12-01~2007-07-01 |
08310-0008A-000 |
from US $0.76 |
||
