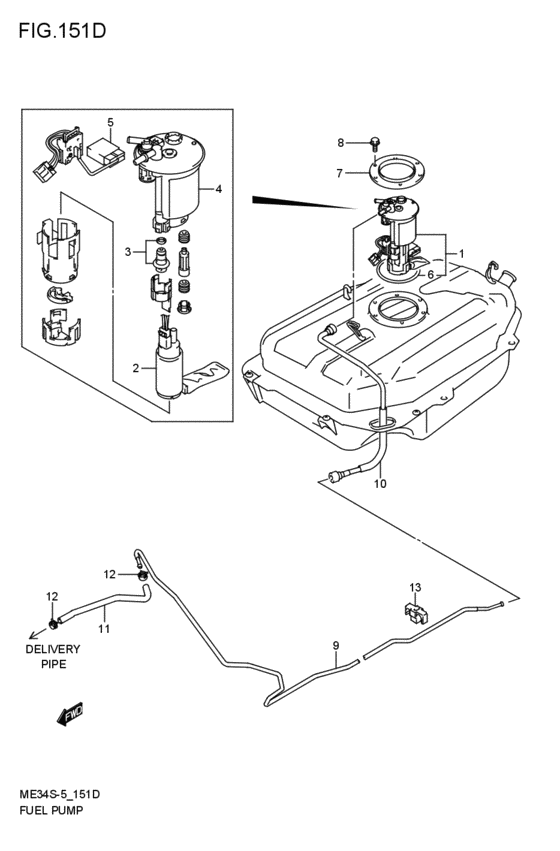

Fuel Pump (2005-12-01~2007-07-01) Diagram Suzuki OTHER MODELS
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 2WD
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15100-78870-000 PUMP SET,FUEL2005-12-01~2007-07-01 |
15100-78870-000 |
US $855.36 |
||
|
2
|
2
15110-78F10-000 PUMP ASSY,FUEL2005-12-01~2007-07-01 |
15110-78F10-000 |
US $429.44 |
||
|
3
|
3
15610-76G50-000 REGULATOR ASSY,FUEL2005-12-01~2007-07-01 |
15610-76G50-000 |
US $103.36 |
||
|
4
|
4
15310-78F12-000 FILTER ASSY,FUEL2005-12-01~2007-07-01 |
15310-78F12-000 |
US $263.12 |
||
|
5
|
5
34810-78F10-000 GAUGE ASSY,FUEL LEVEL2005-12-01~2007-07-01 |
34810-78F10-000 |
US $90.53 |
||
|
6
|
6
15111-50G01-000
GASKET,FUEL PUMP
2005-12-01~2007-07-01 |
15111-50G01-000 |
— | ||
|
7
|
7
15121-50G00-000 PLATE,FUEL PUMP2005-12-01~2007-07-01 |
15121-50G00-000 |
US $12.96 |
||
|
8
|
8
02162-0610A-000 SCREW2005-12-01~2007-07-01 |
02162-0610A-000 |
from US $0.64 |
||
|
9
|
9
15811-78F21-000 PIPE,FUEL2005-12-01~2007-07-01 |
15811-78F21-000 |
US $41.58 |
||
|
10
|
10
15812-78F10-000 PIPE,FUEL PUMP TO PIPEポンプ ツー パイプ; 2005-12-01~2007-07-01 |
15812-78F10-000 |
US $42.69 |
||
|
11
|
11
15815-79C01-000 HOSE,FUEL PIPE TO ENGパイプ ツー エンジン; 2005-12-01~2007-07-01 |
15815-79C01-000 |
US $39.38 |
||
|
12
|
12
09401-13419-000 CLIP2005-12-01~2007-07-01 |
09401-13419-000 |
from US $1.60 |
||
|
13
|
13
15893-83G01-000 CLAMP,FUEL PIPE2005-12-01~2007-07-01 |
15893-83G01-000 |
US $1.95 |
