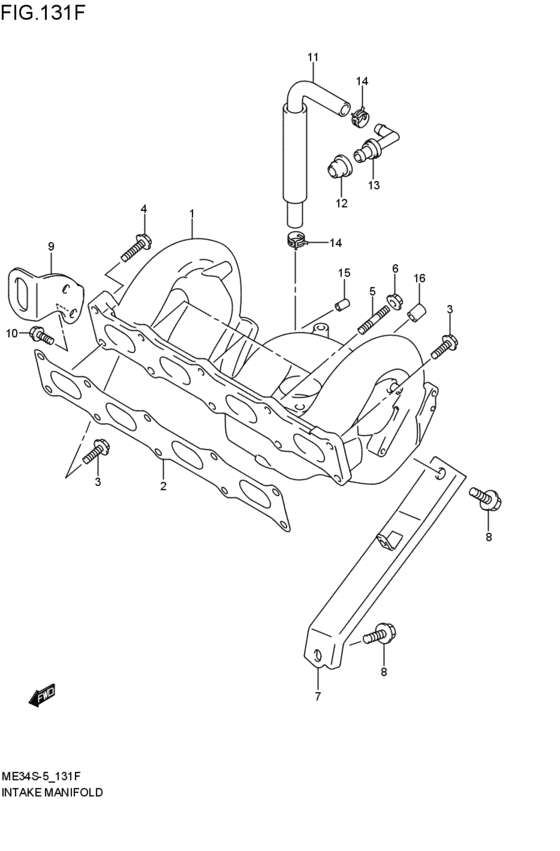

intake manifold (2005-12-01~2007-07-01) Diagram Suzuki OTHER MODELS
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 2WD
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13110-54D03-000
Manifold,intake
2005-12-01~2007-07-01 |
13110-54D03-000 |
— | ||
| replacement | |||||
|
1
|
1
13110-54D04-000 MANIFOLD,INTK2005-12-01~2007-07-01 |
13110-54D04-000 |
US $489.28 |
||
|
2
|
2
13119-69G00-000 GASKET,INTK MANF2005-12-01~2007-07-01 |
13119-69G00-000 |
from US $8.12 |
||
|
3
|
3
01550-0825A-000 BOLT2005-12-01~2007-07-01 |
01550-0825A-000 |
from US $1.06 |
||
|
4
|
4
01550-0835A-000 BOLT2005-12-01~2007-07-01 |
01550-0835A-000 |
from US $1.06 |
||
|
5
|
5
09108-08256-000 BOLT,STUD(8X36)2005-12-01~2007-07-01 |
09108-08256-000 |
US $23.90 |
||
|
6
|
6
08316-1008A-000 NUTNut, idle gear shaft 2005-12-01~2007-07-01 |
08316-1008A-000 |
from US $0.76 |
||
|
7
|
7
13161-80GA0-000 STIFFENER,INTK MANF RR2005-12-01~2007-07-01 |
13161-80GA0-000 |
US $15.16 |
||
|
8
|
8
01550-1020A-000 BOLTBolt, bal sprocket 2005-12-01~2007-07-01 |
01550-1020A-000 |
from US $0.96 |
||
|
9
|
9
11851-54G01-000 HOOK,ENGINE2005-12-01~2007-07-01 |
11851-54G01-000 |
US $5.23 |
||
|
10
|
10
01550-0820A-000 BOLTBolt, funnel bracket 2005-12-01~2007-07-01 |
01550-0820A-000 |
from US $0.96 |
||
|
11
|
11
11193-54D01-000 HOSE,PCV2005-12-01~2007-07-01 |
11193-54D01-000 |
from US $9.70 |
||
|
12
|
12
11198-58B00-000 SEAL,PCV VALVESeal, pcv valve 2005-12-01~2007-07-01 |
11198-58B00-000 |
US $5.20 |
||
| replacement | |||||
|
12
|
12
11198-98L00-000 Seal,pcv Valve2005-12-01~2007-07-01 |
11198-98L00-000 |
from US $2.74 |
||
|
13
|
13
18118-54D00-000 VALVE,PCV2005-12-01~2007-07-01 |
18118-54D00-000 |
from US $15.39 |
||
|
14
|
14
09401-13414-000 CLIPClip, pcv hose 2005-12-01~2007-07-01 |
09401-13414-000 |
from US $1.60 |
||
|
15
|
15
09250-04003-000 PLUG(OD:8)Plug (od:8) 2005-12-01~2007-07-01 |
09250-04003-000 |
US $1.12 |
||
| replacement | |||||
|
15
|
15
07130-0510B-000 BOLTBolt, sensor 2005-12-01~2007-07-01 |
07130-0510B-000 |
from US $0.96 |
||
|
16
|
16
09251-05006-000 CAP(OD:11)Cap, balancer cover 2005-12-01~2007-07-01 |
09251-05006-000 |
from US $9.11 |
||
