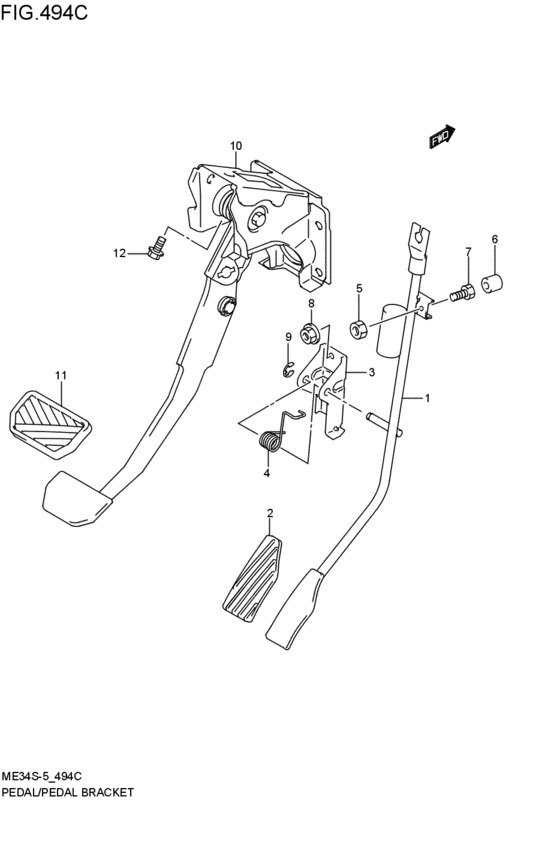

pedal / pedal bracket (2005-12-01~) Diagram Suzuki OTHER MODELS
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 2WD
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
49410-55B02-000
PEDAL,ACCELERATOR
2005-12-01~2007-07-01 |
49410-55B02-000 |
— | ||
|
2
|
2
49451-60B00-000 PAD,ACCELERATOR PEDAL2005-12-01~2007-07-01 |
49451-60B00-000 |
US $8.48 |
||
|
3
|
3
49510-80G50-000 BRACKET,ACCELERATOR PEDAL2005-12-01~2007-07-01 |
49510-80G50-000 |
US $15.90 |
||
|
4
|
4
49491-76F00-000 SPRING,ACCEL PEDAL2005-12-01~2007-07-01 |
49491-76F00-000 |
US $5.63 |
||
|
5
|
5
08310-0006A-000 NUT2005-12-01~2007-07-01 |
08310-0006A-000 |
from US $0.76 |
||
|
6
|
6
09251-05007-000 CAP(OD:13.6)2005-12-01~2007-07-01 |
09251-05007-000 |
US $26.50 |
||
|
7
|
7
09100-06150-000 BOLT(6X31)Bolt, adjuster 2005-12-01~2007-07-01 |
09100-06150-000 |
from US $1.82 |
||
|
8
|
8
09159-06076-000 NUT2005-12-01~2007-07-01 |
09159-06076-000 |
from US $1.28 |
||
|
9
|
9
08332-1107A-000 E RING2005-12-01~2007-07-01 |
08332-1107A-000 |
from US $0.96 |
||
|
10
|
10
49600-82H10-000
PEDAL,BRAKE
2005-12-01~2007-07-01 |
49600-82H10-000 |
— | ||
|
11
|
11
49751-58J10-000 PAD,PEDAL2005-12-01~2007-07-01 |
49751-58J10-000 |
from US $3.85 |
||
|
12
|
12
01551-0816C-000 Bolt2005-12-01~2007-07-01 |
01551-0816C-000 |
from US $0.96 |
