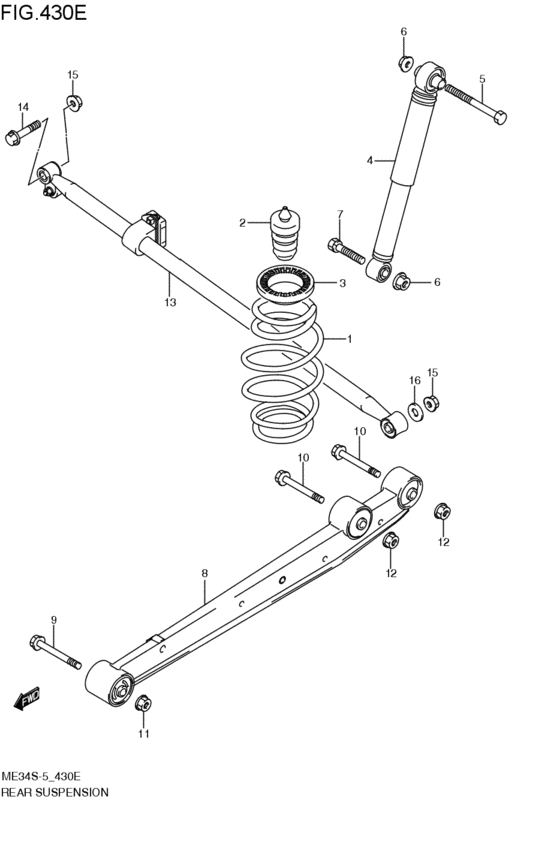

rear suspension (2005-12-01~2007-07-01) Diagram Suzuki OTHER MODELS
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 2WD
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41311-82H10-000 SPRING,REAR COIL2005-12-01~2007-07-01 |
41311-82H10-000 |
US $105.62 |
||
|
2
|
2
42251-73H00-000 STOPPER,RR BUMP2005-12-01~2007-07-01 |
42251-73H00-000 |
US $18.18 |
||
|
3
|
3
41341-79A00-000 SEAT,REAR SPRING UPPER2005-12-01~2007-07-01 |
41341-79A00-000 |
US $19.01 |
||
|
4
|
4
41800-82H10-000 ABSORBER ASSY,RR SHOCK2005-12-01~2007-07-01 |
41800-82H10-000 |
US $123.65 |
||
|
5
|
5
41981-83H00-000 BOLT,RR SHK ABSORBER UPR2005-12-01~2007-07-01 |
41981-83H00-000 |
US $6.81 |
||
|
6
|
6
08316-1012A-000 NUT2005-12-01~2007-07-01 |
08316-1012A-000 |
from US $0.96 |
||
|
7
|
7
41982-82H01-000 BOLT,RR SHK ABSORBER LWR2005-12-01~2007-07-01 |
41982-82H01-000 |
US $5.85 |
||
|
8
|
8
46200-70H00-000 ARM ASSY,RR TRAILING2005-12-01~2007-07-01 |
46200-70H00-000 |
US $171.86 |
||
|
9
|
9
09103-12044-000 BOLT(12X87)2005-12-01~2007-07-01 |
09103-12044-000 |
from US $2.48 |
||
|
10
|
10
09103-12044-000 BOLT(12X87)2005-12-01~2007-07-01 |
09103-12044-000 |
from US $2.48 |
||
|
11
|
11
08316-1012A-000 NUT2005-12-01~2007-07-01 |
08316-1012A-000 |
from US $0.96 |
||
|
12
|
12
46292-60J00-000
ナット
2005-12-01~2007-07-01 |
46292-60J00-000 |
— | ||
| replacement | |||||
|
12
|
12
09159-12068-000 NUT2005-12-01~2007-07-01 |
09159-12068-000 |
from US $1.76 |
||
|
13
|
13
46300-82H00-000
Rod assy,lateral
2WD; 2005-12-01~2007-07-01 |
46300-82H00-000 |
— | ||
| replacement | |||||
|
13
|
13
46300-82H01-000 ROD ASSY,LATERAL2WD; 2005-12-01~2007-07-01 |
46300-82H01-000 |
US $100.46 |
||
|
14
|
14
09103-12051-000 BOLT(12X50)2005-12-01~2007-07-01 |
09103-12051-000 |
from US $2.40 |
||
|
15
|
15
08316-1012A-000 NUT2005-12-01~2007-07-01 |
08316-1012A-000 |
from US $0.96 |
||
|
16
|
16
09164-12017-000 WASHER2005-12-01~2007-07-01 |
09164-12017-000 |
US $1.28 |
||
