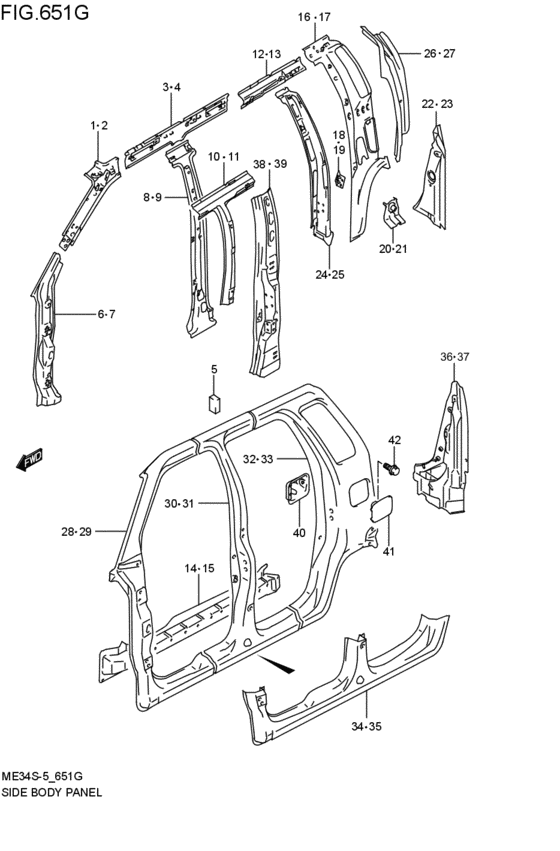

side body panel (2005-12-01~2007-07-01) Diagram Suzuki OTHER MODELS
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 2WD
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
63110-78F50-000 PANEL,FR PILLAR INNER,R2005-12-01~2007-07-01 |
63110-78F50-000 |
US $53.36 |
||
|
2
|
2
63511-76F00-000 PANEL,FR PILLAR INNER,L2005-12-01~2007-07-01 |
63511-76F00-000 |
US $44.53 |
||
|
3
|
3
63131-76F01-000 RAIL,ROOF SIDE INNER,R2005-12-01~2007-07-01 |
63131-76F01-000 |
US $68.82 |
||
|
4
|
4
63531-76F01-000 RAIL,ROOF SIDE INNER,L2005-12-01~2007-07-01 |
63531-76F01-000 |
US $68.82 |
||
|
5
|
5
75242-8230V-000 PAD2005-12-01~2007-07-01 |
75242-8230V-000 |
US $3.20 |
||
|
6
|
6
63140-78F51-000
REINFORCEMENT,HNG PILLAR FR,R
2005-12-01~2007-07-01 |
63140-78F51-000 |
— | ||
|
7
|
7
63540-76F02-000 REINFORCEMENT,HNG PILLAR FR,L2005-12-01~2007-07-01 |
63540-76F02-000 |
US $163.02 |
||
|
8
|
8
63211-76F10-000
パネル,センタピラーインナ,ライト
2005-12-01~2007-07-01 |
63211-76F10-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-1020A-000 BOLTBolt, bal sprocket 2005-12-01~2007-07-01 |
01550-1020A-000 |
from US $0.96 |
||
|
8
|
8
63211-76F11-000 PANEL,CTR PILLAR INNER,R2005-12-01~2007-07-01 |
63211-76F11-000 |
US $104.88 |
||
|
9
|
9
63611-76F10-000
パネル,センタピラーインナ,レフト
2005-12-01~2007-07-01 |
63611-76F10-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-1020A-000 BOLTBolt, bal sprocket 2005-12-01~2007-07-01 |
01550-1020A-000 |
from US $0.96 |
||
|
9
|
9
63611-76F11-000
PANEL,CTR PILLAR INNER,L
2005-12-01~2007-07-01 |
63611-76F11-000 |
— | ||
|
10
|
10
63221-78F00-000 REINFORCEMENT,CTR PILLAR UPR,R2005-12-01~2007-07-01 |
63221-78F00-000 |
US $163.02 |
||
|
11
|
11
63621-78F00-000 REINFORCEMENT,CTR PILLAR UPR,L2005-12-01~2007-07-01 |
63621-78F00-000 |
US $73.60 |
||
|
12
|
12
63222-78F00-000 REINFORCEMENT,ROOF SIDE INR,R2005-12-01~2007-07-01 |
63222-78F00-000 |
US $30.54 |
||
|
13
|
13
63622-78F00-000 REINFORCEMENT,ROOF SIDE INR,L2005-12-01~2007-07-01 |
63622-78F00-000 |
US $25.39 |
||
|
14
|
14
63230-78F51-000 STRENGTH,SIDE SILL,R2005-12-01~2007-07-01 |
63230-78F51-000 |
US $152.35 |
||
|
15
|
15
63631-76F01-000 STRENGTH,SIDE SILL,L2005-12-01~2007-07-01 |
63631-76F01-000 |
US $127.33 |
||
|
16
|
16
63311-76F01-000
パネル,クォータインナ,ライト
2WD; 2005-12-01~2006-03-01 |
63311-76F01-000 |
— | ||
| replacements | |||||
|
16
|
16
63311-78F01-000 PANEL,QUARTER INNER,R2WD; 2005-12-01~2006-03-01 |
63311-78F01-000 |
US $268.64 |
||
|
16
|
16
77111-63J00-000 CAP2WD; 2005-12-01~2006-03-01 |
77111-63J00-000 |
US $1.60 |
||
|
16
|
16
63311-78F01-000 PANEL,QUARTER INNER,R2WD; 2006-03-01~2007-07-01 |
63311-78F01-000 |
US $268.64 |
||
|
17
|
17
63711-76F02-000
パネル,クォータインナ,レフト
2WD; 2005-12-01~2006-03-01 |
63711-76F02-000 |
— | ||
| replacements | |||||
|
17
|
17
63711-78F01-000 PANEL,QUARTER INNER,L2WD; 2005-12-01~2006-03-01 |
63711-78F01-000 |
US $268.64 |
||
|
17
|
17
77111-63J00-000 CAP2WD; 2005-12-01~2006-03-01 |
77111-63J00-000 |
US $1.60 |
||
|
17
|
17
63711-78F01-000 PANEL,QUARTER INNER,L2WD; 2006-03-01~2007-07-01 |
63711-78F01-000 |
US $268.64 |
||
|
18
|
18
63313-82H00-000
REINFORCEMENT,RR WHL HS FR,R
2005-12-01~2007-07-01 |
63313-82H00-000 |
— | ||
|
19
|
19
63713-82H00-000
REINFORCEMENT,RR WHL HS FR,L
2005-12-01~2007-07-01 |
63713-82H00-000 |
— | ||
|
20
|
20
63314-76F01-000 REINFORCEMENT,SEAT BELT RETR2005-12-01~2007-07-01 |
63314-76F01-000 |
US $8.72 |
||
|
21
|
21
63714-76F00-000 REINF,SEAT BELT RETRACTOR,L2005-12-01~2007-07-01 |
63714-76F00-000 |
US $8.72 |
||
|
22
|
22
63321-82H00-000 PANEL,RR COMB HOUSE INR,R2005-12-01~2007-07-01 |
63321-82H00-000 |
US $43.06 |
||
|
23
|
23
63721-82H00-000 PANEL,RR COMB HOUSE INR,L2005-12-01~2007-07-01 |
63721-82H00-000 |
US $43.06 |
||
|
24
|
24
63330-76F00-000 REINFORCEMENT,QTR INR FR,R2005-12-01~2007-07-01 |
63330-76F00-000 |
US $105.62 |
||
|
25
|
25
63730-76F00-000 REINFORCEMENT,QTR INR FR,L2005-12-01~2007-07-01 |
63730-76F00-000 |
US $105.62 |
||
|
26
|
26
63340-76F00-000 REINFORCEMENT,QTR INR RR,R2005-12-01~2007-07-01 |
63340-76F00-000 |
US $93.47 |
||
|
27
|
27
63740-76F00-000 REINFORCEMENT,QTR INR RR,L2005-12-01~2007-07-01 |
63740-76F00-000 |
from US $39.19 |
||
|
28
|
28
64111-76FV0-P11 PANEL,A-PILLAR,R2005-12-01~2007-07-01 |
64111-76FV0-P11 |
US $224.48 |
||
|
29
|
29
64511-76FV0-P11 PANEL,A-PILLAR,L2005-12-01~2007-07-01 |
64511-76FV0-P11 |
US $224.48 |
||
|
30
|
30
64111-76FV0-P21 PANEL,B-PILLAR,R2005-12-01~2007-07-01 |
64111-76FV0-P21 |
US $230 |
||
|
31
|
31
64511-76FV0-P21 PANEL,B-PILLAR,L2005-12-01~2007-07-01 |
64511-76FV0-P21 |
US $230 |
||
|
32
|
32
64111-76FV0-P31 PANEL,QUARTER,R2005-12-01~2007-07-01 |
64111-76FV0-P31 |
US $301.76 |
||
|
33
|
33
64511-76FV0-P31 PANEL,QUARTER,L2005-12-01~2007-07-01 |
64511-76FV0-P31 |
US $301.76 |
||
|
34
|
34
64111-76FV0-P41 PANEL,SIDE SILL,R2005-12-01~2007-07-01 |
64111-76FV0-P41 |
US $237.36 |
||
|
35
|
35
64511-76FV0-P41 PANEL,SIDE SILL,L2005-12-01~2007-07-01 |
64511-76FV0-P41 |
US $237.36 |
||
|
36
|
36
64221-82H00-000 HOUSING,RR COMB LAMP OTR,R2005-12-01~2007-07-01 |
64221-82H00-000 |
US $84.64 |
||
|
37
|
37
64621-82H00-000 HOUSING,RR COMB LAMP OTR,L2005-12-01~2007-07-01 |
64621-82H00-000 |
US $84.64 |
||
|
38
|
38
64210-76F02-000 REINFORCEMENT,HNG PILLAR RR,R2005-12-01~2007-07-01 |
64210-76F02-000 |
US $128.06 |
||
|
39
|
39
64610-76F02-000 REINFORCEMENT,HNG PILLAR RR,L2005-12-01~2007-07-01 |
64610-76F02-000 |
US $128.06 |
||
|
40
|
40
64561-76F01-000 BOX,FUEL INLET2005-12-01~2007-07-01 |
64561-76F01-000 |
US $30.36 |
||
|
41
|
41
64570-76F02-000
リッド,フューエル,インレット
2005-12-01~2007-07-01 |
64570-76F02-000 |
— | ||
| replacement | |||||
|
41
|
41
64570-76F03-000 LID,FUEL INLET2005-12-01~2007-07-01 |
64570-76F03-000 |
US $37.54 |
||
|
42
|
42
02162-0612A-000 SCREWBolt, bracket 2005-12-01~2007-07-01 |
02162-0612A-000 |
from US $0.80 |
||
