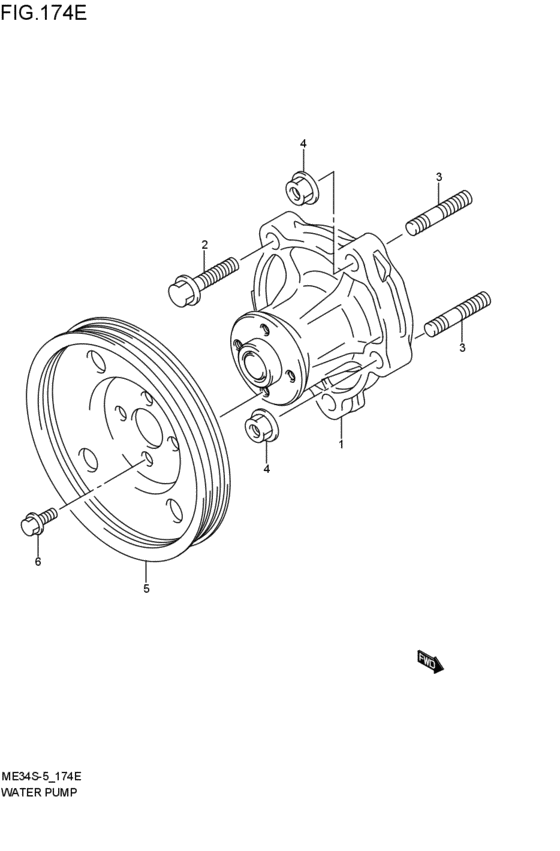

water pump (2005-12-01~2007-07-01) Diagram Suzuki OTHER MODELS
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 2WD
- transmission
- AT
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17400-69G01-000
Pump assy,water
2005-12-01~2007-07-01 |
17400-69G01-000 |
— | ||
| replacement | |||||
|
1
|
1
17400-69G05-000 Pump Assy,Water2005-12-01~2007-07-01 |
17400-69G05-000 |
from US $100.40 |
||
|
2
|
2
01550-0835A-000 BOLT2005-12-01~2007-07-01 |
01550-0835A-000 |
from US $1.06 |
||
|
3
|
3
01421-0830A-000 BOLT,STUD2005-12-01~2007-07-01 |
01421-0830A-000 |
from US $1.44 |
||
|
4
|
4
08316-1008A-000 NUTNut, idle gear shaft 2005-12-01~2007-07-01 |
08316-1008A-000 |
from US $0.76 |
||
|
5
|
5
17511-69G01-000 PULLEY,WATER PUMP2005-12-01~2007-07-01 |
17511-69G01-000 |
from US $22.32 |
||
|
6
|
6
01550-0610A-000 BOLT2005-12-01~2007-07-01 |
01550-0610A-000 |
from US $0.80 |
||
