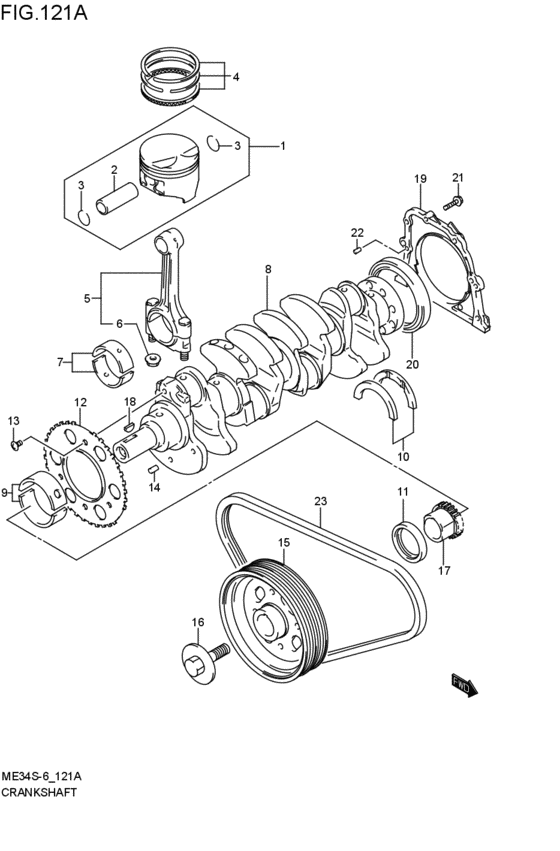

crankshaft (2007-06-01~) Diagram Suzuki OTHER MODELS
- Year
- 2007 - 2011
- Sales region
- Japan
- drive
- 2WD
- grade
- XM
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12100-69811-000 PISTON SET,STD2007-06-01~ |
12100-69811-000 |
from US $56.63 |
||
|
2
|
2
12151-85FA0-000 PIN,PISTON2007-06-01~ |
12151-85FA0-000 |
from US $7.07 |
||
|
3
|
3
09381-20004-000 CIRCLIPSnap ring 2007-06-01~ |
09381-20004-000 |
from US $1.51 |
||
|
4
|
4
12140-54GA0-000 RING SET,PISTON STD2007-06-01~ |
12140-54GA0-000 |
from US $42.91 |
||
|
5
|
5
12160-70H00-000
Connrod assy
2007-06-01~ |
12160-70H00-000 |
— | ||
| replacement | |||||
|
5
|
5
12160-70H10-000 CONNROD ASSY2007-06-01~ |
12160-70H10-000 |
from US $80.87 |
||
|
6
|
6
09159-08114-000 NUT2007-06-01~ |
09159-08114-000 |
US $15.50 |
||
|
7
|
7
12100-70880-0A0 BEARING SET,CONNROD GREENカラー:グリーン; 2007-06-01~ |
12100-70880-0A0 |
from US $14.76 |
||
|
7
|
7
12100-70880-0B0 BEARING SET,CONNROD BLACKカラー:ブラック; 2007-06-01~ |
12100-70880-0B0 |
from US $14.81 |
||
|
7
|
7
12100-70880-0C0 BEARING SET,CONNROD NONカラー:ナシ; 2007-06-01~ |
12100-70880-0C0 |
from US $14.65 |
||
|
7
|
7
12100-70880-0D0 BEARING SET,CONNROD YELLOWカラー:イエロー; 2007-06-01~ |
12100-70880-0D0 |
US $15.46 |
||
|
7
|
7
12100-70880-0E0 BEARING SET,CONNROD BLUEカラー:ブルー; 2007-06-01~ |
12100-70880-0E0 |
US $15.46 |
||
|
7
|
7
12100-70880-025 BEARING SET,CONNROD RED (US 0.25, T1.625)カラー:レッド; 2007-06-01~ |
12100-70880-025 |
US $24.80 |
||
|
8
|
8
12221-69G10-000 CRANKSHAFT2007-06-01~ |
12221-69G10-000 |
from US $563.36 |
||
|
9
|
9
12300-69850-0AA BEARING SET,CRANK RED/PINKカラー:レッド/ピンク; 2007-06-01~ |
12300-69850-0AA |
from US $15.66 |
||
|
9
|
9
12300-69850-0BA BEARING SET,CRANK RED/PURPLEカラー:レッド/パープル; 2007-06-01~ |
12300-69850-0BA |
from US $9.65 |
||
|
9
|
9
12300-69850-0CA BEARING SET,CRANK RED/BROWNカラー:レッド/ブラウン; 2007-06-01~ |
12300-69850-0CA |
US $31.20 |
||
|
9
|
9
12300-75840-0AA BEARING SET,CRANK RED/GREENカラー:レッド/グリーン; 2007-06-01~ |
12300-75840-0AA |
US $22.26 |
||
|
9
|
9
12300-75840-0BA BEARING SET,CRANK (RED/PINK)カラー:レッド/ブラック; 2007-06-01~ |
12300-75840-0BA |
US $22.26 |
||
|
9
|
9
12340-69GA0-0A0 BEARING SET,CRANKSHAFT STD (PINK)カラー:ピンク; 2007-06-01~ |
12340-69GA0-0A0 |
from US $16.56 |
||
|
9
|
9
12340-69GA0-0B0 BEARING SET,CRANKSHAFT STD (PURPLE)カラー:パープル; 2007-06-01~ |
12340-69GA0-0B0 |
from US $14.99 |
||
|
9
|
9
12340-69GA0-0C0 BEARING SET,CRANKSHAFT STD (BROWN)カラー:ブラウン; 2007-06-01~ |
12340-69GA0-0C0 |
US $16.56 |
||
|
9
|
9
12340-75FA0-0A0 BEARING SET,CRANKSHAFT STD (GREEN)カラー:グリーン; 2007-06-01~ |
12340-75FA0-0A0 |
US $24.80 |
||
|
9
|
9
12340-75FA0-0B0 BEARING SET,CRANKSHAFT STD (BLACK)カラー:ブラック; 2007-06-01~ |
12340-75FA0-0B0 |
from US $15.44 |
||
|
10
|
10
12300-60850-000
Bearing set, thrust
2007-06-01~ |
12300-60850-000 |
— | ||
| replacement | |||||
|
10
|
10
12300-78890-000 BEARING SET,CRANK THRUST2007-06-01~ |
12300-78890-000 |
from US $13.07 |
||
|
10
|
10
12300-60850-012
Bearing set,crank thrust
2007-06-01~ |
12300-60850-012 |
— | ||
| replacement | |||||
|
10
|
10
12300-78890-012 BEARING SET,CRANK THRUST US2007-06-01~ |
12300-78890-012 |
from US $12.96 |
||
|
11
|
11
09283-41001-000
Seal,oil,41x53x6
2007-06-01~ |
09283-41001-000 |
— | ||
| replacement | |||||
|
11
|
11
09283-41003-000 SEAL,OIL(41X53X6)2007-06-01~ |
09283-41003-000 |
from US $8.75 |
||
|
12
|
12
12222-69G00-000 PLATE,SENSOR2007-06-01~ |
12222-69G00-000 |
from US $6.71 |
||
|
13
|
13
12223-69G00-000 SCREW,SENSOR PLATE 6X102007-06-01~ |
12223-69G00-000 |
from US $0.75 |
||
|
14
|
14
09205-05006-000 PIN,SPRING(5X12)2007-06-01~ |
09205-05006-000 |
from US $1.73 |
||
|
15
|
15
12610-69G00-000 PULLEY,CRANKSHAFT2007-06-01~ |
12610-69G00-000 |
US $136.16 |
||
|
16
|
16
12619-69G01-000
ボルト,クランクプーリ,12X38.5
2007-06-01~ |
12619-69G01-000 |
— | ||
| replacement | |||||
|
16
|
16
12619-69G10-000 BOLT,CRANK PULLEY2007-06-01~ |
12619-69G10-000 |
from US $8.01 |
||
|
17
|
17
12631-54G00-000
Sprocket,crankshaft timing
2007-06-01~ |
12631-54G00-000 |
— | ||
| replacement | |||||
|
17
|
17
12631-54G11-000 SPROCKET,CRANKSHAFT TIMING2007-06-01~ |
12631-54G11-000 |
US $44 |
||
|
18
|
18
08341-31059-000 KEYKey 2007-06-01~ |
08341-31059-000 |
from US $1.49 |
||
|
19
|
19
11341-69G10-000
Housing,oil seal
2007-06-01~ |
11341-69G10-000 |
— | ||
| replacements | |||||
|
19
|
19
09283-83002-000 SEAL,OIL(83X97X7)2007-06-01~ |
09283-83002-000 |
from US $16.85 |
||
|
19
|
19
11341-69G20-000 HOUSING,OIL SEAL2007-06-01~ |
11341-69G20-000 |
US $42.32 |
||
|
20
|
20
09283-83001-000 SEAL,OIL(83X103X8), REAR2007-06-01~ |
09283-83001-000 |
from US $33.71 |
||
|
21
|
21
09103-06282-000 BOLT(6X25)Bolt, shift cam (6x25) 2007-06-01~ |
09103-06282-000 |
from US $3.42 |
||
|
22
|
22
09206-06005-000 PIN(4X6X11)2007-06-01~ |
09206-06005-000 |
from US $1.04 |
||
|
23
|
23
95141-50F01-000 BELT,WATER PUMP 4PK8352007-06-01~ |
95141-50F01-000 |
from US $25.85 |
||
