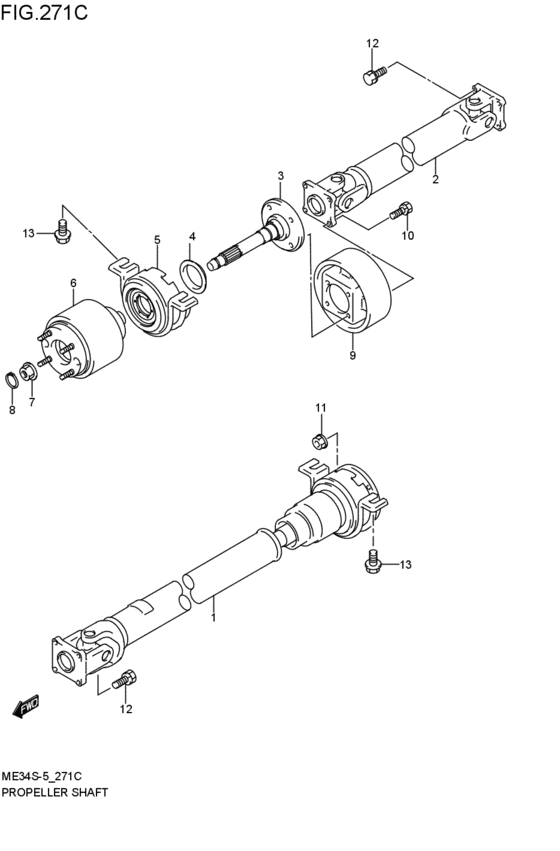

propeller shaft (4WD; 2005-12-01~2007-07-01) Diagram Suzuki OTHER MODELS
- Year
- 2005 - 2006
- Sales region
- Japan
- Engine
- M13A
- drive
- 4WD
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27101-70H40-000 SHAFT ASSY,PROPELLER FRONT4WD; 2005-12-01~2007-07-01 |
27101-70H40-000 |
US $834.24 |
||
|
2
|
2
27102-70H80-000 SHAFT ASSY,PROPELLER REAR4WD; 2005-12-01~2007-07-01 |
27102-70H80-000 |
US $782.40 |
||
|
3
|
3
27112-76G40-000
シャフト,カップリング
トリツケホウホウ:ナット>サークリップ; 4WD; 2005-12-01~2007-04-01 |
27112-76G40-000 |
— | ||
| replacements | |||||
|
3
|
3
27112-76G41-000 SHAFT,COUPLINGトリツケホウホウ:ナット>サークリップ; 4WD; 2005-12-01~2007-04-01 |
27112-76G41-000 |
US $128.06 |
||
|
3
|
3
08331-31179-000 CIRCLIPトリツケホウホウ:ナット>サークリップ; 4WD; 2005-12-01~2007-04-01 |
08331-31179-000 |
from US $0.96 |
||
|
3
|
3
08331-3117A-000
Circlip, kick idle gr
トリツケホウホウ:ナット>サークリップ; 4WD; 2005-12-01~2007-04-01 |
08331-3117A-000 |
— | ||
|
3
|
3
27112-76G41-000 SHAFT,COUPLING4WD; 2007-04-01~2007-07-01 |
27112-76G41-000 |
US $128.06 |
||
|
4
|
4
27132-58J00-000 COVER,CENTER BEARING DUST4WD; 2005-12-01~2007-07-01 |
27132-58J00-000 |
US $7.40 |
||
|
5
|
5
27170-76G00-000 SUPPORT,CENTER BEARING4WD; 2005-12-01~2007-07-01 |
27170-76G00-000 |
from US $170.62 |
||
|
6
|
6
27610-76G24-000
Coupling,rear drive
4WD; 2005-12-01~2007-07-01 |
27610-76G24-000 |
— | ||
| replacement | |||||
|
6
|
6
27610-76G25-000 COUPLING,RR DRIVE4WD; 2005-12-01~2007-07-01 |
27610-76G25-000 |
US $1,041.92 |
||
|
7
|
7
09159-12001-000 NUTトリツケホウホウ:ナット>サークリップ; 4WD; 2005-12-01~2007-04-01 |
09159-12001-000 |
US $56.30 |
||
|
8
|
8
08331-3117A-000
Circlip, kick idle gr
4WD; 2007-04-01~2007-07-01 |
08331-3117A-000 |
— | ||
|
9
|
9
27175-70H00-000
ダンパ,プロペラシャフト
4WD; 2005-12-01~2007-07-01 |
27175-70H00-000 |
— | ||
| replacement | |||||
|
9
|
9
27175-70H20-000 DAMPER,PROPELLER SHAFT4WD; 2005-12-01~2007-07-01 |
27175-70H20-000 |
US $164.86 |
||
|
10
|
10
09117-08052-000 BOLT(8X21.5)4WD; 2005-12-01~2007-07-01 |
09117-08052-000 |
US $12.50 |
||
|
11
|
11
09159-08075-000 NUT4WD; 2005-12-01~2007-07-01 |
09159-08075-000 |
from US $0.91 |
||
|
12
|
12
09117-08103-000 BOLT(8X18)4WD; 2005-12-01~2007-07-01 |
09117-08103-000 |
from US $1.87 |
||
|
13
|
13
09118-10073-000 BOLT(10X30)4WD; 2005-12-01~2007-07-01 |
09118-10073-000 |
US $1.44 |
||
