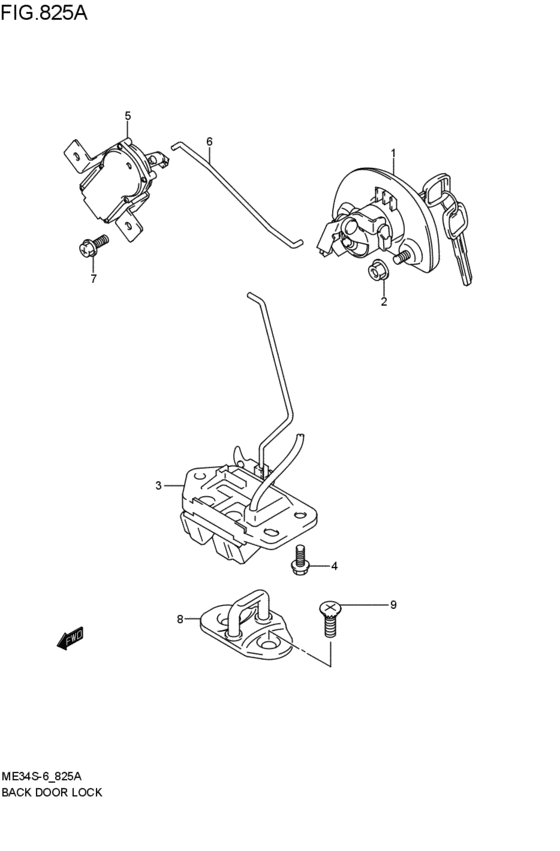

back door lock (2007-06-01~) Diagram Suzuki OTHER MODELS
- Year
- 2007 - 2011
- Sales region
- Japan
- drive
- 4WD
- grade
- XM
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82500-78820-ZJ3 CYLINDER,BACK DR LOCKXM,XV,XG; 2007-06-01~ |
82500-78820-ZJ3 |
US $114.82 |
||
|
1
|
1
82500-78820-Z2S CYLINDER,BACK DR LOCKXM; 2007-06-01~ |
82500-78820-Z2S |
US $114.82 |
||
|
1
|
1
82500-78820-Z7T CYLINDER,BACK DR LOCKXM,XV,XG,XMA; 2007-06-01~ |
82500-78820-Z7T |
US $114.82 |
||
|
1
|
1
82500-78820-Z9T
シリンダアッシ,バックドアロック(レッド)
XM,XMA; 2007-06-01~ |
82500-78820-Z9T |
— | ||
|
2
|
2
08316-1006A-000 NUT2007-06-01~ |
08316-1006A-000 |
from US $0.80 |
||
|
3
|
3
82510-78F01-000 LATCH ASSY,BACK DR2007-06-01~ |
82510-78F01-000 |
from US $80.22 |
||
|
4
|
4
02162-0616A-000 SCREW2007-06-01~ |
02162-0616A-000 |
from US $1.04 |
||
| replacement | |||||
|
4
|
4
02162-0616B-000 SCREWBolt, adjust 2007-06-01~ |
02162-0616B-000 |
from US $0.80 |
||
|
5
|
5
82550-76F00-000 ACTUATOR,BACK DR LATCH2007-06-01~ |
82550-76F00-000 |
US $110.40 |
||
|
6
|
6
82555-76F00-000 ROD,BACK DOOR ACTUATOR2007-06-01~ |
82555-76F00-000 |
US $4.75 |
||
|
7
|
7
02162-0616A-000 SCREW2007-06-01~ |
02162-0616A-000 |
from US $1.04 |
||
| replacement | |||||
|
7
|
7
02162-0616B-000 SCREWBolt, adjust 2007-06-01~ |
02162-0616B-000 |
from US $0.80 |
||
|
8
|
8
82650-75F00-000 STRIKER,BACK DOOR2007-06-01~ |
82650-75F00-000 |
US $12.40 |
||
|
9
|
9
09137-08004-000 SCREW(8X18)2007-06-01~ |
09137-08004-000 |
from US $0.90 |
||
| replacement | |||||
|
9
|
9
09137-08011-000 SCREW(8X18)2007-06-01~ |
09137-08011-000 |
US $1.44 |
||
