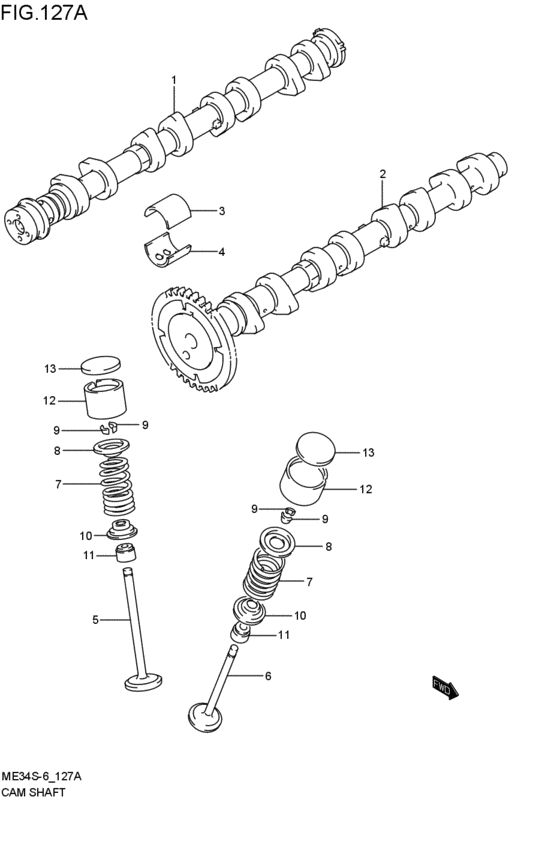

camshaft / valve (2007-06-01~) Diagram Suzuki OTHER MODELS
- Year
- 2007 - 2011
- Sales region
- Japan
- drive
- 4WD
- grade
- XM
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12710-69GE0-000
Camshaft,intk
2007-06-01~ |
12710-69GE0-000 |
— | ||
| replacement | |||||
|
1
|
1
12710-69GE1-000 CAMSHAFT COMP,INTK2007-06-01~ |
12710-69GE1-000 |
US $414.96 |
||
|
2
|
2
12720-54G11-000
Camshaft,exh
2007-06-01~ |
12720-54G11-000 |
— | ||
| replacement | |||||
|
2
|
2
12720-54G12-000 Cam shaft, exhaust2007-06-01~ |
12720-54G12-000 |
US $396.72 |
||
|
3
|
3
12737-69GE1-000 BEARING,CAMSHAFT UPPER2007-06-01~ |
12737-69GE1-000 |
US $38.40 |
||
|
4
|
4
12738-69GE1-000 BEARING,CAMSHAFT LOWER2007-06-01~ |
12738-69GE1-000 |
from US $16.16 |
||
|
5
|
5
12911-54G00-000
Valve,intake
2007-06-01~ |
12911-54G00-000 |
— | ||
| replacements | |||||
|
5
|
5
12911-54G70-000
Valve,intake
2007-06-01~ |
12911-54G70-000 |
— | ||
|
5
|
5
12911-54G71-000 Valve,intake2007-06-01~ |
12911-54G71-000 |
from US $20.30 |
||
|
6
|
6
12915-54G50-000 Valve, Exhaust2007-06-01~ |
12915-54G50-000 |
from US $30.94 |
||
|
7
|
7
12921-71C01-000 SPRING,VALVE2007-06-01~ |
12921-71C01-000 |
US $7.04 |
||
|
8
|
8
12931-78G00-000 RETAINER,VALVE SPRINGRetainer, valve spring 2007-06-01~ |
12931-78G00-000 |
from US $2.88 |
||
|
9
|
9
12932-24400-000 COTTER,VALVE2007-06-01~ |
12932-24400-000 |
from US $1.17 |
||
|
10
|
10
12933-69G10-000 SEAT,VALVE SPRING2007-06-01~ |
12933-69G10-000 |
from US $3.35 |
||
|
11
|
11
09289-05012-000 SEAL,OIL(5.5X11.5X9.3)2007-06-01~ |
09289-05012-000 |
from US $3.94 |
||
|
12
|
12
12891-69G00-000 TAPPET,T:5.502007-06-01~ |
12891-69G00-000 |
US $31.20 |
||
|
13
|
13
12892-69G10-218 SHIM,TAPPET T:2.1752007-06-01~ |
12892-69G10-218 |
US $10.08 |
||
|
13
|
13
12892-69G10-220 SHIM,TAPPET T:2.2002007-06-01~ |
12892-69G10-220 |
from US $7.36 |
||
|
13
|
13
12892-69G10-223 SHIM,TAPPET T:2.2252007-06-01~ |
12892-69G10-223 |
from US $7.36 |
||
|
13
|
13
12892-69G10-225 SHIM,TAPPET T:2.2502007-06-01~ |
12892-69G10-225 |
from US $8.24 |
||
|
13
|
13
12892-69G10-228 SHIM,TAPPET T:2.2752007-06-01~ |
12892-69G10-228 |
from US $6.93 |
||
|
13
|
13
12892-69G10-230 SHIM,TAPPET T:2.3002007-06-01~ |
12892-69G10-230 |
from US $6.89 |
||
|
13
|
13
12892-69G10-233 SHIM,TAPPET T:2.3252007-06-01~ |
12892-69G10-233 |
from US $7.04 |
||
|
13
|
13
12892-69G10-235 SHIM,TAPPET T:2.3502007-06-01~ |
12892-69G10-235 |
from US $6.44 |
||
|
13
|
13
12892-69G10-238 SHIM,TAPPET T:2.3752007-06-01~ |
12892-69G10-238 |
from US $6.12 |
||
|
13
|
13
12892-69G10-240 SHIM,TAPPET T:2.4002007-06-01~ |
12892-69G10-240 |
from US $6.93 |
||
|
13
|
13
12892-69G10-243 SHIM,TAPPET T:2.4252007-06-01~ |
12892-69G10-243 |
US $10.08 |
||
|
13
|
13
12892-69G10-245 SHIM,TAPPET T:2.4502007-06-01~ |
12892-69G10-245 |
from US $8.57 |
||
|
13
|
13
12892-69G10-248 SHIM,TAPPET T:2.4752007-06-01~ |
12892-69G10-248 |
from US $7.02 |
||
|
13
|
13
12892-69G10-250 SHIM,TAPPET T:2.5002007-06-01~ |
12892-69G10-250 |
from US $6.89 |
||
|
13
|
13
12892-69G10-253 SHIM,TAPPET T:2.5252007-06-01~ |
12892-69G10-253 |
US $10.08 |
||
|
13
|
13
12892-69G10-255 SHIM,TAPPET T:2.5502007-06-01~ |
12892-69G10-255 |
from US $6.55 |
||
|
13
|
13
12892-69G10-258 SHIM,TAPPET T:2.5752007-06-01~ |
12892-69G10-258 |
US $10.08 |
||
|
13
|
13
12892-69G10-260 SHIM,TAPPET T:2.6002007-06-01~ |
12892-69G10-260 |
from US $6.71 |
||
|
13
|
13
12892-69G10-263 SHIM,TAPPET T:2.6252007-06-01~ |
12892-69G10-263 |
from US $10.08 |
||
|
13
|
13
12892-69G10-265 SHIM,TAPPET T:2.6502007-06-01~ |
12892-69G10-265 |
from US $8.35 |
||
|
13
|
13
12892-69G10-268 SHIM,TAPPET T:2.6752007-06-01~ |
12892-69G10-268 |
US $7.36 |
||
|
13
|
13
12892-69G10-270 SHIM,TAPPET T:2.7002007-06-01~ |
12892-69G10-270 |
US $10.08 |
||
|
13
|
13
12892-69G10-273 SHIM,TAPPET T:2.7252007-06-01~ |
12892-69G10-273 |
US $7.36 |
||
|
13
|
13
12892-69G10-275 SHIM,TAPPET T:2.7502007-06-01~ |
12892-69G10-275 |
US $7.36 |
||
|
13
|
13
12892-69G10-278 SHIM,TAPPET T:2.7752007-06-01~ |
12892-69G10-278 |
US $7.36 |
||
|
13
|
13
12892-69G10-280 SHIM,TAPPET T:2.8002007-06-01~ |
12892-69G10-280 |
US $7.36 |
||
|
13
|
13
12892-69G10-283 SHIM,TAPPET T:2.8252007-06-01~ |
12892-69G10-283 |
US $7.36 |
||
|
13
|
13
12892-69G10-285 SHIM,TAPPET T:2.8502007-06-01~ |
12892-69G10-285 |
US $7.36 |
||
|
13
|
13
12892-69G10-288 SHIM,TAPPET T:2.8752007-06-01~ |
12892-69G10-288 |
US $7.36 |
||
|
13
|
13
12892-69G10-290 SHIM,TAPPET T:2.9002007-06-01~ |
12892-69G10-290 |
US $7.36 |
||
|
13
|
13
12892-69G10-293 SHIM,TAPPET T:2.9252007-06-01~ |
12892-69G10-293 |
US $7.36 |
||
|
13
|
13
12892-69G10-295 SHIM,TAPPET T:2.9502007-06-01~ |
12892-69G10-295 |
US $7.36 |
||
|
13
|
13
12892-69G10-298 SHIM,TAPPET T:2.9752007-06-01~ |
12892-69G10-298 |
US $7.36 |
||
|
13
|
13
12892-69G10-300 SHIM,TAPPET T:3.0002007-06-01~ |
12892-69G10-300 |
US $9.58 |
||
