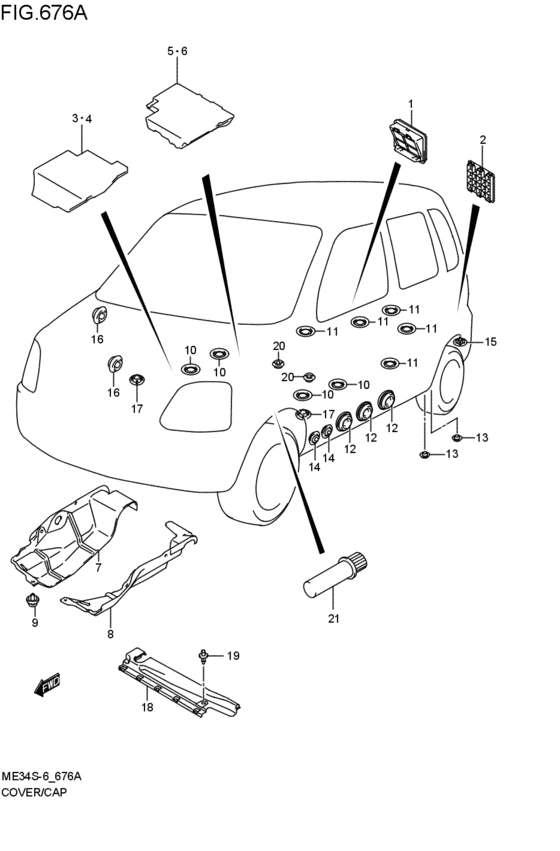

cover / cap (2007-06-01~) Diagram Suzuki OTHER MODELS
- Year
- 2007 - 2011
- Sales region
- Japan
- drive
- 4WD
- grade
- XM
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77330-60E00-000 OUTLET,VENTILATOR2007-06-01~ |
77330-60E00-000 |
US $19.14 |
||
|
2
|
2
75432-58J00-000
Cap,tail end
2007-06-01~ |
75432-58J00-000 |
— | ||
| replacement | |||||
|
2
|
2
75432-58J01-000 CAP,TAIL END2007-06-01~ |
75432-58J01-000 |
US $4.20 |
||
|
3
|
3
75511-78F00-000 PAD,MAIN FLOOR UPR FR,R2007-06-01~ |
75511-78F00-000 |
US $64.03 |
||
|
4
|
4
75521-78F00-000 PAD,MAIN FLOOR UPR FR,L2007-06-01~ |
75521-78F00-000 |
US $64.03 |
||
|
5
|
5
75530-82H00-000 PAD,MAIN FLOOR UPR RR,R2007-06-01~ |
75530-82H00-000 |
US $73.97 |
||
|
6
|
6
75540-82H00-000 PAD,MAIN FLOOR UPR RR,L2007-06-01~ |
75540-82H00-000 |
US $73.97 |
||
|
7
|
7
72381-78F01-000 COVER,SPLASH,R2007-06-01~ |
72381-78F01-000 |
US $24.10 |
||
|
8
|
8
72382-78F01-000 COVER,SPLASH,L2007-06-01~ |
72382-78F01-000 |
US $24.10 |
||
|
9
|
9
09409-07332-000 CLIP2007-06-01~ |
09409-07332-000 |
from US $1.26 |
||
|
10
|
10
75431-73H01-000 CAP,FL DRAIN2007-06-01~ |
75431-73H01-000 |
US $2.94 |
||
|
11
|
11
75431-73H01-000 CAP,FL DRAINリヤ フロア; 2007-06-01~ |
75431-73H01-000 |
US $2.94 |
||
|
12
|
12
72999-67H00-000 CAP,OD:40XM,XG,XV; 2007-06-01~ |
72999-67H00-000 |
from US $4.32 |
||
|
13
|
13
09250-10016-000 CAP(OD:16.2)2007-06-01~ |
09250-10016-000 |
US $9.90 |
||
|
14
|
14
77111-63J00-000 CAP2007-06-01~ |
77111-63J00-000 |
US $1.60 |
||
|
15
|
15
09250-16013-000 CAP(OD:25)2007-06-01~ |
09250-16013-000 |
US $11.80 |
||
|
16
|
16
09250-25007-000 CAP(OD:25.0)2007-06-01~ |
09250-25007-000 |
from US $0.97 |
||
|
17
|
17
09250-25008-000 CAP(OD:31)2007-06-01~ |
09250-25008-000 |
US $13.20 |
||
|
18
|
18
72395-82H00-000 COVER,FR LOWER X MBR2007-06-01~ |
72395-82H00-000 |
US $15.24 |
||
|
19
|
19
09409-07308-5PK CLIP(BLACK)2007-06-01~ |
09409-07308-5PK |
from US $0.95 |
||
|
20
|
20
77111-63J00-000 CAP2007-06-01~ |
77111-63J00-000 |
US $1.60 |
||
|
21
|
21
76470-70G01-000
シグナルアッシ,フレヤ(KARRIT)
2007-06-01~ |
76470-70G01-000 |
— | ||
| replacement | |||||
|
21
|
21
76470-72M00-000
New Genuine Part
2007-06-01~ |
76470-72M00-000 |
— | ||
