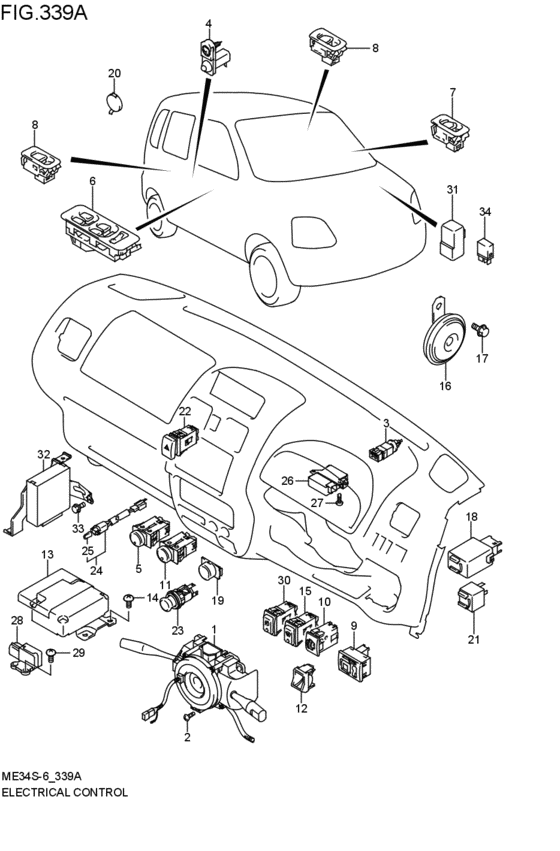

electrical control (2007-06-01~) Diagram Suzuki OTHER MODELS
- Year
- 2007 - 2011
- Sales region
- Japan
- drive
- 4WD
- grade
- XM
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37400-82H00-000 SWITCH ASSY,COMB2007-06-01~ |
37400-82H00-000 |
US $432.96 |
||
|
2
|
2
02112-0512A-000 SCREW2007-06-01~ |
02112-0512A-000 |
from US $0.80 |
||
|
3
|
3
37740-75H10-000
SWITCH ASSY,STOP LAMP
2007-06-01~ |
37740-75H10-000 |
— | ||
| replacements | |||||
|
3
|
3
37741-75H10-000 Switch Assy,stop Lamp2007-06-01~ |
37741-75H10-000 |
US $17.49 |
||
|
3
|
3
37742-75H10-000 Bush,stop Lamp Sw2007-06-01~ |
37742-75H10-000 |
US $4.64 |
||
|
4
|
4
37670-76G00-000 SWITCH ASSY,DOOR2007-06-01~ |
37670-76G00-000 |
US $29.60 |
||
|
5
|
5
37860-83H10-000
スイッチアッシ,リヤデフォッガ/ミラーヒータ
4WD; 2007-06-01~ |
37860-83H10-000 |
— | ||
|
6
|
6
37990-84F20-ZFW
スイッチアッシ,パワーウィンドマスタ(イエロー)
XM; 2007-06-01~ |
37990-84F20-ZFW |
— | ||
|
7
|
7
37995-75F00-ZFW
スイッチアッシ,パワーウィンドサブ(イエロー)
サブ スイツチ; XM; 2007-06-01~ |
37995-75F00-ZFW |
— | ||
|
8
|
8
37995-75F00-ZFW
スイッチアッシ,パワーウィンドサブ(イエロー)
リヤ スイツチ; XM; 2007-06-01~ |
37995-75F00-ZFW |
— | ||
|
9
|
9
37950-75F10-000 SWITCH ASSY,MIRROR2007-06-01~ |
37950-75F10-000 |
US $41.95 |
||
|
10
|
10
35180-81J10-000 SWITCH ASSY,HEADLAMP LEVELING2007-06-01~ |
35180-81J10-000 |
US $61.46 |
||
|
11
|
11
37850-83H00-000
スイッチアッシ,シートヒータ
(XM,XV,XG,XMA):4WD; 2007-06-01~ |
37850-83H00-000 |
— | ||
|
13
|
13
38910-78F01-000 CONTROLLER ASSY,A/B2007-06-01~ |
38910-78F01-000 |
US $813.12 |
||
|
14
|
14
09115-06004-000 BOLT(6X16)2007-06-01~ |
09115-06004-000 |
US $12.50 |
||
|
15
|
15
37810-81J90-000
スイッチアッシ,デアイサ
4WD; 2007-06-01~ |
37810-81J90-000 |
— | ||
|
16
|
16
38500-82H10-000
Horn assy
2007-06-01~ |
38500-82H10-000 |
— | ||
| replacement | |||||
|
16
|
16
38500-82H11-000 HORN ASSY2007-06-01~ |
38500-82H11-000 |
US $62.93 |
||
|
17
|
17
09115-08001-000 BOLT(8X18)2007-06-01~ |
09115-08001-000 |
US $15.10 |
||
|
18
|
18
37190-84F30-000 CONTROLLER,KEY LESS&D/L2007-06-01~ |
37190-84F30-000 |
US $252.08 |
||
|
19
|
19
37285-54G00-000 CAP,OPTION SW HOLE2007-06-01~ |
37285-54G00-000 |
US $2.13 |
||
|
20
|
20
39238-76F00-R8R CAP,SOCKET HOLE2007-06-01~ |
39238-76F00-R8R |
US $2.80 |
||
|
21
|
21
38610-84F00-000 RELAY,TURN SIGNAL&4WAY2007-06-01~ |
38610-84F00-000 |
US $48 |
||
|
22
|
22
37430-84G00-000 SWITCH ASSY,HAZARD WARNING2007-06-01~ |
37430-84G00-000 |
US $34.78 |
||
|
23
|
23
39410-82H00-000
Socket assy
2007-06-01~ |
39410-82H00-000 |
— | ||
| replacement | |||||
|
23
|
23
39410-82H01-000 SOCKET ASSY2007-06-01~ |
39410-82H01-000 |
US $17.44 |
||
|
24
|
24
36550-60E00-000 LAMP ASSY,ASHTRAY ILLUM2007-06-01~ |
36550-60E00-000 |
US $21.90 |
||
|
25
|
25
09471-12091-000 BULB(12V1.4W G30)2007-06-01~ |
09471-12091-000 |
US $28 |
||
|
26
|
26
38720-70H02-000 CONTROLLER ASSY,EPS2007-06-01~ |
38720-70H02-000 |
US $1,616 |
||
|
27
|
27
02142-0516B-000 SCREW2007-06-01~ |
02142-0516B-000 |
from US $0.80 |
||
|
28
|
28
33945-82C10-000 SENSOR ASSY,G4WD; 2007-06-01~ |
33945-82C10-000 |
US $283.36 |
||
|
29
|
29
09132-06010-000 SCREW(6X16)4WD; 2007-06-01~ |
09132-06010-000 |
US $12.90 |
||
|
30
|
30
37270-81J10-000 SWITCH ASSY,FR FOG2007-06-01~ |
37270-81J10-000 |
US $50.05 |
||
|
31
|
31
38860-72G00-000 RELAY ASSYRelay, air con フオグ ランプ リレー; 2007-06-01~ |
38860-72G00-000 |
US $45.60 |
||
|
32
|
32
38880-78FQ1-000
コントローラアッシ,AT
4WD; 2007-06-01~ |
38880-78FQ1-000 |
— | ||
|
33
|
33
02162-0612A-000 SCREWBolt, bracket 2007-06-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
34
|
34
38860-76F01-000 RELAY ASSYRelay, starting motor AT リレー; 2007-06-01~ |
38860-76F01-000 |
from US $28.80 |
||
