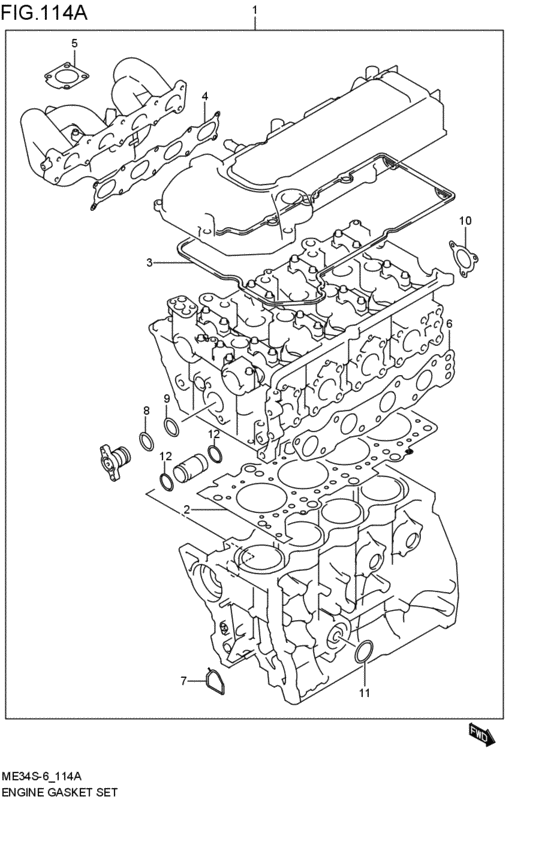

engine gasket set (2007-06-01~) Diagram Suzuki OTHER MODELS
- Year
- 2007 - 2011
- Sales region
- Japan
- drive
- 4WD
- grade
- XM
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11400-69843-000
ガスケットセット,エンジン
2007-06-01~ |
11400-69843-000 |
— | ||
| replacement | |||||
|
1
|
1
11400-69845-000 GASKET SET,ENGINE2007-06-01~ |
11400-69845-000 |
US $166.40 |
||
|
2
|
2
11141-69G03-000 GASKET,CYL HEAD2007-06-01~ |
11141-69G03-000 |
US $105.60 |
||
|
3
|
3
11189-54GE0-000 GASKET,CYL HEAD COVER2007-06-01~ |
11189-54GE0-000 |
US $31.16 |
||
|
4
|
4
13119-69G00-000 GASKET,INTK MANF2007-06-01~ |
13119-69G00-000 |
US $13.92 |
||
|
5
|
5
13421-54G10-000 GASKET,THROTTLE BODY2007-06-01~ |
13421-54G10-000 |
US $4.32 |
||
|
6
|
6
14140-69G01-000
ガスケット,エキゾーストマニホールド
2007-06-01~ |
14140-69G01-000 |
— | ||
| replacement | |||||
|
6
|
6
14140-69G02-000 GASKET,EXH MANF2007-06-01~ |
14140-69G02-000 |
US $25.60 |
||
|
7
|
7
16559-69GE0-000 GASKET,OCV2007-06-01~ |
16559-69GE0-000 |
US $4.71 |
||
|
8
|
8
17582-54D00-000 O-RING,NO.1 D:3.5 ID:30.72007-06-01~ |
17582-54D00-000 |
from US $2.24 |
||
|
9
|
9
17583-54D00-000 O-RING,NO.2 D:3.8 ID:27.72007-06-01~ |
17583-54D00-000 |
US $2.72 |
||
|
10
|
10
17699-69G00-000 GASKET,WATER OUTLET CAP2007-06-01~ |
17699-69G00-000 |
US $5.60 |
||
|
11
|
11
09280-62003-000 O RING(D:3.5,ID:60.7)2007-06-01~ |
09280-62003-000 |
US $5.47 |
||
|
12
|
12
09280-28008-000 O RING(D:3.5,ID:27.7)2007-06-01~ |
09280-28008-000 |
US $1.28 |
||
