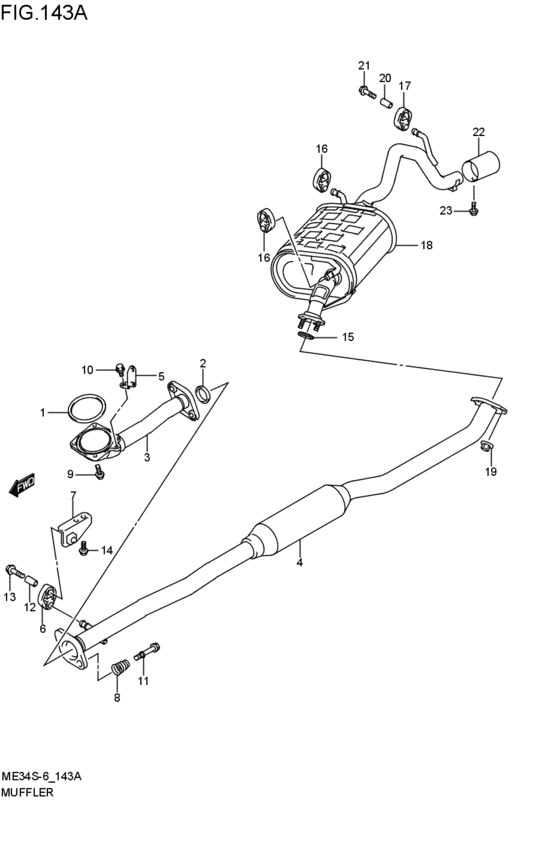

muffler (2007-06-01~) Diagram Suzuki OTHER MODELS
- Year
- 2007 - 2011
- Sales region
- Japan
- drive
- 4WD
- grade
- XM
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14181-70H00-000 GASKET,EXH MANF2007-06-01~ |
14181-70H00-000 |
from US $9.47 |
||
|
2
|
2
14183-76A00-000 RING,SEAL EXH PIPE2007-06-01~ |
14183-76A00-000 |
from US $11.57 |
||
|
3
|
3
14190-80GC0-000 PIPE,EXH NO.12007-06-01~ |
14190-80GC0-000 |
US $207.92 |
||
|
4
|
4
14250-82H00-000 PIPE,EXH NO.22007-06-01~ |
14250-82H00-000 |
US $314.64 |
||
|
5
|
5
14271-57K00-000 STIFFENER,EXH MANF2007-06-01~ |
14271-57K00-000 |
US $12.14 |
||
|
6
|
6
14281-75F00-000
Mounting
2007-06-01~ |
14281-75F00-000 |
— | ||
| replacement | |||||
|
6
|
6
14281-75F01-000 MOUNTING,MUF2007-06-01~ |
14281-75F01-000 |
from US $4.88 |
||
|
7
|
7
14284-75F00-000 BRACKET,EXH PIPE2007-06-01~ |
14284-75F00-000 |
US $7.88 |
||
|
8
|
8
14492-67D00-000 SPRING,EXH PIPE2007-06-01~ |
14492-67D00-000 |
from US $5.69 |
||
|
9
|
9
09103-10324-000 BOLT(10X20)2007-06-01~ |
09103-10324-000 |
from US $2.24 |
||
|
10
|
10
09103-10324-000 BOLT(10X20)2007-06-01~ |
09103-10324-000 |
from US $2.24 |
||
|
11
|
11
09119-10073-000 BOLT(10X65)2007-06-01~ |
09119-10073-000 |
from US $5.76 |
||
|
12
|
12
09180-08057-000
Spacer
2007-06-01~ |
09180-08057-000 |
— | ||
| replacement | |||||
|
12
|
12
09180-08227-000 SPACER(8.2X12.5X23.5)2007-06-01~ |
09180-08227-000 |
from US $1.92 |
||
|
13
|
13
01550-0835A-000 BOLT2007-06-01~ |
01550-0835A-000 |
from US $1.06 |
||
|
14
|
14
02162-0612A-000 SCREWBolt, bracket 2007-06-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
15
|
15
14182-60B00-000
GASKET,EXH PIPE
2007-06-01~ |
14182-60B00-000 |
— | ||
| replacement | |||||
|
15
|
15
14182-60B01-000 Gasket,exh Pipe2007-06-01~ |
14182-60B01-000 |
from US $3.34 |
||
|
16
|
16
14281-75F00-000
Mounting
2007-06-01~ |
14281-75F00-000 |
— | ||
| replacement | |||||
|
16
|
16
14281-75F01-000 MOUNTING,MUF2007-06-01~ |
14281-75F01-000 |
from US $4.88 |
||
|
17
|
17
14281-80G00-000 MOUNTING,MUF2007-06-01~ |
14281-80G00-000 |
US $12.64 |
||
|
18
|
18
14300-82H00-000 MUFFLER2007-06-01~ |
14300-82H00-000 |
US $312.80 |
||
|
19
|
19
09159-10049-000
Nut
2007-06-01~ |
09159-10049-000 |
— | ||
| replacement | |||||
|
19
|
19
09159-10102-000 NUT2007-06-01~ |
09159-10102-000 |
from US $0.97 |
||
|
20
|
20
09180-08057-000
Spacer
2007-06-01~ |
09180-08057-000 |
— | ||
| replacement | |||||
|
20
|
20
09180-08227-000 SPACER(8.2X12.5X23.5)2007-06-01~ |
09180-08227-000 |
from US $1.92 |
||
|
21
|
21
01551-0835A-000 Bolt2007-06-01~ |
01551-0835A-000 |
US $15.50 |
||
|
22
|
22
14630-78F01-000 PIPE,TAIL2007-06-01~ |
14630-78F01-000 |
US $53.73 |
||
|
23
|
23
02162-0612A-000 SCREWBolt, bracket 2007-06-01~ |
02162-0612A-000 |
from US $0.80 |
||
