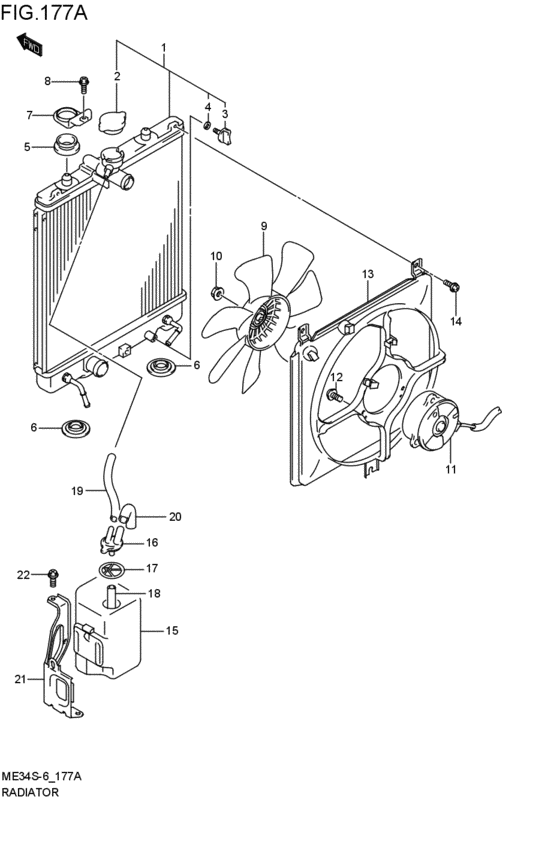

radiator (2007-06-01~) Diagram Suzuki OTHER MODELS
- Year
- 2007 - 2011
- Sales region
- Japan
- drive
- 4WD
- grade
- XM
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17700-79C01-000 RADIATOR ASSY2007-06-01~ |
17700-79C01-000 |
US $623.04 |
||
|
2
|
2
17920-75F00-000 CAP,RADIATOR2007-06-01~ |
17920-75F00-000 |
US $13.83 |
||
|
3
|
3
17751-61A00-000 PLUG,DRAIN2007-06-01~ |
17751-61A00-000 |
US $4.32 |
||
|
4
|
4
17759-72010-000 O-RING2007-06-01~ |
17759-72010-000 |
US $1.52 |
||
|
5
|
5
17879-75F00-000 MOUNT,RDTR SUPPORT UPR2007-06-01~ |
17879-75F00-000 |
US $6.88 |
||
|
6
|
6
17878-80G00-000 MOUNT,RDTR SUPPORT LWR2007-06-01~ |
17878-80G00-000 |
US $8.64 |
||
|
7
|
7
17861-73H00-000 BRACKET,RDTR SUPPORT2007-06-01~ |
17861-73H00-000 |
US $7.52 |
||
|
8
|
8
02162-0612A-000 SCREWBolt, bracket 2007-06-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
9
|
9
17111-80G00-000 FAN,COOLING2007-06-01~ |
17111-80G00-000 |
US $89.60 |
||
|
10
|
10
08316-2005A-000 NUT2007-06-01~ |
08316-2005A-000 |
from US $0.80 |
||
|
11
|
11
17120-80G00-000 MOTOR,COOLING FAN2007-06-01~ |
17120-80G00-000 |
US $376 |
||
|
12
|
12
02142-0510A-000 SCREWBolt, oil pump rotor plate 2007-06-01~ |
02142-0510A-000 |
from US $0.77 |
||
| replacement | |||||
|
12
|
12
02142-0510B-000 SCREWBolt 2007-06-01~ |
02142-0510B-000 |
from US $0.76 |
||
|
13
|
13
17760-80G01-000 SHROUD2007-06-01~ |
17760-80G01-000 |
US $125.60 |
||
|
14
|
14
02162-0616C-000 SCREW2007-06-01~ |
02162-0616C-000 |
US $0.80 |
||
| replacement | |||||
|
14
|
14
02162-0616B-000 SCREWBolt, adjust 2007-06-01~ |
02162-0616B-000 |
from US $0.80 |
||
|
15
|
15
17931-78F00-000 TANK,WATER RESERVOIR2007-06-01~ |
17931-78F00-000 |
US $44.84 |
||
|
16
|
16
17932-60G10-000 CAP,WATER RESERVE TANK2007-06-01~ |
17932-60G10-000 |
US $6.08 |
||
|
17
|
17
17933-60B00-000 RUBBER,WTR RSV TANK CAPRubber, tank cap 2007-06-01~ |
17933-60B00-000 |
US $2.13 |
||
|
18
|
18
09352-70111-600 HOSE(7X11X600)L:600>150; 2007-06-01~ |
09352-70111-600 |
US $6.84 |
||
|
19
|
19
09352-70121-600 HOSE(7X12.1X600)Hose (inmani to iac) L:600>160; 2007-06-01~ |
09352-70121-600 |
from US $5.93 |
||
|
20
|
20
17936-78F00-000 HOSE,RSVR TANK VENT2007-06-01~ |
17936-78F00-000 |
US $6.99 |
||
|
21
|
21
17937-78F01-000 BRACKET,WTR RSVR TANK2007-06-01~ |
17937-78F01-000 |
US $17.81 |
||
|
22
|
22
02162-0612A-000 SCREWBolt, bracket 2007-06-01~ |
02162-0612A-000 |
from US $0.80 |
||
