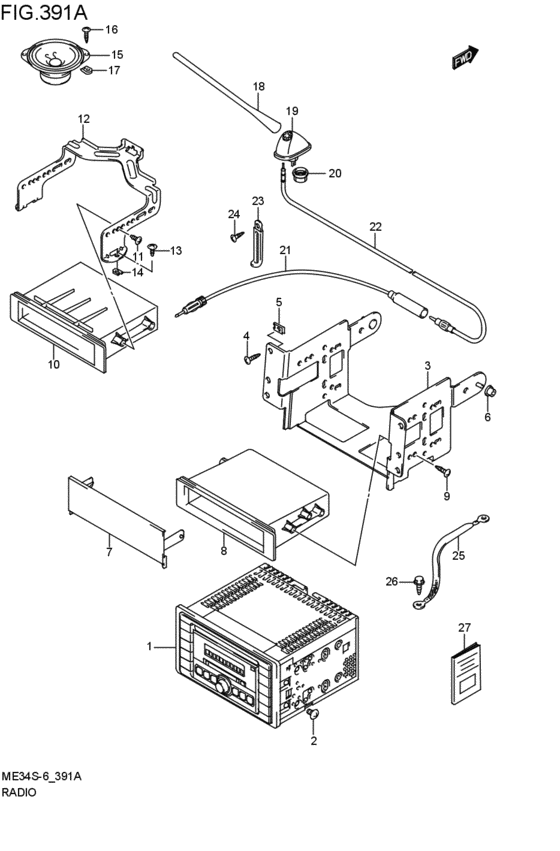

radio (2007-06-01~) Diagram Suzuki OTHER MODELS
- Year
- 2007 - 2011
- Sales region
- Japan
- drive
- 4WD
- grade
- XM
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
39101-72JA0-CZE
チューナアッシ(AM/FM,MD,CD)
XM; 2007-06-01~ |
39101-72JA0-CZE |
— | ||
|
2
|
2
02142-0508A-000 SCREWScrew, cap XM; 2007-06-01~ |
02142-0508A-000 |
from US $0.76 |
||
|
3
|
3
39321-82H00-000 BRACKET,TUNER2007-06-01~ |
39321-82H00-000 |
US $15.97 |
||
|
4
|
4
03541-0516A-000 SCREW2007-06-01~ |
03541-0516A-000 |
from US $0.68 |
||
|
5
|
5
09148-05045-000 NUT2007-06-01~ |
09148-05045-000 |
from US $0.81 |
||
|
6
|
6
34955-54G10-000 BUSH,RADIO BRKT2007-06-01~ |
34955-54G10-000 |
US $1.44 |
||
|
10
|
10
39182-82H01-000 POCKET,TUNER2007-06-01~ |
39182-82H01-000 |
US $21.71 |
||
|
11
|
11
03241-0512A-000 SCREW2007-06-01~ |
03241-0512A-000 |
from US $0.68 |
||
|
12
|
12
39321-82H10-000 BRACKET,INSTPNL UPPER POCKET2007-06-01~ |
39321-82H10-000 |
US $12.81 |
||
|
13
|
13
03541-0512A-000 SCREW2007-06-01~ |
03541-0512A-000 |
from US $0.65 |
||
|
14
|
14
09148-05045-000 NUT2007-06-01~ |
09148-05045-000 |
from US $0.81 |
||
|
15
|
15
39102-76F00-000
スピーカアッシ
2007-06-01~ |
39102-76F00-000 |
— | ||
|
16
|
16
03141-0512A-000 SCREWScrew, belt cooling duct 2007-06-01~ |
03141-0512A-000 |
from US $0.76 |
||
|
17
|
17
09148-05045-000 NUT2007-06-01~ |
09148-05045-000 |
from US $0.81 |
||
|
18
|
18
39251-78H00-000 ROD,ANTENNA2007-06-01~ |
39251-78H00-000 |
US $60.80 |
||
|
19
|
19
39253-78H01-000 BASE,ANTENNA2007-06-01~ |
39253-78H01-000 |
US $98.99 |
||
|
20
|
20
39269-78H00-000 NUT,ANTENNA2007-06-01~ |
39269-78H00-000 |
US $4.67 |
||
|
21
|
21
39271-76F00-000 FEEDER,ANT L 460XM; 2007-06-01~ |
39271-76F00-000 |
US $22.08 |
||
|
22
|
22
39271-78F01-000 FEEDER,ANT ROOF2007-06-01~ |
39271-78F01-000 |
US $37.17 |
||
|
23
|
23
09404-06433-000
CLAMP(L:80)
2007-06-01~ |
09404-06433-000 |
— | ||
| replacements | |||||
|
23
|
23
09404-06434-000
CLAMP(L:80 T:1.0)
2007-06-01~ |
09404-06434-000 |
— | ||
|
23
|
23
09404-06436-000 Clamp(L:80)2007-06-01~ |
09404-06436-000 |
from US $2.13 |
||
|
23
|
23
09404-06036-000 Clamp(L:80)2007-06-01~ |
09404-06036-000 |
from US $1.82 |
||
|
24
|
24
03541-0512A-000 SCREW2007-06-01~ |
03541-0512A-000 |
from US $0.65 |
||
|
25
|
25
39312-78F01-000 WIRE,NOISE SUPPR2007-06-01~ |
39312-78F01-000 |
US $5.67 |
||
|
26
|
26
09115-06005-000 BOLT(6X16)2007-06-01~ |
09115-06005-000 |
US $1.28 |
||
|
27
|
27
39103-72JA0-000
オーナーズマニュアル,チューナ
XM; 2007-06-01~ |
39103-72JA0-000 |
— | ||
