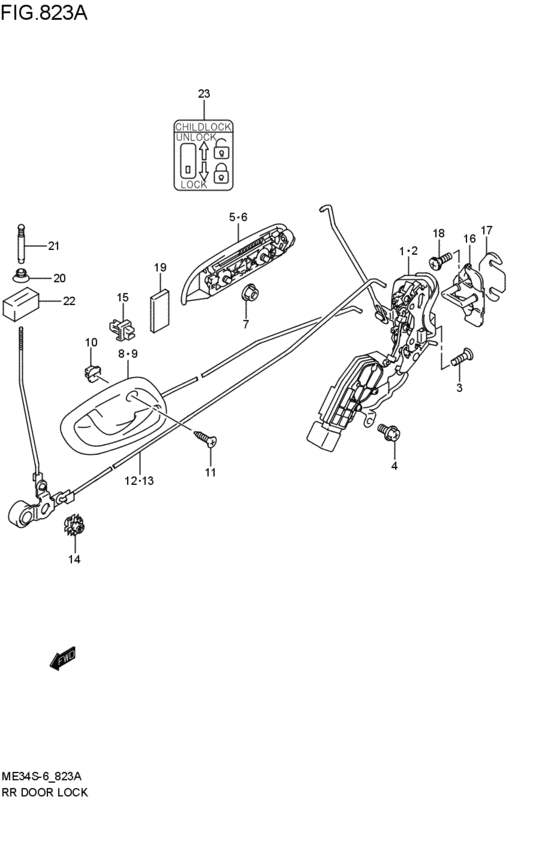

rear door lock (2007-06-01~) Diagram Suzuki OTHER MODELS
- Year
- 2007 - 2011
- Sales region
- Japan
- drive
- 4WD
- grade
- XM
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82301-84F00-000
ラッチアッシ,リヤドア,ライト
2007-06-01~ |
82301-84F00-000 |
— | ||
| replacement | |||||
|
1
|
1
82301-84F01-000 LATCH ASSY,RR DR,R2007-06-01~ |
82301-84F01-000 |
US $231.84 |
||
|
2
|
2
82302-84F00-000
ラッチアッシ,リヤドア,レフト
2007-06-01~ |
82302-84F00-000 |
— | ||
| replacement | |||||
|
2
|
2
82302-84F01-000 LATCH ASSY,RR DR,L2007-06-01~ |
82302-84F01-000 |
US $231.84 |
||
|
3
|
3
09137-06028-000 SCREW(6X18)2007-06-01~ |
09137-06028-000 |
US $14.40 |
||
|
4
|
4
02162-0612A-000 SCREWBolt, bracket 2007-06-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
5
|
5
82801-81A50-ZJ3
HANDLE,SIDE DR OUT,R
XM,XV,XG; 2007-06-01~ |
82801-81A50-ZJ3 |
— | ||
| replacements | |||||
|
5
|
5
82801-81A51-ZJ3
HANDLE,SIDE DR OUT,R
XM,XV,XG; 2007-06-01~ |
82801-81A51-ZJ3 |
— | ||
|
5
|
5
82801-81A52-ZJ3
HANDLE,SIDE DR OUT,R
XM,XV,XG; 2007-06-01~ |
82801-81A52-ZJ3 |
— | ||
|
5
|
5
82801-81A53-ZJ3 Handle Assy,fr Dr Out,rXM,XV,XG; 2007-06-01~ |
82801-81A53-ZJ3 |
US $48.94 |
||
|
5
|
5
82801-81A50-Z2S
HANDLE,SIDE DR OUT,R(SILVER)
XM; 2007-06-01~ |
82801-81A50-Z2S |
— | ||
| replacements | |||||
|
5
|
5
82801-81A51-Z2S
HANDLE,SIDE DR OUT,R
XM; 2007-06-01~ |
82801-81A51-Z2S |
— | ||
|
5
|
5
82801-81A52-Z2S
HANDLE,SIDE DR OUT,R
XM; 2007-06-01~ |
82801-81A52-Z2S |
— | ||
|
5
|
5
82801-81A53-Z2S Handle Assy,fr Dr Out,rXM; 2007-06-01~ |
82801-81A53-Z2S |
US $48.94 |
||
|
5
|
5
82801-81A50-Z7T
HANDLE,SIDE DR OUT,RH
XM,XV,XG,XMA; 2007-06-01~ |
82801-81A50-Z7T |
— | ||
| replacements | |||||
|
5
|
5
82801-81A51-Z7T
HANDLE,SIDE DR OUT,R
XM,XV,XG,XMA; 2007-06-01~ |
82801-81A51-Z7T |
— | ||
|
5
|
5
82801-81A52-Z7T
HANDLE,SIDE DR OUT,R
XM,XV,XG,XMA; 2007-06-01~ |
82801-81A52-Z7T |
— | ||
|
5
|
5
82801-81A53-Z7T HANDLE ASSY,SIDE DOOR OUT,RHXM,XV,XG,XMA; 2007-06-01~ |
82801-81A53-Z7T |
US $48.94 |
||
|
5
|
5
82801-81A50-Z9T
HANDLE,SIDE DR OUT,R
XM,XMA; 2007-06-01~ |
82801-81A50-Z9T |
— | ||
| replacements | |||||
|
5
|
5
82801-81A51-Z9T
HANDLE,SIDE DR OUT,R
XM,XMA; 2007-06-01~ |
82801-81A51-Z9T |
— | ||
|
5
|
5
82801-81A52-Z9T
HANDLE,SIDE DR OUT,R
XM,XMA; 2007-06-01~ |
82801-81A52-Z9T |
— | ||
|
5
|
5
82801-81A53-Z9T Handle Assy,fr Dr Out,rXM,XMA; 2007-06-01~ |
82801-81A53-Z9T |
US $54.10 |
||
|
6
|
6
82802-81A50-ZJ3
HANDLE,SIDE DR OUT,L
XM,XV,XG; 2007-06-01~ |
82802-81A50-ZJ3 |
— | ||
| replacements | |||||
|
6
|
6
82802-81A51-ZJ3
HANDLE,SIDE DR OUT,L
XM,XV,XG; 2007-06-01~ |
82802-81A51-ZJ3 |
— | ||
|
6
|
6
82802-81A52-ZJ3
HANDLE,SIDE DR OUT,L
XM,XV,XG; 2007-06-01~ |
82802-81A52-ZJ3 |
— | ||
|
6
|
6
82802-81A53-ZJ3 Handle Assy,fr Dr Out,lXM,XV,XG; 2007-06-01~ |
82802-81A53-ZJ3 |
US $48.94 |
||
|
6
|
6
82802-81A50-Z2S
HANDLE,SIDE DR OUT,L(SILVER)
XM; 2007-06-01~ |
82802-81A50-Z2S |
— | ||
| replacements | |||||
|
6
|
6
82802-81A51-Z2S
HANDLE,SIDE DR OUT,L
XM; 2007-06-01~ |
82802-81A51-Z2S |
— | ||
|
6
|
6
82802-81A52-Z2S
HANDLE,SIDE DR OUT,L
XM; 2007-06-01~ |
82802-81A52-Z2S |
— | ||
|
6
|
6
82802-81A53-Z2S Handle Assy,fr Dr Out,lXM; 2007-06-01~ |
82802-81A53-Z2S |
US $48.94 |
||
|
6
|
6
82802-81A50-Z7T
HANDLE,SIDE DR OUT,L
XM,XV,XG,XMA; 2007-06-01~ |
82802-81A50-Z7T |
— | ||
| replacements | |||||
|
6
|
6
82802-81A51-Z7T
HANDLE,SIDE DR OUT,L
XM,XV,XG,XMA; 2007-06-01~ |
82802-81A51-Z7T |
— | ||
|
6
|
6
82802-81A52-Z7T
HANDLE,SIDE DR OUT,L
XM,XV,XG,XMA; 2007-06-01~ |
82802-81A52-Z7T |
— | ||
|
6
|
6
82802-81A53-Z7T Handle Assy,fr Dr Out,lXM,XV,XG,XMA; 2007-06-01~ |
82802-81A53-Z7T |
US $48.94 |
||
|
6
|
6
82802-81A50-Z9T
HANDLE,SIDE DR OUT,L
XM,XMA; 2007-06-01~ |
82802-81A50-Z9T |
— | ||
| replacement | |||||
|
6
|
6
82802-81A52-Z9T HANDLE,SIDE DR OUT,LXM,XMA; 2007-06-01~ |
82802-81A52-Z9T |
US $54.10 |
||
|
7
|
7
08316-1006A-000 NUT2007-06-01~ |
08316-1006A-000 |
from US $0.80 |
||
|
8
|
8
83103-76F00-R8R
HANDLE,RR DR INSIDE,R(BROWN)
XM,XV; 2007-06-01~ |
83103-76F00-R8R |
— | ||
| replacement | |||||
|
8
|
8
83103-76F01-R8R HANDLE,RR DR INSIDE,RXM,XV; 2007-06-01~ |
83103-76F01-R8R |
US $28.15 |
||
|
9
|
9
83104-76F00-R8R
HANDLE,RR DR INSIDE,L(BROWN)
XM,XV; 2007-06-01~ |
83104-76F00-R8R |
— | ||
| replacement | |||||
|
9
|
9
83104-76F01-R8R HANDLE,RR DR INSIDE,LXM,XV; 2007-06-01~ |
83104-76F01-R8R |
US $28.15 |
||
|
10
|
10
09148-05031-000 NUT2007-06-01~ |
09148-05031-000 |
US $1.28 |
||
|
11
|
11
03521-0516B-000 SCREW2007-06-01~ |
03521-0516B-000 |
US $7.70 |
||
|
12
|
12
83270-76F00-000 ROD,RR DOOR INSIDE LOCK,R2007-06-01~ |
83270-76F00-000 |
US $17.96 |
||
|
13
|
13
83280-76F00-000 ROD,RR DOOR INSIDE LOCK,L2007-06-01~ |
83280-76F00-000 |
US $17.96 |
||
|
14
|
14
83261-56B00-000 PIN,FR DOOR INSIDE LOCK ROD2007-06-01~ |
83261-56B00-000 |
US $2.65 |
||
|
15
|
15
83271-60D00-000 CLIP2007-06-01~ |
83271-60D00-000 |
US $2.47 |
||
|
16
|
16
82610-75F00-000 STRIKER,DOOR LATCH2007-06-01~ |
82610-75F00-000 |
US $13.62 |
||
|
17
|
17
78199-78000-000 SPACER,DOOR LOCK STRIKER2007-06-01~ |
78199-78000-000 |
US $1.60 |
||
|
18
|
18
09137-08004-000 SCREW(8X18)2007-06-01~ |
09137-08004-000 |
from US $0.90 |
||
| replacement | |||||
|
18
|
18
09137-08011-000 SCREW(8X18)2007-06-01~ |
09137-08011-000 |
US $1.44 |
||
|
19
|
19
77591-75000-000 PAD2007-06-01~ |
77591-75000-000 |
US $2.28 |
||
|
20
|
20
82991-76G00-P4Z CAP,DR INSIDE LOCK KNOB2007-06-01~ |
82991-76G00-P4Z |
US $1.60 |
||
|
21
|
21
82982-65D00-P4Z KNOB,DOOR INSIDE LOCK (GRAY)XM,XV; 2007-06-01~ |
82982-65D00-P4Z |
from US $2.24 |
||
|
22
|
22
83211-76G00-000 PAD SIDE DOOR INSIDE LOCK2007-06-01~ |
83211-76G00-000 |
US $1.88 |
||
|
23
|
23
86951-54G00-000 PLATE,CHILD LOCK CAUTION2007-06-01~ |
86951-54G00-000 |
from US $0.52 |
||
