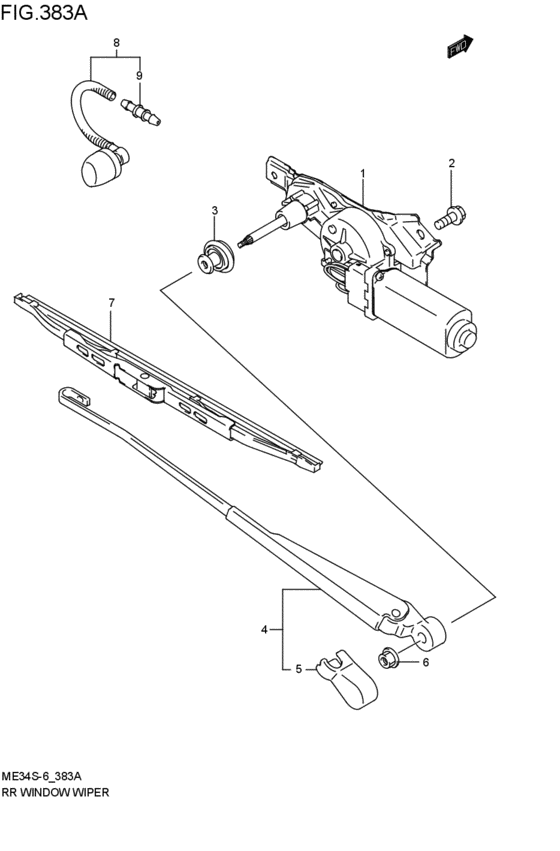

rear wind windshield wiper (2007-06-01~) Diagram Suzuki OTHER MODELS
- Year
- 2007 - 2011
- Sales region
- Japan
- drive
- 4WD
- grade
- XM
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38810-78F01-000 WIPER ASSY,RR WINDOW2007-06-01~ |
38810-78F01-000 |
US $338.56 |
||
|
2
|
2
02162-0612A-000 SCREWBolt, bracket 2007-06-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
3
|
3
38274-81A00-000 CAP,WIPER PIVOT2007-06-01~ |
38274-81A00-000 |
US $4.32 |
||
|
4
|
4
38821-78F00-000 ARM ASSY,RR WIPER2007-06-01~ |
38821-78F00-000 |
US $41.95 |
||
|
5
|
5
38315-78400-000 COVER,ARM HEAD2007-06-01~ |
38315-78400-000 |
US $5.62 |
||
|
6
|
6
08316-1006A-000 NUT2007-06-01~ |
08316-1006A-000 |
from US $0.80 |
||
|
7
|
7
38340-78F20-000 BLADE ASSY,RR WIPER2007-06-01~ |
38340-78F20-000 |
US $17.30 |
||
|
8
|
8
38840-70B10-000
Nozzle assy, rear washer
2007-06-01~ |
38840-70B10-000 |
— | ||
| replacement | |||||
|
8
|
8
38840-70B11-000 NOZZLE ASSY,RR WASHER2007-06-01~ |
38840-70B11-000 |
US $11.19 |
||
|
9
|
9
38496-61A00-000 VALVE,CHECK2007-06-01~ |
38496-61A00-000 |
US $2.08 |
||
