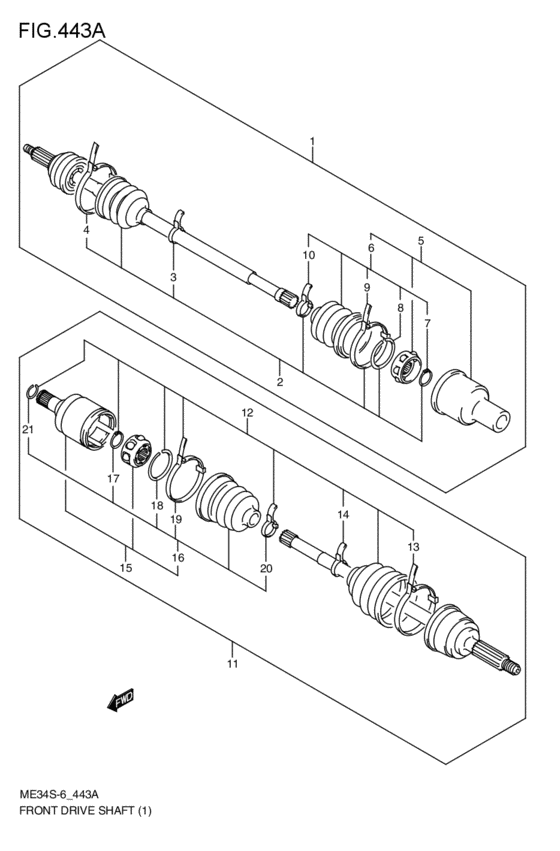

front-drive shaft (2WD; 2007-06-01~) Diagram Suzuki OTHER MODELS
- Year
- 2007 - 2011
- Sales region
- Japan
- drive
- 2WD
- grade
- XV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44101-80G12-000
シャフトアッシ,フロントドライブライト
2WD; 2007-06-01~ |
44101-80G12-000 |
— | ||
| replacement | |||||
|
1
|
1
44101-80G14-000 SHAFT ASSY,FRONT DRIVE,RH2WD; 2007-06-01~ |
44101-80G14-000 |
US $1,664 |
||
|
2
|
2
44118-60G01-000
BOOT SET,WHEEL SIDE
2WD; 2007-06-01~ |
44118-60G01-000 |
— | ||
| replacement | |||||
|
2
|
2
44118-80G11-000 BOOT SET,WHEEL SIDE2WD; 2007-06-01~ |
44118-80G11-000 |
US $99.36 |
||
|
3
|
3
44124-86011-000 BAND,BOOT2WD; 2007-06-01~ |
44124-86011-000 |
US $6.81 |
||
|
4
|
4
44122-86010-000 BAND,BOOTClamp, differential side outer boot 2WD; 2007-06-01~ |
44122-86010-000 |
from US $9.02 |
||
|
5
|
5
44117-80G31-000
Joint assy,diff side rh
2WD; 2007-06-01~ |
44117-80G31-000 |
— | ||
| replacement | |||||
|
5
|
5
44117-80G41-000 JOINT ASSY,FR DRIVE2WD; 2007-06-01~ |
44117-80G41-000 |
US $393.76 |
||
|
6
|
6
44119-75F60-000
BOOT SET,DIFF SIDE
2WD; 2007-06-01~ |
44119-75F60-000 |
— | ||
| replacement | |||||
|
6
|
6
44119-75F61-000 BOOT SET,DIFF SIDE2WD; 2007-06-01~ |
44119-75F61-000 |
US $69.92 |
||
|
7
|
7
44111-78010-000 RING,SNAP2WD; 2007-06-01~ |
44111-78010-000 |
US $2.80 |
||
|
8
|
8
44112-78010-000 CIRCLIP2WD; 2007-06-01~ |
44112-78010-000 |
from US $5.26 |
||
|
9
|
9
44122-86010-000 BAND,BOOTClamp, differential side outer boot 2WD; 2007-06-01~ |
44122-86010-000 |
from US $9.02 |
||
|
10
|
10
44124-86011-000 BAND,BOOT2WD; 2007-06-01~ |
44124-86011-000 |
US $6.81 |
||
|
11
|
11
44102-79C02-000
シャフトアッシ,フロントドライブレフト
2WD; 2007-06-01~ |
44102-79C02-000 |
— | ||
| replacement | |||||
|
11
|
11
44102-79C04-000 SHAFT ASSY,FRONT DRIVE,LH2WD; 2007-06-01~ |
44102-79C04-000 |
US $1,499.20 |
||
|
12
|
12
44118-79C01-000
Boot set,wheel side
2WD; 2007-06-01~ |
44118-79C01-000 |
— | ||
| replacement | |||||
|
12
|
12
44118-79C03-000 BOOT SET,WHEEL SIDE2WD; 2007-06-01~ |
44118-79C03-000 |
US $89.06 |
||
|
13
|
13
44122-86010-000 BAND,BOOTClamp, differential side outer boot 2WD; 2007-06-01~ |
44122-86010-000 |
from US $9.02 |
||
|
14
|
14
44124-86011-000 BAND,BOOT2WD; 2007-06-01~ |
44124-86011-000 |
US $6.81 |
||
|
15
|
15
44117-79C02-000
Joint assy,diff side
2WD; 2007-06-01~ |
44117-79C02-000 |
— | ||
| replacement | |||||
|
15
|
15
44117-79C04-000 JOINT ASSY,FR DRIVE2WD; 2007-06-01~ |
44117-79C04-000 |
US $393.76 |
||
|
16
|
16
44119-79C01-000
Boot set,diff side
2WD; 2007-06-01~ |
44119-79C01-000 |
— | ||
| replacement | |||||
|
16
|
16
44119-79C03-000 BOOT SET,DIFF SIDE2WD; 2007-06-01~ |
44119-79C03-000 |
US $69.92 |
||
|
17
|
17
44111-78010-000 RING,SNAP2WD; 2007-06-01~ |
44111-78010-000 |
US $2.80 |
||
|
18
|
18
44112-78010-000 CIRCLIP2WD; 2007-06-01~ |
44112-78010-000 |
from US $5.26 |
||
|
19
|
19
44122-86010-000 BAND,BOOTClamp, differential side outer boot 2WD; 2007-06-01~ |
44122-86010-000 |
from US $9.02 |
||
|
20
|
20
44124-86011-000 BAND,BOOT2WD; 2007-06-01~ |
44124-86011-000 |
US $6.81 |
||
|
21
|
21
44111-55G00-000 RING,SNAP2WD; 2007-06-01~ |
44111-55G00-000 |
US $3.09 |
||
