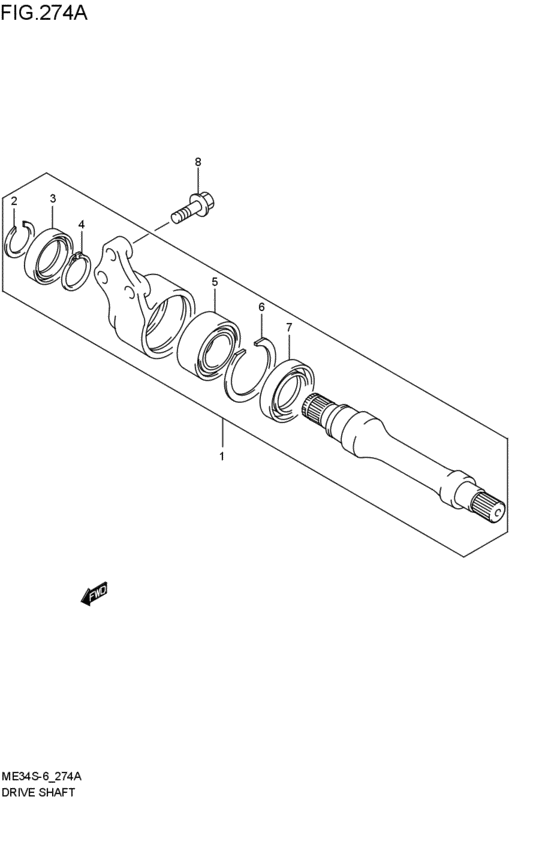

intermediate shaft (2WD; 2007-06-01~) Diagram Suzuki OTHER MODELS
- Year
- 2007 - 2011
- Sales region
- Japan
- drive
- 2WD
- grade
- XV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27800-79C10-000
シャフトアッシ,ドライブインタメジェート
2WD; 2007-06-01~ |
27800-79C10-000 |
— | ||
| replacement | |||||
|
1
|
1
27800-79C11-000 SHAFT ASSY,DRIVE INTERMEDIATE2WD; 2007-06-01~ |
27800-79C11-000 |
from US $482.24 |
||
|
2
|
2
09381-22014-000 RING,SNAP2WD; 2008-06-01~ |
09381-22014-000 |
US $1.07 |
||
|
2
|
2
09381-24001-000 RING,SNAPRing (od:24,d:1.6) 2WD; 2007-06-01~2008-05-01 |
09381-24001-000 |
from US $1.60 |
||
|
3
|
3
27841-63B00-000 SEAL,DRIVE INTERMEDIATE,R2WD; 2007-06-01~ |
27841-63B00-000 |
from US $10.55 |
||
|
4
|
4
08331-3136A-000 CIRCLIP2WD; 2007-06-01~ |
08331-3136A-000 |
US $1.92 |
||
|
5
|
5
27831-63B20-000 BEARING,DRIVE INTERMEDIATE2WD; 2007-06-01~ |
27831-63B20-000 |
US $109.60 |
||
|
6
|
6
27851-63B00-000 CIRCLIP,INTERMEDIATE BRG2WD; 2007-06-01~ |
27851-63B00-000 |
US $2.56 |
||
|
7
|
7
27842-63B00-000 SEAL,DRIVE INTERMEDIATE,L2WD; 2007-06-01~ |
27842-63B00-000 |
from US $11.36 |
||
|
8
|
8
01550-1040A-000 BOLT2WD; 2007-06-01~ |
01550-1040A-000 |
from US $1.12 |
||
