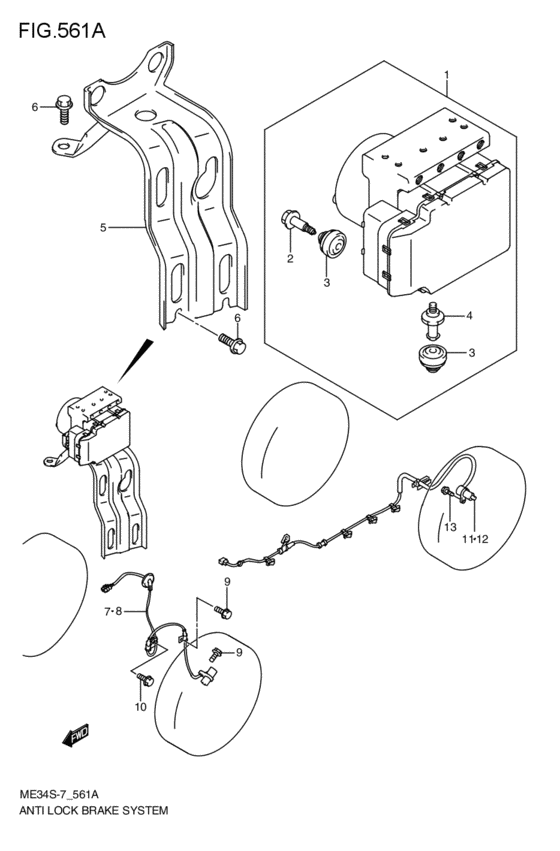

antilock brake system (2009-06-01~) Diagram Suzuki OTHER MODELS
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 2WD
- grade
- XV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
56100-78F00-000 ACTUATOR ASSY,ABS2WD; 2009-06-01~ |
56100-78F00-000 |
US $1,888.56 |
||
|
2
|
2
56111-75F00-000 BOLT,ACTUATOR MOUNT2009-06-01~ |
56111-75F00-000 |
US $4.11 |
||
|
3
|
3
56112-75F00-000 DAMPER,ACTUATOR MOUNT2009-06-01~ |
56112-75F00-000 |
US $3.20 |
||
|
4
|
4
56113-75F00-000
BOLT,ACTUATOR LWR MOUNT
2009-06-01~ |
56113-75F00-000 |
— | ||
|
5
|
5
56160-78F00-000
BRACKET,ACTUATOR
2009-06-01~ |
56160-78F00-000 |
— | ||
|
6
|
6
01550-0812A-000 BOLT2009-06-01~ |
01550-0812A-000 |
from US $0.91 |
||
|
7
|
7
56210-83E11-000
SENSOR,FR WHEEL,R
2009-06-01~ |
56210-83E11-000 |
— | ||
| replacement | |||||
|
7
|
7
56210-83E12-000 SENSOR,FR WHEEL,R2009-06-01~ |
56210-83E12-000 |
US $163.39 |
||
|
8
|
8
56220-83E11-000
SENSOR,FR WHEEL,L
2009-06-01~ |
56220-83E11-000 |
— | ||
| replacement | |||||
|
8
|
8
56220-83E12-000 SENSOR,FR WHEEL,L2009-06-01~ |
56220-83E12-000 |
US $163.39 |
||
|
9
|
9
02162-0616A-000 SCREW2009-06-01~ |
02162-0616A-000 |
from US $3.01 |
||
| replacement | |||||
|
9
|
9
02162-0616B-000 SCREWBolt, adjust 2009-06-01~ |
02162-0616B-000 |
from US $0.80 |
||
|
10
|
10
09113-06502-000 BOLT(6X12)2009-06-01~ |
09113-06502-000 |
US $11.40 |
||
|
11
|
11
56310-82H21-000
SENSOR,RR WHEEL,R
2WD; 2009-06-01~ |
56310-82H21-000 |
— | ||
| replacement | |||||
|
11
|
11
56310-82H22-000 SENSOR,RR WHEEL,R2WD; 2009-06-01~ |
56310-82H22-000 |
US $149.41 |
||
|
12
|
12
56320-82H21-000
SENSOR,RR WHEEL,L
2WD; 2009-06-01~ |
56320-82H21-000 |
— | ||
| replacement | |||||
|
12
|
12
56320-82H22-000 SENSOR,RR WHEEL,L2WD; 2009-06-01~ |
56320-82H22-000 |
US $149.41 |
||
|
13
|
13
01550-0612A-000 BOLT2009-06-01~ |
01550-0612A-000 |
from US $0.76 |
||
